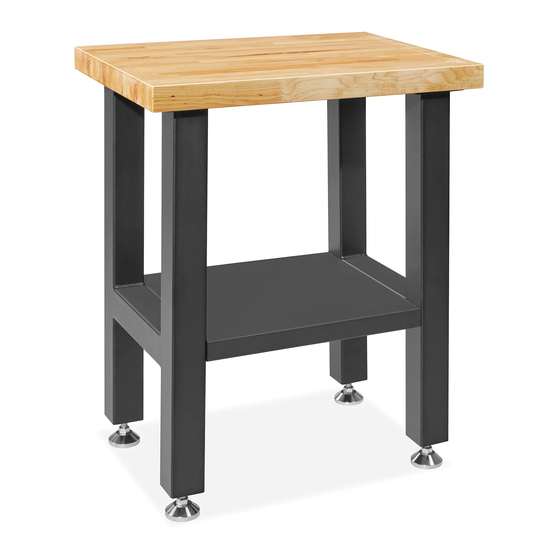

SHOP STANDS
TOOLS NEEDED
Drill
10 mm Wrench
Hardware Kit
Hex/Phillips
Wood Screw x 16
#
DESCRIPTION
1
Shelf
2
Leg
3
Leveling Foot
4
Caster
5
Tabletop
1.
Flip legs upside down and space apart to
accommodate bottom shelf. Ensure that threaded
holes in leg crossbars are facing each other.
(See Figure 1)
2. Flip bottom shelf upside down. Align holes in the
shelf sides to the threaded holes in the leg crossbars.
Attach shelf to leg crossbars with four hex bolts and
10 mm wrench. (See Figure 1)
PAGE 1 OF 6
1-800-295-5510
uline.com
OR
10 mm Drill Bit
Phillips Drill Bit
Hex Bolt x 4
QTY
1
2
4
4
1
ASSEMBLY
PARTS
2
4
3
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
5
1
1022 IH-10199
Figure 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-10199
Summary of Contents for U-Line H-10199
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. 1-800-295-5510 uline.com SHOP STANDS TOOLS NEEDED Drill 10 mm Wrench 10 mm Drill Bit Phillips Drill Bit PARTS Hardware Kit Hex/Phillips Hex Bolt x 4 Wood Screw x 16 DESCRIPTION Shelf Leveling Foot...
- Page 2 ASSEMBLY CONTINUED 3. Place tabletop on a smooth, non-marring surface Figure 2 with top side facing down. 4. Center leg assembly on tabletop. Attach using 16 wood screws and drill with 10 mm drill bit or Phillips drill bit. (See Figure 2) 5.
- Page 3 800-295-5510 uline.mx MESAS DE APOYO PARA TALLER HERRAMIENTAS NECESARIAS Taladro Llave de 10 mm Broca de 10 mm Broca de Cruz PARTES Kit de Tornillería 16 Tornillos para Madera 4 Pernos Hexagonales Hexagonales/de Cruz DESCRIPCIÓN CANT. Repisa Pata Pata Niveladora Rueda Cubierta ENSAMBLE...
- Page 4 CONTINUACIÓN DEL ENSAMBLE 3. Coloque la cubierta sobre una superficie lisa que Diagrama 2 no deje marcas, con el lado superior hacia abajo. 4. Centre el ensamble de las patas en la cubierta. Fíjelo usando 16 tornillos para madera y taladre utilizando una broca de 10 mm o broca de cruz.
- Page 5 π 1-800-295-5510 uline.ca SUPPORTS D'ATELIER OUTILS REQUIS Perceuse Clé de 10 mm Mèche de perceuse Mèche de perceuse de 10 mm cruciforme PIÈCES Matériel de fixation Vis à bois cruciforme/ Boulon hexagonal x 4 hexagonale x 16 DESCRIPTION QTÉ Tablette Pied Patte de nivellement Roulette...
- Page 6 MONTAGE SUITE 3. Placez la surface de table sur une surface lisse et Figure 2 non marquante, côté supérieur vers le bas. 4. Placez l'ensemble des pieds au centre de la surface de table. Fixez le tout à l'aide de 16 vis à bois et d'une perceuse munie d'une mèche de 10 mm ou d'une mèche cruciforme.
