U-Line H-1546 Manual

H-1546

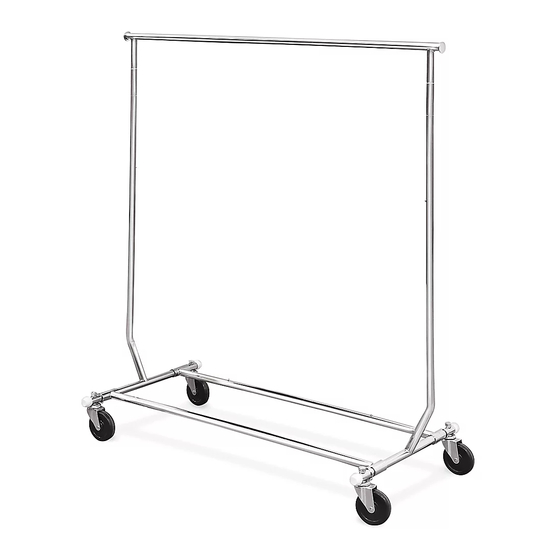

ROLLING CLOTHES
RACK

TO ASSEMBLE RACK

1. Place rack base on ground and fold up arms.
2. Pull arms outward until uprights are stretched into
complete vertical position; then, insert hang bar
into arms. (See Figure 1)
3. To increase height pull up extensions if needed.
NOTE: Hang bar can be lengthened by pulling
out ends of hang bar.
Figure 1
PAGE 1 OF 3
1-800-295-5510
uline.com
Rack Hang Bar x 1
Rack Base x 1

INSTRUCTIONS

Extensions

PARTS LIST

FOR EASY TRANSPORTATION AND STORAGE

NOTE: To attach clamps, first remove screws
from base.
1. Remove hang bar, push in extensions if applicable,
and fold down arms.
2. Attach clamps using locking washers and screws.
(See Figure 2)
3. Snap hang bar into clamps.
Figure 2
Para Español, vea página 2.
Pour le français, consulter la page 3.
Locking Washer x 2
Clamp x 2
Red Hardware Bag
0421 IH-1546
