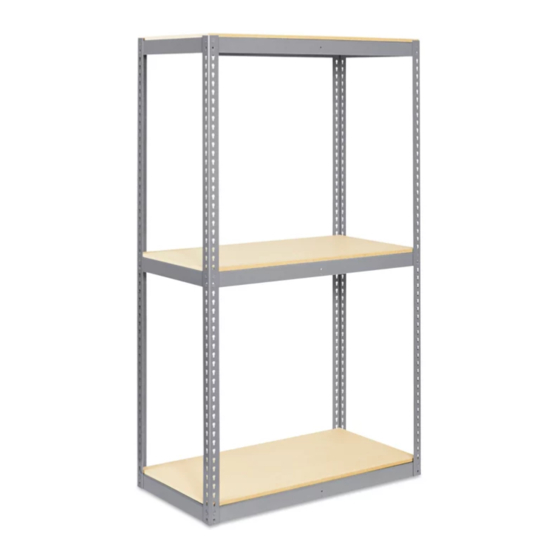

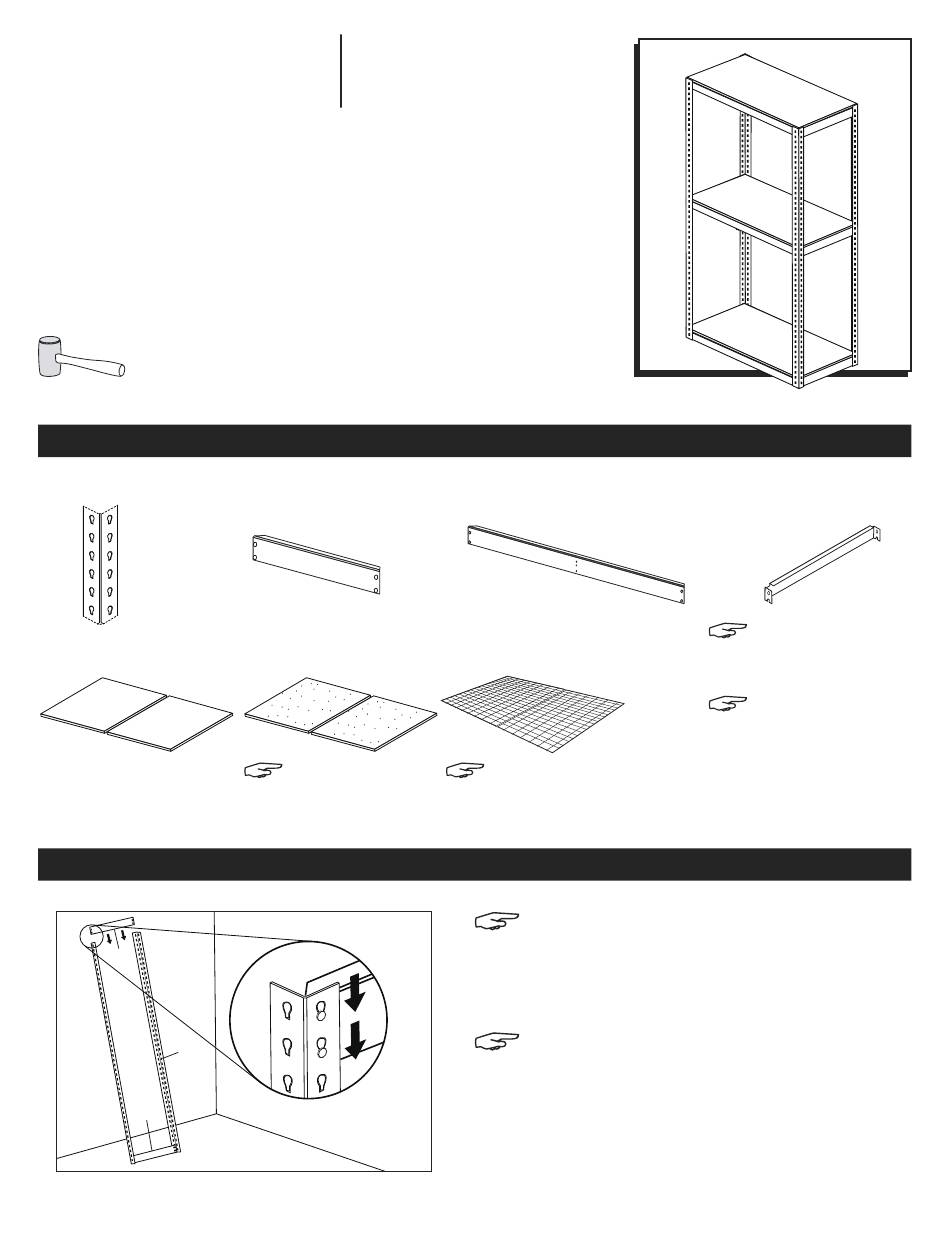

WIDE SPAN/LAMINATE
STORAGE RACKS
TOOL NEEDED
Rubber Mallet
Upright Post x 4 (A)
Laminate Board x 3 (E)
B
A
B
PAGE 1 OF 6
1-800-295-5510
uline.com
Side Support x 6 (B)
Particle Board x 3 (E)
NOTE: 96 x 36" and
96 x 48" (W x D) shelves
utilize two particle
boards per level (total
of six per shelving unit).
ASSEMBLY
Figure 1
PARTS
Front/Back Support x 6 (C)
Wire Decking x 3 (E)
NOTE: 96 x 24", 96 x 36"
and 96 x 48" (W x D)
shelves utilize two wire
decks per level (total of
six per shelving unit).
NOTE: Lean posts against a wall or assemble with
another person.
1. Connect two upright posts (A) by inserting a side
support piece (B) at the bottom and top of the posts.
(See Figure 1)
NOTE: Side supports should be positioned with
ledge on top.
2. Repeat step one for the other two upright posts (A).
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Center Support x 3
NOTE: 72" wide racks
utilize two shelf supports
per level (total of six per
shelving unit).
NOTE: 96" wide racks
utilize three shelf supports
per level (total of nine
per shelving unit).
0520 IH-1060
