Phoenix Smart
Thermometer
U s e r M a n u a l

Advertisement

loading
Need help?

Need help?

Do you have a question about the Phoenix Smart and is the answer not in the manual?

Questions and answers

Related Manuals for Inkbird Phoenix Smart

Summary of Contents for Inkbird Phoenix Smart

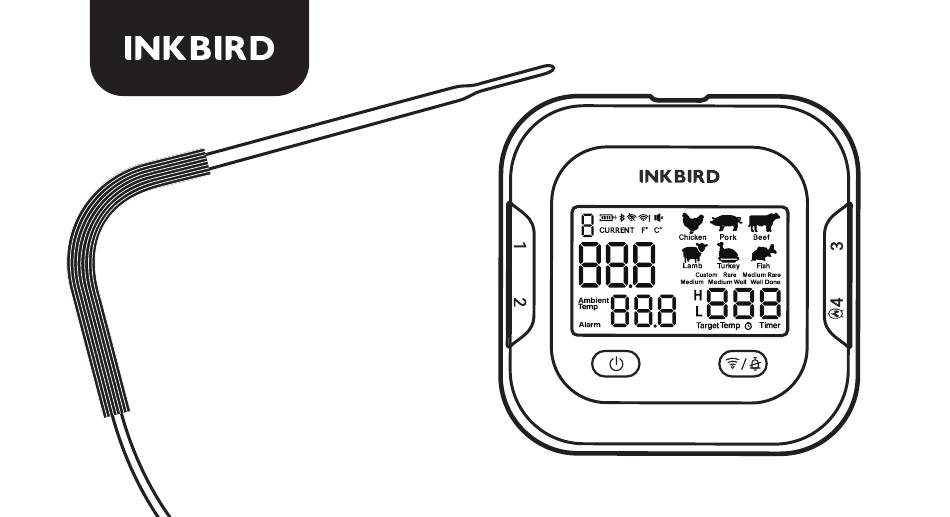

  • Page 1 Phoenix Smart Thermometer U s e r M a n u a l...

  • Page 3: Product Introduction

    Product Introduction Probe Sockets USB Type-C Charging Port LCD Screen Battery Level Detected Temperature of Probe 1/2/3/4 (3 meat probes (1/2/3) and 1 ambient probe (4))
  • Page 4 Mute Mode Alarm Mode Wi-Fi is disabled. The device has successfully connected to a Wi-Fi network. always on The device is connected to the router but cannot access the Internet. The device hasn’t connected to a Wi-Fi network. disappeared The device is in AP mode. flashing slowly The device is in SmartConfig mode.
  • Page 5 Initializing Wi-Fi or an error occurs. Bluetooth connected. always on Bluetooth is requesting a match. flashing disappeared Bluetooth disconnected. USB Power is connected. always on 100% of Battery level 80%~99% of Battery level 60%~79% of Battery level 40%~59% of Battery level...
  • Page 6 20%~39% of Battery level 0%~19% of Battery level flashing Alarm warning that the current temperature is higher than flashing the preset temperature Alarm warning that the current temperature is lower than flashing the preset temperature Probe temperature is higher than 300℃ or 572℉. Probe temperature is lower than -30℃...
  • Page 7 Product Introduction 1.2.1 Power/Backlight Button 1. Press and hold the button for 3 seconds to turn on/off the device. 2. Long press for more than10S to reset and restart. 1.2.2 Wi-Fi Connection/Bluetooth Connection/ Alarm Cancel Button After the device is powered on, if it has been connected to Wi-Fi before, it will automatically reconnect.
  • Page 8 switch between AP mode and SmartConfig Mode for Wi-Fi connection. The Wi-Fi icon flashes slowly in AP mode and flashes quickly in SmartConfig mode. 2. When the Wi-Fi icon stays on, press and hold the button for 3 seconds to reset the Wi-Fi connection.

  • Page 9: App Connection

    APP Connection Free App Download Please scan the QR code below or search ‘BBQgo pro’ at Google Play or APP Store to download the application, then install it on your phone. Please make sure that your phone meets the requirement below to install the app: Your iOS device must be running iOS 11 or later to download the app.
  • Page 10 Bluetooth Connection & Wi-Fi Connection This device supports Bluetooth connection and Wi-Fi connection. When you try to connect the device with your phone through the application, you can connect via Bluetooth as follow. 1. Click “Add device” on the app, select Bluetooth connection, then press the button when the Bluetooth icon flashes on the screen.

  • Page 11: Bluetooth Connection

    tion access to your location. If the application is not authorized, “Phoenix” is unable to connect with your phone. 2. Please place the device as close to your phone and the router as possible to start connecting. 2.2.1 Bluetooth Connection 1.
  • Page 12 via Wi-Fi. 2. If your phone is already connected to a network via Bluetooth or Wi-Fi, the device will connect automatically. 2.2.2 Wi-Fi Connection There are two ways to connect the device with your phone via Wi-Fi. SmartConfig Mode (Wi-Fi icon quickly flashes) AP Mode (Wi-Fi icon slowly flashes) Notes: 1.
  • Page 13 Connection in SmartConfig Mode 1. Turn on the device. 2. Connect your phone to a 2.4GHz Wi-Fi network. 3. Open the app and click “Add device” to select “Phoenix”. 4. Choose to connect via Wi-Fi. 5. Confirm that the Wi-Fi icon on the device flashes quickly, then select SmartConfig mode.
  • Page 14 Connection in AP Mode 1. Turn on the device. 2. Connect your phone to a 2.4GHz Wi-Fi network. 3. Open the app and click “Add device” to select “Phoenix”. 4. Choose to connect via Wi-Fi. 5. Confirm that the Wi-Fi icon on the device flashes slowly, then select AP mode. Note: If the Wi-Fi icon doesn't flash slowly, press the button and hold for 3 seconds to reset Wi-Fi or change the Wi-Fi connection mode.
  • Page 15 9. When the connection is complete, the application will display "Match success- ful!" and the Wi-Fi icon will remain lit. Notes: 1. After connecting the phone to Wi-Fi, the device will connect to the cloud server. As long as the phone has Internet access (mobile data or any Wi-Fi), the user can remotely monitor the device and view the data anytime and anywhere through the App.
  • Page 16 device will reconnect to the previous Wi-Fi network in the following two cases: 1) After 3 minutes of device connection failure, a new Wi-Fi network restarted. 2) After resetting, the device shuts down without Wi-Fi configuration. 3. Removing the device from the application will completely clear the network configuration information (Wi-Fi name and password), and the device will not reconnect to the Wi-Fi network in any previous case.
  • Page 17 weakened, and the device will not be able to connect to the network or your phone. 7. This device only supports 2.4GHz Wi-Fi networks, but it’s also compatible with Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, and Wi-Fi 6E routers only if they are enabled 2.4GHz Wi-Fi channels.

  • Page 18: Specifications

    Specifications Product Specs Battery Capacity: 2500mah/ 9.25WH USB Type-C Input Voltage: DC 5V Model: Phoenix USB Type-C Input Current: Standard 1A Size: 88 * 88 * 33 mm Operating Temperature: 0℃~55℃/32 Net Weight: 145 G ℉~131℉ Screen Size: 53 X 35mm Temperature Unit: ℃/℉...
  • Page 19 High/Low-Temperature Alarm: the device and the application will alarm simultaneously Alarm Mode: single trigger mode or repeated trigger mode. Alarm Interval: alarm interval can be set in repeated trigger mode. Probe Connector: jack 2.5mm mono plug 11mm Number Of Detection Channels: 4 System Requirements: android 7.1 or later, iOS 11 or later Short-Time Temperature Measurement Range: -30℃~+300℃/-22℉~+572℉...
  • Page 20 Wireless Specs Number of Wi-Fi channels: 1-14@2.4GHz (CH1-11 in US/Cana- Bluetooth: Bluetooth BLE5.0 da, CH1-13 in EU/China) Bluetooth RF: 2400-2483.5mhz Wi-Fi Data Rate: 802.11b: 1, 2, 5.5, Max. Output Power of Bluetooth: +5dBm 11Mbps Wireless Network: 2.4GHz IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 802.11b/g/ N (20MHz) 54Mbps Transmission: 802.11b: CCK, DQPSK,...

  • Page 21: Battery And Accessories

    Battery and Accessories Rechargeable Battery 1. “Phoenix” adopts a 2500mAh/9.25Wh lithium battery. 2. When the battery level shows 0%, the device will automatically shut down. The alarm function can only be enabled when the battery level is above 1%. 3. The device can be used for up to 30 hours when four temperature probes are inserted and the phone is connected to a Wi-Fi network.
  • Page 22 7. If Wi-Fi is off and Bluetooth is off and not connected, the device will be on standby for a long time. 8. Please use a standard USB TYPE-C 2.0/3.0 cable to charge the device. 9. Please charge the device with a 5V/1A rated USB adapter. At an ambient tempera- ture of 23°C, the battery can be charged to at least 40% in 60 minutes, 75% in 120 minutes and 98% in 180 minutes.
  • Page 23 11. Battery life may be affected by using equipment in an environment with temperatures above 40°C or below 0°C. 12. Storage Environment: -20℃~ + 45℃, 65% +/- 20% RH; Ideal storage environment: 0°C ~ + 30°C, 65% +/- 10% RH. 13.
  • Page 24 Accessory 1. USB Cable: USB TYPE-C Charging Cable Cable Length: 50cm (approx. 1.64ft) 2. Probe Length: 1.2m (approx. 3.937ft) When the probe is inserted into the device, the device will be turned on and display an instant temperature reading. Make sure the probe is inserted into the center of the food to get an accurate temperature reading.
  • Page 25 FAQ (frequently asked questions) What if your phone can't connect to Wi-Fi networks? 1. Make sure that your phone is not connected to a 5GHz Wi-Fi network. This device only supports 2.4GHz Wi-Fi networks. 2. Make sure you enter the correct Wi-Fi account and password. 3.
  • Page 26 connection mode if the Wi-Fi icon doesn’t flash. It will take 5 seconds to implement the action. The Wi-Fi icon will flash quickly in SmartConfig mode and slowly in AP mode. 8. VPN and network proxy servers are not used during connection processing, as they may cause connection failure.
  • Page 27 Why can't I charge the device? 1. Please use the included USB Type-C cable to charge the device. 2. Make sure the power supply works properly. Are these detection probes waterproof? 1. Yes, but do NOT immerse the probe in liquid, as it may cause incorrect detection.

  • Page 28: Fcc Requirement

    FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that...
  • Page 29 residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:...
  • Page 30 uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 32 INKBIRD TECH.C.L. support@inkbird.com Factory address: 6th Floor, Building 713, Pengji Liantang Industrial Area, NO.2 Pengxing Road, Luohu Disctrict, Shenzhen, China Office address: Room 1803, Guowei Building, NO.68 Guowei Road, Xianhu Community, Liantang, Luohu District, Shenzhen, China V 1.0...
  • Page 33 骑马钉 黑白印刷 尺寸：125*68mm...
