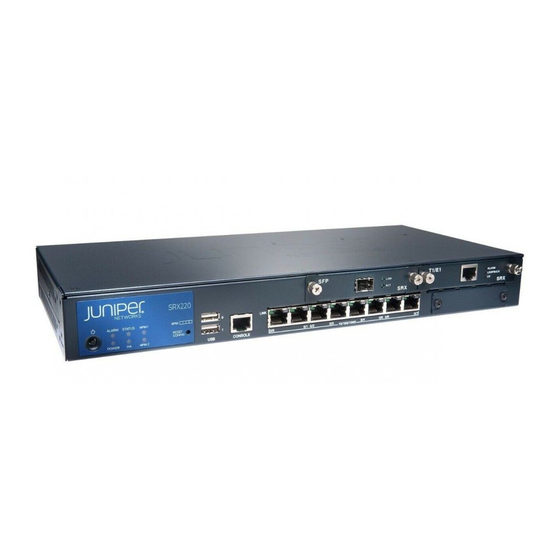

SRX220 Services Gateway Hardware

Published: 2012-03-01

Table of Contents

Chapters

Need help?

Do you have a question about the SRX220 and is the answer not in the manual?

Questions and answers

Summary of Contents for Juniper SRX220

Page 2 Products made or sold by Juniper Networks or components thereof might be covered by one or more of the following patents that are owned by or licensed to Juniper Networks: U.S. Patent Nos. 5,473,599, 5,905,725, 5,909,440, 6,192,051, 6,333,650, 6,359,479, 6,406,312, 6,429,706, 6,459,579, 6,493,347, 6,538,518, 6,538,899, 6,552,918, 6,567,902, 6,578,186, and 6,590,785.
Page 3: Table Of Contents
SRX220 Services Gateway Description ........3...
Page 4 SRX220 Services Gateway Electrical Safety Guidelines and Warnings ..65 SRX220 Services Gateway Agency Approvals ......66 SRX220 Services Gateway Compliance Statements for EMC Requirements .
Page 5 Resetting the SRX220 Services Gateway ......96 Resetting the SRX220 Services Gateway ....... . 97 Chapter 14 Autoinstallation .
Page 6 Juniper Networks Technical Assistance Center ..... . . 139 Juniper Networks Technical Assistance Center ......139 Chapter 22 Returning the Services Gateway .
Page 7 Figure 1: SRX220 Services Gateway ........
Page 8 Returning the Services Gateway ........141 Figure 21: Location of SRX220 Serial Number and Agency Labels ... . 143 viii Copyright ©...
Page 9 Introduction ............3 Table 3: SRX220 Services Gateway Models ....... 3 Table 4: SRX220 Services Gateway Hardware Features .
Page 10 Installing the Services Gateway ........83 Table 30: SRX220 Services Gateway Wall Installation Parts ....87 Chapter 13 Connecting, Grounding, and Powering On the Services Gateway .
Page 11 Returning the Services Gateway ........141 Table 43: Return Procedure for SRX220 Services Gateway ....141...
Page 13: About The Documentation
® To obtain the most current version of all Juniper Networks technical documentation, see the product documentation page on the Juniper Networks website at http://www.juniper.net/techpubs/ If the information in the latest release notes differs from the information in the documentation, follow the product Release Notes.
Page 14: Table 1: Notice Icons
The console port is labeled CONSOLE on routing platform components. < > (angle brackets) Enclose optional keywords or variables. < > stub default-metric metric Copyright © 2012, Juniper Networks, Inc.
Page 15: Documentation Feedback
Software release version (if applicable) Requesting Technical Support Technical product support is available through the Juniper Networks Technical Assistance Center (JTAC). If you are a customer with an active J-Care or JNASC support contract, Copyright © 2012, Juniper Networks, Inc.
Page 16: Self-Help Online Tools And Resources
7 days a week, 365 days a year. Self-Help Online Tools and Resources For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features: Find CSC offerings: http://www.juniper.net/customers/support/...
Page 17: Overview
PART 1 Overview Introduction on page 3 Hardware Components and Specifications on page 7 Power over Ethernet on page 19 Mini-Physical Interface Modules on page 23 Copyright © 2012, Juniper Networks, Inc.
Page 19: Introduction
SRX220 Services Gateway Models The SRX220 Services Gateway is available in two models, which are described in Table 3 on page Table 3: SRX220 Services Gateway Models...
Page 20: Accessing The Srx220 Services Gateway
The J-Web interface provides access to all Junos functionality and features. Junos OS command-line interface (CLI): Juniper Networks command shell that runs on top of a UNIX-based operating system kernel. The CLI is a straightforward command interface. On a single line, you type commands that are executed when you press the Enter key.
Page 21 The PoE LED is enabled only on the SRX220H-POE model of the SRX220 Services Gateway. On the SRX220H model, the PoE LED is disabled. For more details on the SRX220 Services Gateway software features and licenses, see Junos OS Administration Guide for Security Devices...
Page 23: Hardware Components And Specifications
SRX220 Services Gateway Power Supply on page 17 SRX220 Services Gateway Specifications The SRX220 Services Gateway chassis is a rigid sheet metal structure of 1 rack unit (U) height that houses all the other hardware components. Figure 1 on page 7 shows the SRX220 Services Gateway chassis for SRX220H and SRX220H-POE models.
Page 24: Table 5: Srx220 Services Gateway Specifications
SRX220 Services Gateway Description on page 3 Documentation SRX220 Services Gateway Front Panel and Back Panel Views on page 9 Monitoring the SRX220 Services Gateway Components Using LEDs on page 128 SRX220 Services Gateway Electrical Safety Guidelines and Warnings on page 65...
Page 25: Srx220 Services Gateway Front Panel And Back Panel Views
Chapter 2: Hardware Components and Specifications SRX220 Services Gateway Front Panel and Back Panel Views This topic contains views of the front panel and back panel of the SRX220 Services Gateway. This topic includes the following sections: SRX220 Services Gateway Front Panel on page 9...
Page 26: Srx220 Services Gateway Back Panel
SRX220 Services Gateway Hardware SRX220 Services Gateway Built-In Interfaces on page 14 SRX220 Services Gateway LEDs on page 11 SRX220 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 16 SRX220 Services Gateway Back Panel Figure 3 on page 10 shows the back panel of the SRX220 Services Gateway.
Page 27: Srx220 Services Gateway Leds
Chapter 2: Hardware Components and Specifications SRX220 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 16 SRX220 Services Gateway Cooling System on page 17 SRX220 Services Gateway Power Supply on page 17 SRX220 Services Gateway PoE Overview on page 19...
Page 28: Ethernet Port Leds
Off indicates that chassis clustering is not enabled. Ethernet Port LEDs On the SRX220 Services Gateway, each Gigabit Ethernet port has two LEDs. Figure 5 on page 13 shows the SRX220 Services Gateway Ethernet port LEDs. Copyright © 2012, Juniper Networks, Inc.
Page 29: Figure 5: Srx220 Services Gateway Ethernet Port Leds
The numbers in Figure 5 on page 13 correspond to the numbers in Table 9 on page Table 9 on page 13 describes the built-in Ethernet port LEDs. Table 9: SRX220 Services Gateway Built-In Ethernet Port LEDs Number Function Color State Description...
Page 30: Srx220 Services Gateway Built-In Interfaces
SRX220 Services Gateway Specifications on page 7 Documentation SRX220 Services Gateway Front Panel and Back Panel Views on page 9 SRX220 Services Gateway Built-In Interfaces on page 14 SRX220 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 16...
Page 31 Chapter 2: Hardware Components and Specifications Table 10: SRX220 Services Gateway Built-In Hardware Interfaces (continued) Interface Type Specifications Description Universal Serial Bus (USB) Two ports that: The USB ports can be used as follows: Function in full speed and high speed.
Page 32: Srx220 Services Gateway Boot Devices And Dual-Root Partitioning Scheme
Junos OS image located in the other root partition and remain fully functional. When the SRX220 Services Gateway powers up, it tries to boot the Junos OS from the default storage media. If the device fails to boot from the default storage media, it tries to boot from the alternate storage media.
Page 33: Srx220 Services Gateway Cooling System
SRX220 Services Gateway Power Supply on page 17 SRX220 Services Gateway Cooling System The cooling system for the SRX220 Services Gateway includes two fixed fans. The fans draw air through vents along the left and right sides of the chassis and exhaust the air through the back of the chassis.
Page 34 SRX220 Services Gateway Specifications on page 7 Documentation SRX220 Services Gateway Front Panel and Back Panel Views on page 9 SRX220 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 16 SRX220 Services Gateway Cooling System on page 17 Monitoring the SRX220 Services Gateway Power System on page 132 Copyright ©...
Page 35: Power Over Ethernet
The SRX220 Services Gateway with Power over Ethernet (SRX220H-POE) model of the SRX220 Services Gateway supports PoE on eight ports, which supply electric power over the same ports that are used to connect network devices. The PoE ports let you plug in devices that require both network connectivity and electric power, such as IP phones and wireless access points.
Page 36: Poe Classes And Power Ratings
Table 12 on page 20 lists the classes and their power ratings as specified by the IEEE 802.3af standard. Table 12: PoE Classes and Power Ratings on the SRX220 Services Gateway Class Maximum Power Level Output from the PoE Port 15.4 W...
Page 37: Configuring Poe Functionality On The Srx220 Services Gateway
SRX220 Services Gateway Mini-Physical Interface Modules on page 23 Configuring PoE Functionality on the SRX220 Services Gateway To enable the Power over Ethernet (PoE) feature support on your SRX220 Services Gateway, you must configure the services gateway. You can configure PoE using the Junos OS command-line interface (CLI).
Page 39: Mini-Physical Interface Modules
SRX220 Services Gateway Mini-Physical Interface Modules on page 23 SRX220 Services Gateway Mini-Physical Interface Modules The SRX220 Services Gateway has two slots for Mini-Physical Interface Modules (Mini-PIMs). A Mini-PIM is a network interface card that is installed on the services gateway to provide physical connections to a LAN or WAN.
Page 41: Planning
PART 2 Planning Site Preparation on page 27 Power Guidelines, Requirements, and Specifications on page 35 Interface Cable Specifications and Connector Pinouts on page 39 Copyright © 2012, Juniper Networks, Inc.
Page 43: Site Preparation
Site Preparation Site Preparation Checklist for the SRX220 Services Gateway on page 27 General Site Guidelines for Installing the SRX220 Services Gateway on page 29 SRX220 Services Gateway Cabinet Requirements on page 29 SRX220 Services Gateway Rack Requirements on page 30...
Page 44 Related SRX220 Services Gateway Specifications on page 7 Documentation General Site Guidelines for Installing the SRX220 Services Gateway on page 29 Installation Overview for the SRX220 Services Gateway on page 71 SRX220 Services Gateway Cabinet Requirements on page 29 SRX220 Services Gateway Rack Requirements on page 30...
Page 45: General Site Guidelines For Installing The Srx220 Services Gateway
Clearance Requirements for Airflow and Hardware Maintenance of the SRX220 Services Gateway on page 31 SRX220 Services Gateway Cabinet Requirements The SRX220 Services Gateway can be installed in a standard 800 mm (31.5 in.) or larger enclosed cabinet. Table 14 on page 29 provides the details on cabinet size, clearance, and airflow requirements.
Page 46: Srx220 Services Gateway Rack Requirements
A cabinet larger than the minimum size required provides better airflow and reduces the chance of overheating. Related General Site Guidelines for Installing the SRX220 Services Gateway on page 29 Documentation Site Preparation Checklist for the SRX220 Services Gateway on page 27...
Page 47: Clearance Requirements For Airflow And Hardware Maintenance Of The Srx220
Clearance Requirements for Airflow and Hardware Maintenance of the SRX220 Services Gateway When planning the installation site for the SRX220 Services Gateway, you need to allow sufficient clearance around the rack or cabinet where you are planning to install the device.
Page 48: Srx220 Services Gateway Power Specifications And Requirements
Related SRX220 Services Gateway Description on page 3 Documentation General Site Guidelines for Installing the SRX220 Services Gateway on page 29 Site Preparation Checklist for the SRX220 Services Gateway on page 27 SRX220 Services Gateway Cabinet Requirements on page 29...
Page 49: Table 17: Power Supply Electrical Specifications For The Srx220 Services
SRX220 Services Gateway Site Electrical Wiring Guidelines on page 35 Site Preparation Checklist for the SRX220 Services Gateway on page 27 SRX220 Services Gateway Grounding Specifications on page 37 Interface Cable and Wire Specifications for the SRX220 Services Gateway on page 39 Copyright © 2012, Juniper Networks, Inc.
Page 51: Power Guidelines, Requirements, And Specifications
CHAPTER 6 Power Guidelines, Requirements, and Specifications SRX220 Services Gateway Site Electrical Wiring Guidelines on page 35 SRX220 Services Gateway Power Specifications and Requirements on page 36 SRX220 Services Gateway Grounding Specifications on page 37 SRX220 Services Gateway Site Electrical Wiring Guidelines...
Page 52: Srx220 Services Gateway Power Specifications And Requirements
The shielding for the wiring must be grounded at both ends. Related General Site Guidelines for Installing the SRX220 Services Gateway on page 29 Documentation SRX220 Services Gateway Electrical and Power Requirements SRX220 Services Gateway Power Specifications and Requirements on page 32...
Page 53: Srx220 Services Gateway Grounding Specifications
Site Preparation Checklist for the SRX220 Services Gateway on page 27 SRX220 Services Gateway Grounding Specifications on page 37 Interface Cable and Wire Specifications for the SRX220 Services Gateway on page 39 SRX220 Services Gateway Grounding Specifications To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, the services gateway must be adequately grounded before power is connected.
Page 54 SRX220 Services Gateway Site Electrical Wiring Guidelines on page 35 Documentation SRX220 Services Gateway Power Specifications and Requirements on page 32 Grounding the SRX220 Services Gateway on page 93 Interface Cable and Wire Specifications for the SRX220 Services Gateway on page 39 Copyright © 2012, Juniper Networks, Inc.
Page 55: Interface Cable Specifications And Connector Pinouts
Interface Cable Specifications and Connector Pinouts Interface Cable and Wire Specifications for the SRX220 Services Gateway on page 39 RJ-45 Connector Pinouts for the SRX220 Services Gateway Ethernet Port on page 39 RJ-45 Connector Pinouts for the SRX220 Services Gateway Console Port on page 40...
Page 56: Rj-45 Connector Pinouts For The Srx220 Services Gateway Console Port
BI_DD+ BI_DD- Related Interface Cable and Wire Specifications for the SRX220 Services Gateway on page 39 Documentation RJ-45 Connector Pinouts for the SRX220 Services Gateway Console Port on page 40 SRX220 Services Gateway Front Panel and Back Panel Views on page 9...
Page 57: Interface Cable Specifications And Connector Pinouts
Data Set Ready Clear to Send Related Interface Cable and Wire Specifications for the SRX220 Services Gateway on page 39 Documentation RJ-45 Connector Pinouts for the SRX220 Services Gateway Ethernet Port on page 39 SRX220 Services Gateway Front Panel and Back Panel Views on page 9...
Page 61: Safety And Regulatory Compliance Information
SRX220 Services Gateway Fire Safety Requirements on page 55 SRX220 Services Gateway Safety Requirements, Warnings, and Guidelines on page 56 SRX220 Services Gateway Laser and LED Safety Guidelines and Warnings on page 56 SRX220 Services Gateway Maintenance and Operational Safety Guidelines and...
Page 62 De onderstaande richtlijnen worden verstrekt om uw veiligheid te verzekeren: De Juniper Networks services gateway moet in een stellage worden geïnstalleerd die aan een bouwsel is verankerd. Dit toestel dient onderaan in het rek gemonteerd te worden als het toestel het enige in het rek is.
Page 63: Safety And Regulatory Compliance Information
Les directives ci-dessous sont destinées à assurer la protection du personnel: Le rack sur lequel est monté le Juniper Networks services gateway doit être fixé à la structure du bâtiment. Si cette unité constitue la seule unité montée en casier, elle doit être placée dans le bas.
Page 64 Le seguenti direttive vengono fornite per garantire la sicurezza personale: Il Juniper Networks services gateway deve essere installato in un telaio, il quale deve essere fissato alla struttura dell'edificio. Questa unità deve venire montata sul fondo del supporto, se si tratta dell'unica unità...
Page 65 Om ställningen är försedd med stabiliseringsdon skall dessa monteras fast innan enheten installeras eller underhålls på ställningen. Related SRX220 Services Gateway Fire Safety Requirements on page 55 Documentation SRX220 Services Gateway Laser and LED Safety Guidelines and Warnings on page 56 Copyright © 2012, Juniper Networks, Inc.
Page 66: Srx220 Services Gateway Definition Of Safety Warning Levels
SRX220 Services Gateway Hardware SRX220 Services Gateway Definition of Safety Warning Levels This topic defines the following four levels of safety warnings used in Juniper Networks technical publications: NOTE: You might find this information helpful in a particular situation or might otherwise overlook it.
Page 67: Srx220 Services Gateway General Safety Guidelines And Warnings
SRX220 Services Gateway Fire Safety Requirements on page 55 SRX220 Services Gateway Installation Safety Guidelines and Warnings on page 45 SRX220 Services Gateway Laser and LED Safety Guidelines and Warnings on page 56 SRX220 Services Gateway Electrical Safety Guidelines and Warnings on page 65...
Page 68 Warnung Gerät nur von geschultem, qualifiziertem Personal installieren oder auswechseln lassen. Avvertenza Solo personale addestrato e qualificato deve essere autorizzato ad installare o sostituire questo apparecchio. Advarsel Kun kvalifisert personell med riktig opplæring bør montere eller bytte ut dette utstyret. Copyright © 2012, Juniper Networks, Inc.
Page 69 è controllata dall'autorità responsabile della zona. Advarsel Denne enheten er laget for installasjon i områder med begrenset adgang. Et område med begrenset adgang gir kun adgang til servicepersonale Copyright © 2012, Juniper Networks, Inc.
Page 70 When removing or installing a component, always place it component-side up on an antistatic surface, in an antistatic card rack, or in an electrostatic bag. If you are returning a component, place it into an electrostatic bag before packing it. See Figure 9 on page Copyright © 2012, Juniper Networks, Inc.
Page 71: Srx220 Services Gateway Fire Safety Requirements
Chapter 8: Safety and Regulatory Compliance Information Figure 9: Placing a Component into an Electrostatic Bag Related SRX220 Services Gateway Definition of Safety Warning Levels on page 50 Documentation SRX220 Services Gateway Fire Safety Requirements on page 55 SRX220 Services Gateway Fire Safety Requirements In the event of a fire emergency involving devices and other network equipment, the safety of people is the primary concern.
Page 72: Srx220 Services Gateway Safety Requirements, Warnings, And Guidelines
To keep warranties effective, do not use a dry chemical fire extinguisher to control a fire at or near a Juniper Networks services gateway. If a dry chemical fire extinguisher is used, the unit is no longer eligible for coverage under a service agreement.
Page 73: Laser And Led Safety Guidelines And Warnings
Advarsel Laserprodukt av klasse 1. Aviso Produto laser de classe 1. ¡Atención! Producto láser Clase I. Varning! Laserprodukt av klass 1. Class 1 LED Product Warning WARNING: Class 1 LED product. Waarschuwing Klasse 1 LED-product. Copyright © 2012, Juniper Networks, Inc.
Page 74: Laser Beam Warning
Aviso Não olhe fixamente para o raio, nem olhe para ele directamente com instrumentos ópticos. ¡Atención! No mirar fijamente el haz ni observarlo directamente con instrumentos ópticos. Varning! Rikta inte blicken in mot strålen och titta inte direkt på den genom optiska instrument. Copyright © 2012, Juniper Networks, Inc.
Page 75: Radiation From Open Port Apertures Warning
öppningar. Related SRX220 Services Gateway Installation Safety Guidelines and Warnings on page 45 Documentation SRX220 Services Gateway Maintenance and Operational Safety Guidelines and Warnings on page 60 Copyright ©...
Page 76: Srx220 Services Gateway Maintenance And Operational Safety Guidelines And Warnings
SRX220 Services Gateway Hardware SRX220 Services Gateway Maintenance and Operational Safety Guidelines and Warnings This topic includes the following section: Safety Guidelines and Warnings on page 60 Safety Guidelines and Warnings Battery Handling Warning WARNING: Replacing the battery incorrectly might result in an explosion.
Page 77: Jewelry Removal Warning
Advarsel Fjern alle smykker (inkludert ringer, halskjeder og klokker) før du skal arbeide på utstyr som er koblet til kraftledninger. Metallgjenstander som er koblet til kraftledninger og jord blir svært varme og kan forårsake alvorlige brannskader eller smelte fast til polene. Copyright © 2012, Juniper Networks, Inc.
Page 78: Lightning Activity Warning
¡Atención! No operar el sistema ni conectar o desconectar cables durante el transcurso de descargas eléctricas en la atmósfera. Varning! Vid åska skall du aldrig utföra arbete på systemet eller ansluta eller koppla loss kablar. Copyright © 2012, Juniper Networks, Inc.
Page 79: Operating Temperature Warning
C). To prevent airflow restriction, allow at least 6 in. (15.2 cm) of clearance around the ventilation openings. Waarschuwing Om te voorkomen dat welke services gateway van de Juniper Networks services gateway dan ook oververhit raakt, dient u deze niet te bedienen op een plaats waar de maximale aanbevolen ο...
Page 80: Product Disposal Warning
Varning! Slutlig kassering av denna produkt bör skötas i enlighet med landets alla lagar och föreskrifter. Related SRX220 Services Gateway Laser and LED Safety Guidelines and Warnings on page 56 Documentation SRX220 Services Gateway Electrical Safety Guidelines and Warnings on page 65...
Page 81: Srx220 Services Gateway Electrical Safety Guidelines And Warnings
Related SRX220 Services Gateway Electrical and Power Requirements Documentation SRX220 Services Gateway Maintenance and Operational Safety Guidelines and Warnings on page 60 SRX220 Services Gateway Agency Approvals on page 66 Grounding the SRX220 Services Gateway on page 93...
Page 82: Srx220 Services Gateway Agency Approvals
EN-61000-4-6 (2007) Immunity to Conducted Disturbances EN-61000-4-11 (2004) Voltage Dips and Sags Related SRX220 Services Gateway Electrical Safety Guidelines and Warnings on page 65 Documentation SRX220 Services Gateway Compliance Statements for EMC Requirements on page 67 Copyright © 2012, Juniper Networks, Inc.
Page 83: Srx220 Services Gateway Compliance Statements For Emc Requirements
Chapter 8: Safety and Regulatory Compliance Information SRX220 Services Gateway Compliance Statements for Environmental Requirements on page 68 SRX220 Services Gateway Compliance Statements for Acoustic Noise on page 68 SRX220 Services Gateway Compliance Statements for EMC Requirements Canada This Class A digital apparatus complies with Canadian ICES-003.
Page 84: Srx220 Services Gateway Compliance Statements For Environmental
98/101/EEC. The product documentation includes instructional information about the proper method of reclamation and recycling. Related SRX220 Services Gateway Compliance Statements for EMC Requirements on page 67 Documentation SRX220 Services Gateway Compliance Statements for Acoustic Noise on page 68...
Page 85: Installing The Services Gateway
Connecting, Grounding, and Powering On the Services Gateway on page 91 Autoinstallation on page 99 Establishing Basic Connectivity on page 101 Configuring Basic Settings on page 109 Configuring Secure Web Access on page 121 Copyright © 2012, Juniper Networks, Inc.
Page 87: Installation
CHAPTER 9 Installation Overview Installation Overview for the SRX220 Services Gateway on page 71 Required Tools and Parts for Installing and Maintaining the SRX220 Services Gateway on page 72 Installation Overview for the SRX220 Services Gateway After you have prepared your installation site, you are ready to unpack and install the services gateway.
Page 88: Gateway
Related Unpacking the SRX220 Services Gateway on page 75 Documentation General Site Guidelines for Installing the SRX220 Services Gateway on page 29 Preparing the SRX220 Services Gateway for Rack-Mount and Wall-Mount Installation on page 79 Required Tools and Parts for Installing and Maintaining the SRX220 Services Gateway...
Page 89 Unpacking the SRX220 Services Gateway on page 75 Documentation Grounding the SRX220 Services Gateway on page 93 Connecting the SRX220 Services Gateway to the Power Supply on page 91 Packing the SRX220 Services Gateway and Components for Shipment on page 144 Copyright © 2012, Juniper Networks, Inc.
Page 91: Unpacking The Services Gateway
Verifying Parts Received with the SRX220 Services Gateway on page 76 Unpacking the SRX220 Services Gateway The SRX220 Services Gateway is shipped in a cardboard box. The box also contains the device accessories and the following documents: SRX100, SRX210, and SRX220 Services Gateways Initial Setup Overview...
Page 92: Verifying Parts Received With The Srx220 Services Gateway
SRX220 Services Gateway Hardware Verifying Parts Received with the SRX220 Services Gateway The SRX220 Services Gateway shipment package contains a packing list that includes all parts and accessories available with the device. Check the parts in the shipment against the items on the packing list. The packing list specifies the part numbers and describes each part in your order.
Page 93 You must order them separately. Contact your Juniper Networks customer service representative for more information. Related Required Tools and Parts for Installing and Maintaining the SRX220 Services Gateway Documentation on page 72 Unpacking the SRX220 Services Gateway on page 75...
Page 95: Installing The Mounting Hardware
Preparing the SRX220 Services Gateway for Wall-Mount Installation on page 80 Preparing the SRX220 Services Gateway for Rack-Mount and Wall-Mount Installation You can mount an SRX220 Services Gateway in a rack or on a wall. See the following topics for more information:...
Page 96: Preparing The Srx220 Services Gateway For Wall-Mount Installation
Preparing the SRX220 Services Gateway for Wall-Mount Installation on page 80 Preparing the SRX220 Services Gateway for Wall-Mount Installation You can mount an SRX220 Services Gateway on a wall. The four rubber feet attached to the chassis provide stability. Copyright © 2012, Juniper Networks, Inc.
Page 97: Table 29: Srx220 Services Gateway Preinstallation Checklist For Wall-Mount
The wall-mounting kit is not shipped with the device and must be ordered separately. Related Site Preparation Checklist for the SRX220 Services Gateway on page 27 Documentation Unpacking the SRX220 Services Gateway on page 75 Preparing the SRX220 Services Gateway for Rack-Mount Installation on page 79...
Page 99: Installing The Services Gateway
Gateway on page 88 Installing the SRX220 Services Gateway in a Rack You can front-mount the SRX220 Services Gateway in a rack. Many types of racks are acceptable, including four-post (telco) racks, enclosed cabinets, and open-frame racks. For more information about the type of rack or cabinet into which theSRX220 Services Gateway can be installed, see “SRX220 Services Gateway Rack Requirements”...
Page 100: Figure 10: Installation Of Srx220 Services Gateway In A Rack - Attaching The Mounting Brackets
Position a mounting bracket on each side of the chassis, as shown in Figure 10 on page Figure 10: Installation of SRX220 Services Gateway in a Rack — Attaching the Mounting Brackets Use a number-1 Phillips screwdriver to install the screws that secure the mounting...
Page 101: Figure 12: Positioning The Power Supply In The Tray (Srx220H Model)
Have one person grasp the sides of the device, lift it, and position it in the rack. Align the bottom hole in each mounting bracket with a hole in each rack rail, as shown Figure 14 on page 86, making sure the chassis is level. Copyright © 2012, Juniper Networks, Inc.
Page 102: Installing The Srx220 Services Gateway On A Wall
Related SRX220 Services Gateway General Safety Guidelines and Warnings on page 51 Documentation Required Tools and Parts for Installing and Maintaining the SRX220 Services Gateway on page 72 Preparing the SRX220 Services Gateway for Rack-Mount Installation on page 79 Installing the SRX220 Services Gateway on a Wall on page 86 Installing the SRX220 Services Gateway on a Wall You can install the SRX220 Services Gateway on a wall.
Page 103: Figure 15: Srx220 Services Gateway Wall Installation - Attaching The Mounting
To install the device on a wall: Place the device on a flat and level surface with the Juniper Networks logo embossed on the top cover facing up. Ensure that the rubber feet are attached to the bottom of the chassis.
Page 104: Figure 16: Srx220 Services Gateway Wall Installation - Hanging The Services
They enable you to easily add or change physical interfaces on a device. The SRX220 Services Gateway has two Mini-PIM slots. Each slot is covered with a blank faceplate to maintain proper airflow through the services gateway. Before installing a Mini-PIM in a slot, you must remove the blank faceplate from the slot.
Page 105 Chapter 12: Installing the Services Gateway Related SRX220 Services Gateway Installation Safety Guidelines and Warnings on page 45 Documentation Installing the SRX220 Services Gateway on a Wall on page 86 Installing the SRX220 Services Gateway in a Rack on page 83...
Page 107: Gateway
CHAPTER 13 Connecting, Grounding, and Powering On the Services Gateway Connecting the SRX220 Services Gateway to the Power Supply on page 91 Connecting and Organizing Interface Cables for the SRX220 Services Gateway on page 92 Grounding the SRX220 Services Gateway on page 93...
Page 108: Gateway
This noise is temporary and stops after the device is configured. Related Required Tools and Parts for Installing and Maintaining the SRX220 Services Gateway Documentation on page 72 Grounding the SRX220 Services Gateway on page 93...
Page 109: Grounding The Srx220 Services Gateway
Connecting the SRX220 Services Gateway to the Power Supply on page 91 Documentation Grounding the SRX220 Services Gateway on page 93 Interface Cable and Wire Specifications for the SRX220 Services Gateway on page 39 SRX220 Services Gateway Installation Safety Guidelines and Warnings on page 45 Grounding the SRX220 Services Gateway...
Page 110: Powering On And Powering Off The Srx220 Services Gateway
NOTE: The device should be permanently connected to ground during normal operation. Related Connecting the SRX220 Services Gateway to the Power Supply on page 91 Documentation Connecting and Organizing Interface Cables for the SRX220 Services Gateway on page 92 SRX220 Services Gateway Grounding Specifications on page 37...
Page 111: Powering On The Srx220 Services Gateway
Chapter 13: Connecting, Grounding, and Powering On the Services Gateway Powering On the SRX220 Services Gateway To power on the services gateway: Ensure that you have connected the power supply to the device. Insert the plug of the power supply adapter into an AC power source receptacle.
Page 112: Resetting The Srx220 Services Gateway
Documentation Grounding the SRX220 Services Gateway on page 93 SRX220 Services Gateway Front Panel and Back Panel Views on page 9 Using the Reset Config Button on the SRX220 Services Gateway on page 135 Copyright © 2012, Juniper Networks, Inc.
Page 113: Resetting The Srx220 Services Gateway
Documentation Grounding the SRX220 Services Gateway on page 93 SRX220 Services Gateway Front Panel and Back Panel Views on page 9 Using the Reset Config Button on the SRX220 Services Gateway on page 135 Copyright © 2012, Juniper Networks, Inc.
Page 115: Autoinstallation
Junos OS Administration Guide for Security Devices Related Connecting the SRX220 Services Gateway to the Power Supply on page 91 Documentation Grounding the SRX220 Services Gateway on page 93 Powering On and Powering Off the SRX220 Services Gateway on page 94...
Page 117: Establishing Basic Connectivity
Connecting the Modem to the Console Port on the SRX220 Services Gateway on page 106 Connecting to the CLI at the User End for the SRX220 Services Gateway on page 107 Connecting to the SRX220 Services Gateway Setup Wizard If you plan to use the setup wizard to configure the SRX220 Services Gateway, you must...
Page 118: Connecting An Srx220 Services Gateway To The Cli Locally
SRX220 Services Gateway Secure Web Access Overview on page 121 Connecting an SRX220 Services Gateway to the CLI Locally If you plan to use the command-line interface (CLI) to configure the SRX220 Services Gateway, you must connect through the console port, as shown in Figure 20 on page 103.
Page 119: Table 32: Connecting To The Console Port On An Srx220 Services Gateway
Chapter 15: Establishing Basic Connectivity Figure 20: Connecting to the Console Port on an SRX220 Services Gateway NOTE: The numbers in Figure 20 on page 103 correspond to the numbers in Table 32 on page 103. Table 32: Connecting to the Console Port on an SRX220 Services Gateway...
Page 120: Table 33: Port Settings For Connecting To The Console Port
. No password is required at initial connection, but you must root assign a root password before committing any configuration settings. Related Connecting an SRX220 Services Gateway to the CLI Remotely on page 105 Documentation Performing Initial Software Configuration on the SRX220 Services Gateway Using the CLI on page 113...
Page 121: Connecting An Srx220 Services Gateway To The Cli Remotely
Chapter 15: Establishing Basic Connectivity Connecting an SRX220 Services Gateway to the CLI Remotely You can connect an SRX220 Services Gateway to the CLI from a remote location through two dial-up modems: A modem that is connected to the console port on the services gateway...
Page 122: Gateway
Documentation page 106 Connecting to the CLI at the User End for the SRX220 Services Gateway on page 107 SRX220 Services Gateway Software Configuration Overview on page 109 Connecting the Modem to the Console Port on the SRX220 Services Gateway To connect the dial-up modem to the console port on the services gateway: Turn off power to the services gateway.
Page 123: Connecting To The Cli At The User End For The Srx220 Services Gateway
Connecting the Modem at the SRX220 Services Gateway End on page 105 Documentation Connecting to the CLI at the User End for the SRX220 Services Gateway on page 107 SRX220 Services Gateway Software Configuration Overview on page 109 Connecting to the CLI at the User End for the SRX220 Services Gateway...
Page 124 Related Connecting the Modem at the SRX220 Services Gateway End on page 105 Documentation Connecting the Modem to the Console Port on the SRX220 Services Gateway on page 106 SRX220 Services Gateway Software Configuration Overview on page 109 Copyright © 2012, Juniper Networks, Inc.
Page 125: Configuring Basic Settings
Understanding Management Access on page 112 Preparing the SRX220 Services Gateway for Configuration The services gateway is shipped with the Juniper Networks Junos operating system (Junos OS) preinstalled and ready to be configured when the device is powered on. When the device powers on, it tries to start the Junos OS on the USB flash drive. If a USB flash drive is not inserted into the USB connector or if the attempt otherwise fails, the device next tries the CompactFlash card, and finally the internal flash memory.
Page 126: Understanding The Factory Default Configuration
Port 0/0—Connect your services gateway to the Internet on this port if you plan to download purchased software licenses through the setup wizard. A DHCP client running on this interface allows it to receive its network settings from your ISP. Copyright © 2012, Juniper Networks, Inc.
Page 127: Mapping The Chassis Cluster Ports
Table 36 on page 111 shows the mapping of the chassis cluster ports. Table 36: Mapping of the Chassis Cluster Ports on an SRX220 Services Gateway GE Port on SRX220 Services Gateway Management Interface...
Page 128 Connecting to the SRX220 Services Gateway Setup Wizard on page 101 Documentation Connecting an SRX220 Services Gateway to the CLI Locally on page 102 Connecting an SRX220 Services Gateway to the CLI Remotely on page 105 Performing Initial Software Configuration on the SRX220 Services Gateway Using the...
Page 129 Chapter 16: Configuring Basic Settings Performing Initial Software Configuration on the SRX220 Services Gateway Using the This procedure connects the device to the network but does not enable it to forward traffic. For complete information about enabling the device to forward traffic, including examples, see the appropriate Junos OS configuration guides.
Page 130 [ lab.device.net device.net ]; backup-device 192.168.2.44; time-zone America/Los_Angeles; root-authentication { ssh-rsa "ssh-rsa AAAAB3Nza...D9Y2gXF9ac==root@devicea.lab.device.net"; name-server { 10.148.2.32; services { ntp { server 10.148.2.21; interfaces { ge-0/0/0 { unit 0 { Copyright © 2012, Juniper Networks, Inc.
Page 131 Related Connecting an SRX220 Services Gateway to the CLI Locally on page 102 Documentation Connecting an SRX220 Services Gateway to the CLI Remotely on page 105 Performing Initial Software Configuration on the SRX220 Services Gateway Using the...
Page 132 The upper left area of the wizard page shows where you are in the setup process. Click a field in the wizard page to display information about that field in the lower left area of the page. Copyright © 2012, Juniper Networks, Inc.
Page 133: Table 37: Required Setup Fields
Type the name of the network or subnetwork to which the services gateway belongs Root password Type the password that user will root use to log in to the device. Verify root password Retype the root password. Copyright © 2012, Juniper Networks, Inc.
Page 134: Table 38: Optional Setup Fields
After you configure the basic setup, the Setup wizard is no longer available, unless you reset the device to the factory default and reboot it. To make changes to the configuration, use the J-Web interface or the CLI. Copyright © 2012, Juniper Networks, Inc.
Page 135 Choose Configure > Wizards to use the available wizards. Use the J-Web interface or the CLI for more extensive configuration. For more instructions on managing users and operations, monitoring network performance, upgrading software, and diagnosing common problems on an SRX220 Services Gateway, see the Junos OS Administration Guide for Security Devices...
Page 137 For more information about configuring secure Web access, see the following guides: Junos OS Initial Configuration Guide for Security Devices Junos OS Monitoring and Troubleshooting Guide for Security Devices Related Performing Initial Software Configuration on the SRX220 Services Gateway Using the Documentation Setup Wizard Copyright © 2012, Juniper Networks, Inc.
Page 141: Table 39: Maintenance Procedures For Services Gateway Hardware
CHAPTER 18 Maintaining the Hardware Maintaining the SRX220 Services Gateway Hardware Components on page 125 Replacing the SRX220 Services Gateway CompactFlash Card on page 126 Maintaining the SRX220 Services Gateway Hardware Components Table 39 on page 125 describes the common tasks for maintaining the hardware components of the services gateway.
Page 142 Site Preparation Checklist for the SRX220 Services Gateway on page 27 Replacing the SRX220 Services Gateway CompactFlash Card The SRX220 Services Gateway has a CompactFlash card installed in a covered slot at the right edge of the front panel. Under certain circumstances, you might find it necessary to replace the CompactFlash card.
Page 143 CHAPTER 19 Monitoring Hardware Components Monitoring the SRX220 Services Gateway Chassis Using the CLI on page 127 Monitoring the SRX220 Services Gateway Components Using LEDs on page 128 Monitoring the SRX220 Services Gateway Using Chassis Alarm Conditions on page 131...
Page 144 Monitoring the SRX220 Services Gateway Components Using LEDs on page 128 Documentation Monitoring the SRX220 Services Gateway Using Chassis Alarm Conditions on page 131 Monitoring the SRX220 Services Gateway Power System on page 132 Maintaining the SRX220 Services Gateway Hardware Components on page 125...
Page 145: Table 40: Component Leds On The Services Gateway
The device is starting up. Normal condition. No action is required. NOTE: If the system is up and running and the Alarm LED is off, it indicates that no alarms are present on the device. Copyright © 2012, Juniper Networks, Inc.
Page 146 Monitoring the SRX220 Services Gateway Using Chassis Alarm Conditions on page 131 Monitoring the SRX220 Services Gateway Power System on page 132 Using the Reset Config Button on the SRX220 Services Gateway on page 135 Changing the Reset Config Button Behavior on the SRX220 Services Gateway on...
Page 147: Table 41: Srx220 Services Gateway Chassis Alarm Conditions And Corrective
For more information on the show chassis alarms command, see the Junos OS Administration Guide for Security Devices Table 41 on page 131 describes alarms that can occur for an SRX220 Services Gateway chassis component. Table 41: SRX220 Services Gateway Chassis Alarm Conditions and Corrective Actions...
Page 148 Monitoring the SRX220 Services Gateway Components Using LEDs on page 128 Monitoring the SRX220 Services Gateway Power System on page 132 Using the Reset Config Button on the SRX220 Services Gateway on page 135 Changing the Reset Config Button Behavior on the SRX220 Services Gateway on...
Page 149: Table 42: Services Gateway Power Led Status
Monitoring the SRX220 Services Gateway Components Using LEDs on page 128 Monitoring the SRX220 Services Gateway Using Chassis Alarm Conditions on page 131 Using the Reset Config Button on the SRX220 Services Gateway on page 135 Changing the Reset Config Button Behavior on the SRX220 Services Gateway on...
Page 151 CHAPTER 20 Resetting the Configuration File Using the Reset Config Button on the SRX220 Services Gateway on page 135 Changing the Reset Config Button Behavior on the SRX220 Services Gateway on page 136 Using the Reset Config Button on the SRX220 Services Gateway...
Page 152 To return the function of the Reset Config button to its default behavior, remove the config-button statement from the device configuration. Related Using the Reset Config Button on the SRX220 Services Gateway on page 135 Documentation Monitoring the SRX220 Services Gateway Chassis Using the CLI on page 127...
Page 155 (within the United States) or 1-408-745-9500 (from outside the United States). Related Contacting Customer Support on page 144 Documentation Information You Might Need to Supply to Juniper Networks Technical Assistance Center on page 143 Copyright © 2012, Juniper Networks, Inc.
Page 157 Returning the Services Gateway Return Procedure for the SRX220 Services Gateway on page 141 Locating the SRX220 Services Gateway Serial Number and Agency Labels on page 142 Information You Might Need to Supply to Juniper Networks Technical Assistance Center on page 143...
Page 158 Most components also have a serial number ID label attached to the component body. SRX220 Services Gateway Chassis Serial Number and Agency Labels The SRX220 Services Gateway has a serial number ID and agency labels on the bottom of the chassis, as shown in Figure 21 on page 143.
Page 159 Contacting Customer Support on page 144 Information You Might Need to Supply to Juniper Networks Technical Assistance Center If you are returning a services gateway or hardware component to Juniper Networks for repair or replacement, obtain a Return Materials Authorization (RMA) number from Juniper Networks Technical Assistance Center (JTAC).
Page 160 Contacting Customer Support Once you have located the serial numbers of the device or component, you can return the device or component for repair or replacement. For this, you need to contact Juniper Networks Technical Assistance Center (JTAC). You can contact JTAC 24 hours a day, 7 days a week, using any of the following methods: On the Web: Using the Case Manager link at http://www.juniper.net/support/...
Page 161 To pack the services gateway for shipment: Retrieve the shipping box and packing materials in which the device was originally shipped. If you do not have these materials, contact your Juniper Networks representative about approved packaging materials. Attach an ESD grounding strap to your bare wrist and connect the strap to the ESD point on the chassis or to an outside ESD point if the device is disconnected from earth ground.
Page 162 Required Tools and Parts for Installing and Maintaining the SRX220 Services Gateway Documentation on page 72 Locating the SRX220 Services Gateway Serial Number and Agency Labels on page 142 Information You Might Need to Supply to Juniper Networks Technical Assistance Center on page 143...
Page 165 CLI access...........105 braces, in configuration statements.........xv settings for modem connection for remote CLI brackets access................107 angle, in syntax descriptions........xiv console port, RJ-45..............41 square, in configuration statements......xv conventions text and syntax...............xiv Copyright © 2012, Juniper Networks, Inc.
Page 166 RJ-45..................40 interface cables connecting................92 organizing................92 factory default configuration........110, interfaces fire safety specifications............55 built-in.................14 font conventions..............xiv hardware................14 front panel LEDs................11 Internet..................3 Copyright © 2012, Juniper Networks, Inc.
Page 167 JTAC...................139, RJ-45................39, information required............143 PoE See Power over Ethernet requesting support............143 LED..................13 Juniper Networks Technical Assistance Center See Port LED JTAC TX/RX/LINK, PoE ............12 Junos OS port settings................105 CLI, connecting locally..........102 power CLI, connecting remotely..........105...
Page 168 LED...................11 components...............9 monitoring...............128 configuration..............109 support, requesting from JTAC........144 establishing secure Web access......121 support, technical See technical support factory default configuration........110 syntax conventions..............xiv front panel................9 grounding................93 hardware interfaces............14 technical support HTTPS Web access............121 contacting JTAC...............xv Copyright © 2012, Juniper Networks, Inc.
Page 169 Index temperature, acceptable range..........7 temperature, nonoperating range........7 thermal output................7 TX/RX/LINK LED..............13 wall mount installation performing................86 preparing for..............80 warnings electrical................65 installation................45 laser and LED..............56 maintenance and operational........60 wire specifications..............39 Copyright © 2012, Juniper Networks, Inc.
