48
EN
Edit From
A Ca mcorder
N U M BER "0"
N O TES:
● All necessary cables can be obtained from your dealer.
● You can also use another video recorder as the player instead
of a camcorder.
● When you select "EDIT" to dub tapes, be sure to select
"AUTO" (or "NORM" when the B.E.S.T. function is set to
"OFF") after you finish dubbing the tapes (
IM PO RTAN T:
● To edit, both the player and the recorder must be of the
same colour system. Select the appropriate colour system
( pg. 52).
● PAL, SECAM and NTSC camcorders can be used as a
player for editing.
● For more information on multi-system compatibility,
pg. 52.

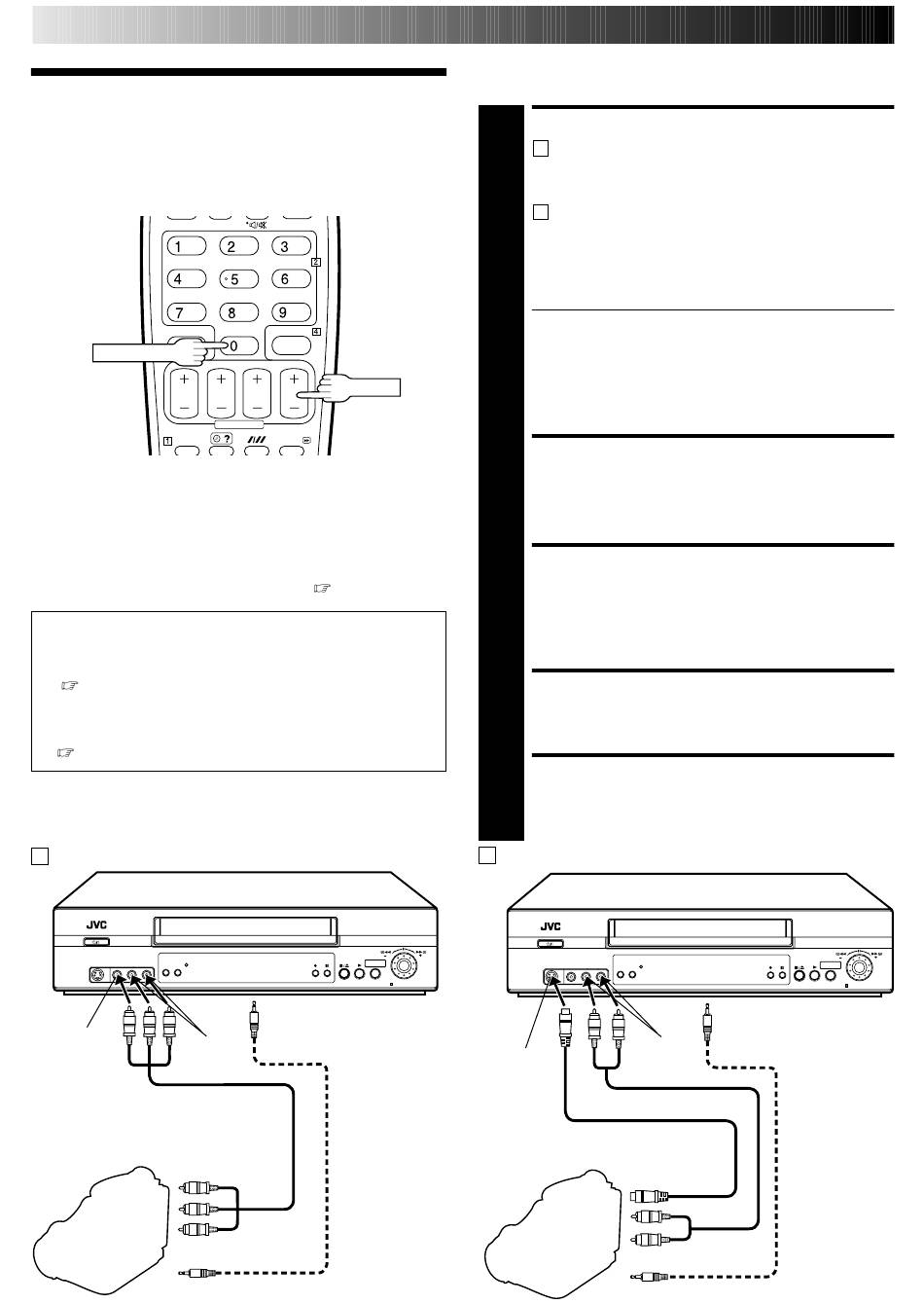

A If the camcorder has no S-VID EO output connector...
VIDEO
AUDIO
input
input
Audio/Video Cable
(not provided)
VIDEO OUT
Player
Camcorder
AUDIO OUT
EDIT
PR +/ –
pg. 47).
Recorder
To rear panel PAUSE
connector
Mini-Plug Cable
(not provided)
(JVC camcorder
only)
You can use a camcorder as the source player and your video
recorder as the recorder.
MAKE CO N N ECTIO N S
1
If the camcorder has no S-VIDEO output connector...
A
... connect the camcorder's AUDIO/VIDEO OUT
connectors to the recorder's front panel AUDIO/
VIDEO input connectors.
If the camcorder has an S-VIDEO output connector...
B
... connect the camcorder's S-VIDEO OUT and
AUDIO OUT connectors to the recorder's front
panel S-VIDEO(S-2) and AUDIO input connectors.
The recorder's rear panel S-VIDEO IN and AUDIO
IN input connectors are also available.
● When using a monaural camcorder, connect its
AUDIO OUT connector to the AUDIO L input
connector on your recorder.
● When a Master Edit Control-equipped JVC camcorder
is used, the camcorder is capable of controlling the
recorder. Refer to the camcorder's instruction manual
for operating procedure.
SET RECO RDER' S IN PUT MO DE
2
Press key "0" and/or
N U M BER
the AUDIO/VIDEO input connectors, or "S-2" for the
AUDIO/S-VIDEO input connectors, depending on the
connectors being used.
SELECT " EDIT" FO R PICTURE
CO N TRO L SET MO DE
3
Follow the "Picture Control" section on page 47, then
select "EDIT."
ST ART CAMCO RDER
4
Engage its Play mode.
ST ART RECO RDER
5
Engage its Record mode.
B If the camcorder has an S-VID EO output connector...
AUDIO
S-VIDEO
input
(S-2)
input
Audio Cable (not provided)
S-Video Cable (provided)
S-VIDEO OUT
Player
Camcorder
AUDIO OUT
EDIT
ED ITIN G (cont.)
to select "F-1" for
PR +/ –
Recorder
To rear panel PAUSE
connector
Mini-Plug Cable
(not provided)
(JVC camcorder
only)
