Summary of Contents for IKEA KOLDGRADER

  • Page 1 KÖLDGRADER...
  • Page 2 ENGLISH Please refer to the last page of this manual for the full list of IKEA appointed After Sales Service Provider and relative national phone numbers.
  • Page 3 ENGLISH...

  • Page 4: Table Of Contents

    Control panel Information for test institutes First use Environmental concerns Daily use IKEA guarantee Hints and tips Subject to change without notice. Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage.
  • Page 5 ENGLISH Children should be supervised to ensure that they do not • play with the appliance. Children shall not carry out cleaning and user maintenance • of the appliance without supervision. Keep all packaging away from children and dispose of it •...

  • Page 6: Safety Instructions

    ENGLISH Clean the appliance with a moist soft cloth. Only use neutral • detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. When the appliance is empty for long period, switch it off, • defrost, clean, dry and leave the door open to prevent mould from developing within the appliance.
  • Page 7 ENGLISH Authorised Service Centre or an • Do not freeze again food that has been electrician to change the electrical thawed. components. • Follow the storage instructions on the • The mains cable must stay below the level packaging of frozen food. of the mains plug.

  • Page 8: Installation

    Product serial number (Ser. No.): Art. No........GROSS CAPACITY Made in Hungary XXX l Product article number (Art. No.): BRUTTO INHALT @ Inter IKEA Systems B.V. 1999 XXXXXXXXX REFRIGERATOR NET CAPACITY XXX l KUEHLSCHRANK NUTZINHALT xxxxx ........FREEZER NET CAPACITY...
  • Page 9 ENGLISH To check If the answer is YES If the answer is NO Make sure gasket seals all No action Refer to the assembly instruction - around the door when the door alignment. door is closed. Check if there is no collision No action Refer to the assembly instruction - between parts/furniture while...
  • Page 10 ENGLISH Dimensions Overall dimensions ¹ Space required in use ² 1884 1894 ² the height, width and depth of the appliance including the handle, plus the ¹ the height, width and depth of the space necessary for free circulation of the appliance without the handle cooling air Space required in use ²...
  • Page 11 ENGLISH ³ the height, width and depth of the Warning! This appliance must be appliance including the handle, plus the earthed. space necessary for free circulation of the The manufacturer declines any cooling air, plus the space necessary to allow liability should these safety door opening to the minimum angle measures not be observed.
  • Page 12 ENGLISH 4. Check that no cut, or stray strands of Caution! Refer to the installation wire is present and the cord clamp (E) is instructions for the installation. secure over the outer sheath. Make sure the electricity supply voltage Door reversibility is the same as that indicated on the appliance rating plate.

  • Page 13: Product Description

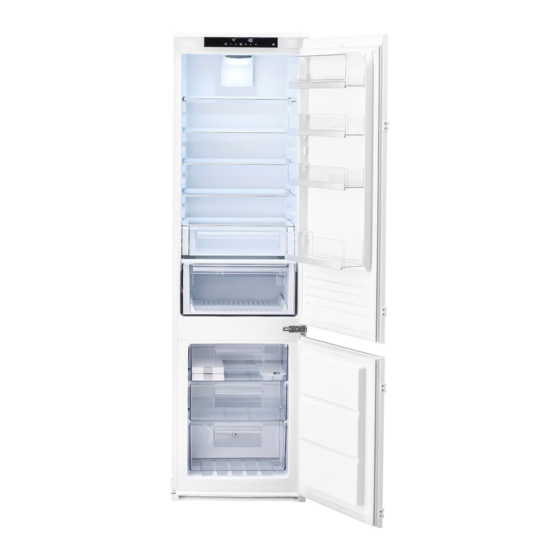

    ENGLISH Product description Fan-cooling with LED lamp Extra Zone Control panel Extendable half-shelf Door balconies Glass shelves Bottle balcony Least cold zone Vegetable drawer Intermediate temperature zone Freezer drawers Coldest zone Freezing drawer Sliding shelf with containers Rating plate...

  • Page 14: Control Panel

    ENGLISH Control panel Display Fridge temperature warmer button Freezer temperature warmer button Fridge temperature colder button Freezer temperature colder button ON/OFF button OK button Function button To change the default sound of the buttons, a few seconds. To revert the change, repeat the procedure.
  • Page 15 ENGLISH • -18°C for the freezer To select a different set The temperature range may vary between temperature refer to -15°C and -24°C for freezer and between 2°C "Temperature regulation". and 8°C for fridge. If "DEMO" appears on the display, the The temperature indicators show the set appliance is in demonstration mode.
  • Page 16 ENGLISH The fridge temperature indicator shows the Bottle Chill Function set temperature. The Bottle Chill Function can be used to set 2. Press OK button to confirm. an acoustic alarm at the preferred time, The Vacation indicator is shown. useful for example when a recipe requires to The function switches off after cool down food products for a certain period selecting a different fridge...

  • Page 17: First Use

    ENGLISH The Fan-cooling indicator is shown. 2. The freezer temperature indicator shows To switch off this function repeat the the highest temperature reached for a procedure until the Fan-cooling indicator few seconds, then the display shows the disappears. set temperature again. The alarm indicator continues to If the function is activated flash until the normal conditions...

  • Page 18: Daily Use

    ENGLISH Daily use Accessories Movable shelves Egg tray Ice tray The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired. Positioning the door balconies This appliance is also equipped with a shelf consisting of two parts.
  • Page 19 ENGLISH When the ventilation slots are closed: the natural moisture content of the food in the fruit and vegetable compartments is To reassemble: preserved for longer. 1. Pull out the rails. When the ventilation slots are opened: more air circulation results in a lower air moisture content in the fruit and vegetable compartments.
  • Page 20 ENGLISH 3. Keep the front of the drawer (2) lifted up while pushing the drawer in. 4. Press the front part of the drawer downwards. Pull out the drawer again and check if it is placed correctly on both rear and front hooks. Sliding shelf Top of the vegetable drawer is equipped with sliding shelf that houses two removable...
  • Page 21 ENGLISH For more information refer to "Hints for freezing". Storage of frozen food When activating an appliance for the first time or after a period out of use, before putting the products in the compartment let the appliance run at least 3 hours with the Fast Freezing function switched on.

  • Page 22: Hints And Tips

    ENGLISH Hints and tips Hints for energy saving identify foods and to know when they should be used before their deterioration. • Freezer: The internal configuration of the • The food should be fresh when being appliance is the one that ensures the frozen to preserve good quality.
  • Page 23 ENGLISH Shopping tips shopping and transport them in a thermal and insulated cool bag. After grocery shopping: • Place the frozen foods immediately in the freezer after coming back from the shop. • Ensure that the packaging is not • If food has defrosted even partially, do damaged - the food could be not re-freeze it.

  • Page 24: Care And Cleaning

    ENGLISH • Always use closed containers for liquids • Fruit and vegetables: clean thoroughly and for food, to avoid flavours or odours (eliminate the soil) and place in a special in the compartment. drawer (vegetable drawer). • To avoid the cross-contamination •...

  • Page 25: Troubleshooting

    ENGLISH refrigerator compartment channel to Period of non-operation prevent the water overflowing and dripping onto the food inside. When the appliance is not in use for long period, take the following precautions: For this purpose use the tube cleaner provided with the appliance. 1.
  • Page 26 ENGLISH Problem Possible cause Solution The compressor operates Temperature is set incorrect‐ Refer to "Control Panel" continually. chapter. The compressor operates Many food products were put Wait a few hours and then continually. in at the same time. check the temperature again. The compressor operates The room temperature is too Refer to "Installation"...
  • Page 27 ENGLISH Problem Possible cause Solution There is too much frost and Appliance is fully loaded and Set a higher temperature. Re‐ ice. is set to the lowest tempera‐ fer to "Control Panel" chap‐ ture. ter. There is too much frost and Temperature set in the appli‐...
  • Page 28 ENGLISH Problem Possible cause Solution The temperature in the appli‐ The temperature is not set Set a higher/lower tempera‐ ance is too low/too high. correctly. ture. The temperature in the appli‐ The door is not closed cor‐ Refer to "Closing the door" ance is too low/too high.

  • Page 29: Noises

    ENGLISH 2. If necessary, adjust the door. Refer to the 3. If necessary, replace the defective door assembly instructions. gaskets. Contact the Authorised Service Centre. Noises SSSRRR! BRRR! CLICK! HISSS! BLUBB! Technical data Product category Product Type Refrigerator - Freezer Installation Type Built-in only Product dimensions...
  • Page 30 GROSS CAPACITY Made in Hungary XXX l BRUTTO INHALT @ Inter IKEA Systems B.V. 1999 REFRIGERATOR NET CAPACITY XXXXXXXXX XXX l KUEHLSCHRANK NUTZINHALT xxxxx FREEZER NET CAPACITY...

  • Page 31: Information For Test Institutes

    On these conditions the EU original date of purchase of your appliance guidelines (Nr. 99/44/EG) and the respective at IKEA. The original sales receipt is required local regulations are applicable. Replaced as proof of purchase. If service work is parts become the property of IKEA.
  • Page 32 The dedicated After Sales Service for IKEA • Repairs caused by installation which is appliances: faulty or not according to specification. Please do not hesitate to contact IKEA After • The use of the appliance in a non- Sales Service to: domestic environment i.e. professional use.
  • Page 33 How to reach us if you need our service Please refer to the last page of this manual for the full list of IKEA appointed contacts and relative national phone numbers. In order to provide you with a...
  • Page 34 Magyarország 06-1-252-1773 Belföldi díjszabás Hétköznap 8.00 és 17.00 óra között 050-7111267 ma-vr: 8.00 - 21.00 Nederland Geen extra kosten. (0900-BEL IKEA) zat: 9.00 - 21.00 Luxembourg +31 507111267 Alleen lokaal tarief. zon / pub. vakantie: 10.00 - 18.00 (internationaal) Norge l i t Österreich...
  • Page 36 21552 © Inter IKEA Systems B.V. 2022 AA-2342644-1...
