ADDAC713 Assembly Guide
! NOTICE !
These steps are only necessary for the pcbs
that have the jumpers on the back, in newer
revisions these jumpers were removed.

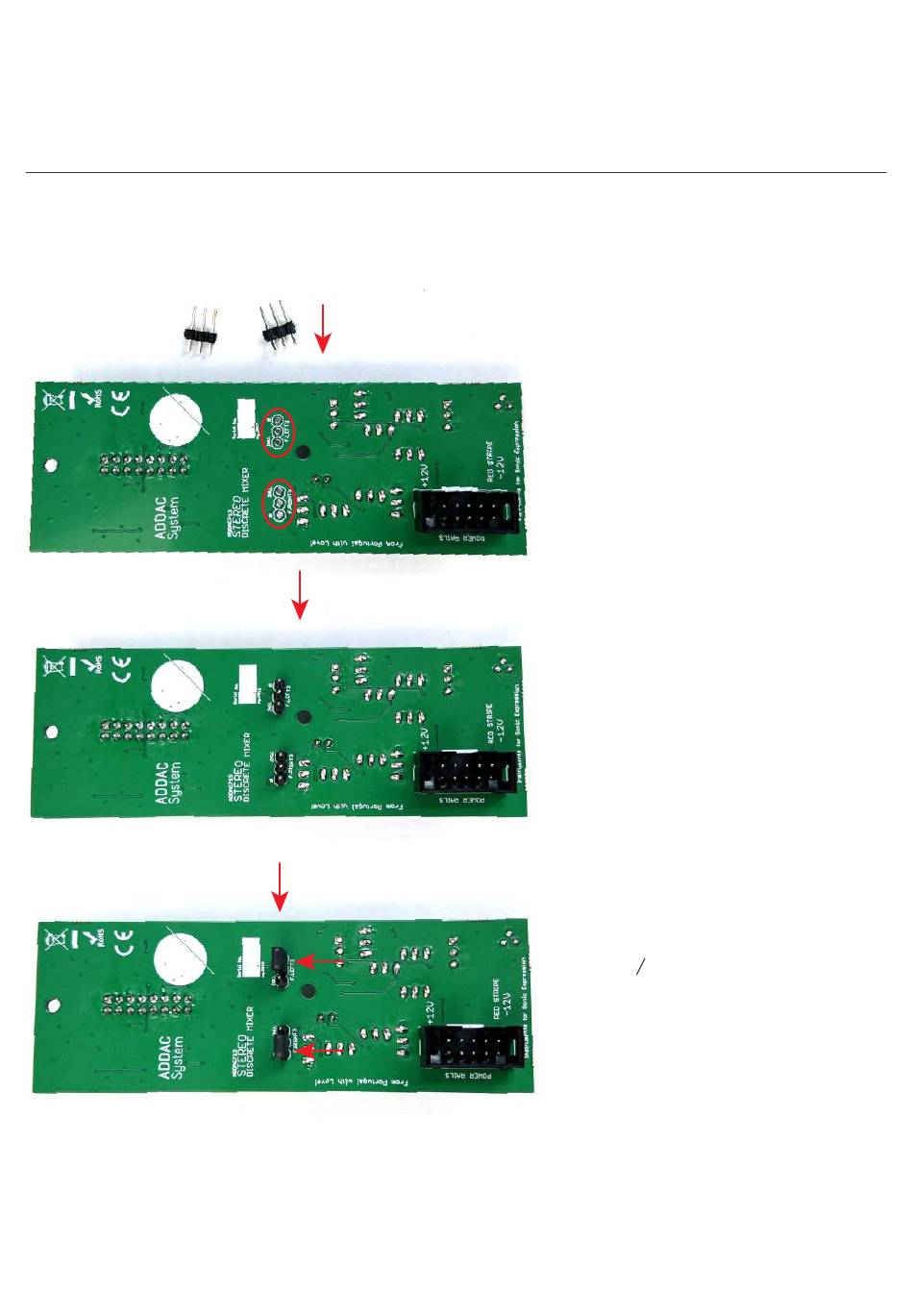

STEP A:
Place and solder the jumpers on the back of
the pcb.
Notice the orientation marked on the pcb.
STEP B:
Place and jumper caps on the pinheaders
facing the "0" marking on the pcb
ADDAC SYSTEM
page 5
