ADDAC713 Assembly Guide
STEP 13:

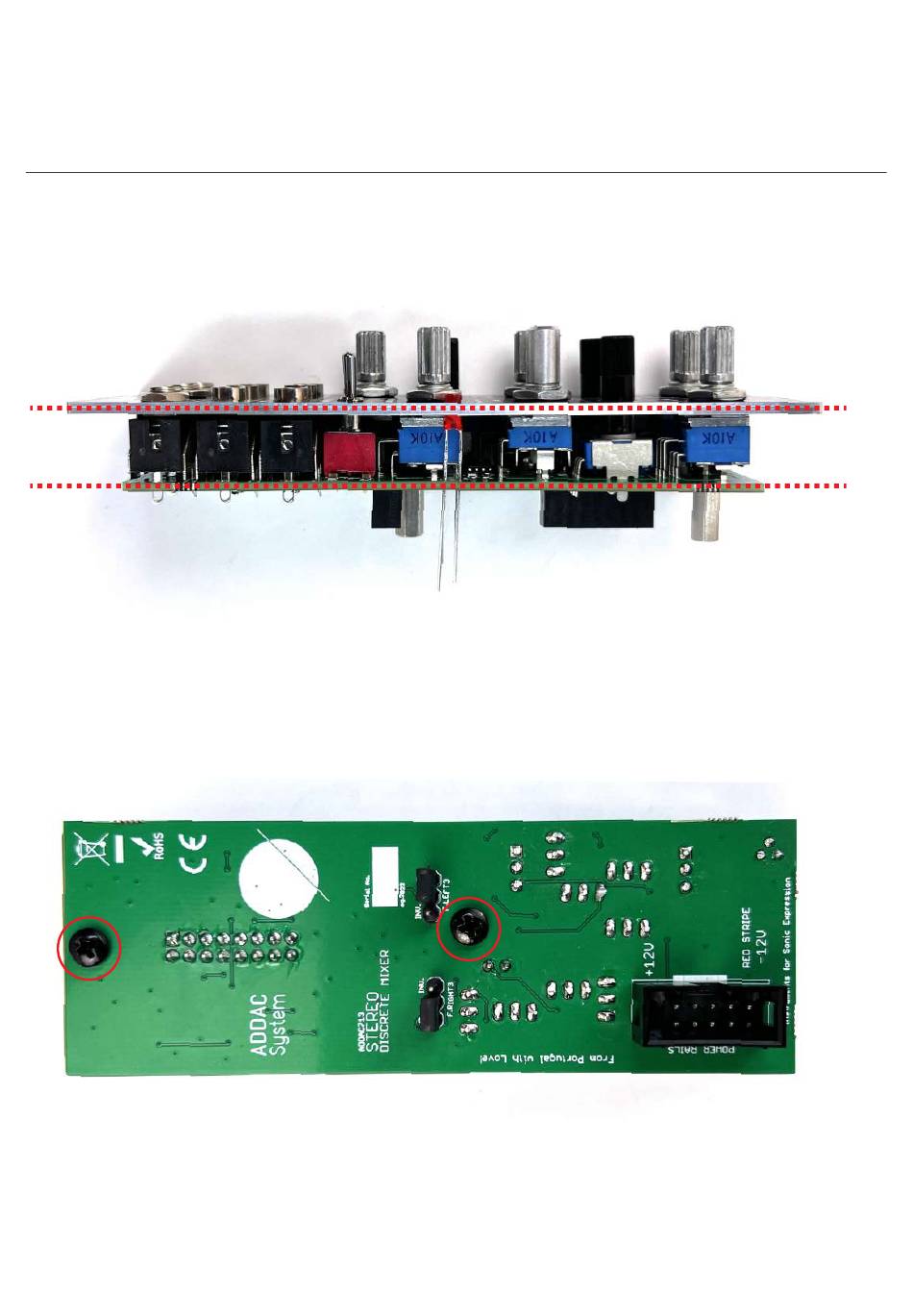

Adjust the height of the pcb keeping it parallel to the front panel and proceed to solder all parts.
Keep lines parallel
STEP 14:
Place the 2 back screws.
ADDAC SYSTEM
page 10
