ADDAC713 Assembly Guide
ADDAC SYSTEM
STEP 1:

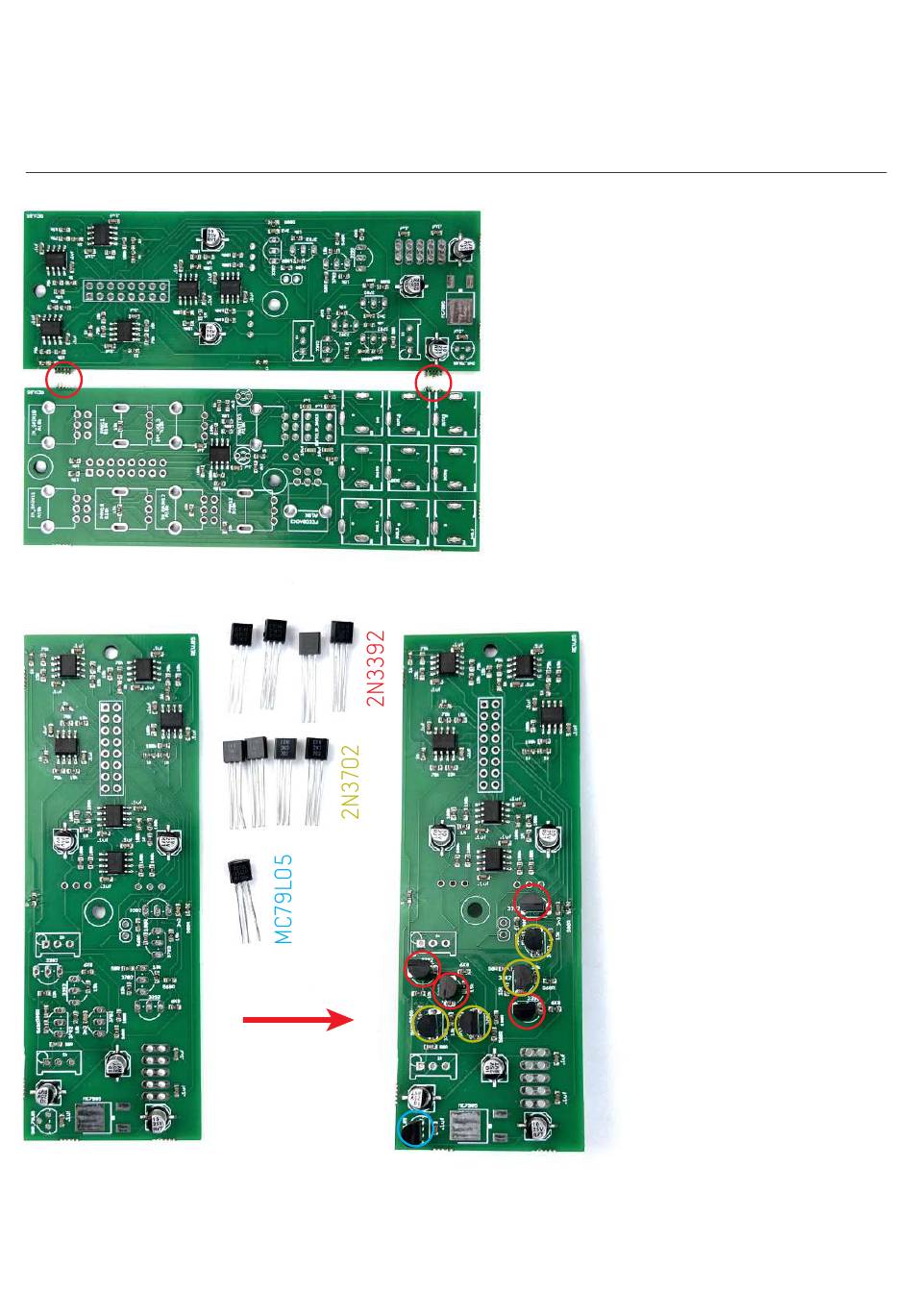

Grab the pcb, gently brake it apart and trim the
excess with a cutting plier.
STEP 2:
Locate all TO-92 parts and sepa-
rate them as shown here.
Notice the orientation of the part
printed on the pcb and place them
in their respective places.
Proceed by soldering them and
trim the excess legs.
page 3
