Giant ENERGYPAK PLUS 200 Installation & User Manual

ENERGYPAK PLUS 200
INSTALLATION & USER MANUAL
1. CONTENTS
Due to UN transportation regulations, the EnergyPak Plus 200 battery (A) is packaged separately from the EnergyPak Plus
200 mounting kit (B). Both packages (A+B) are necessary to mount and use the EnergyPak Plus 200 on a compatible Giant/
Liv E-Bike.

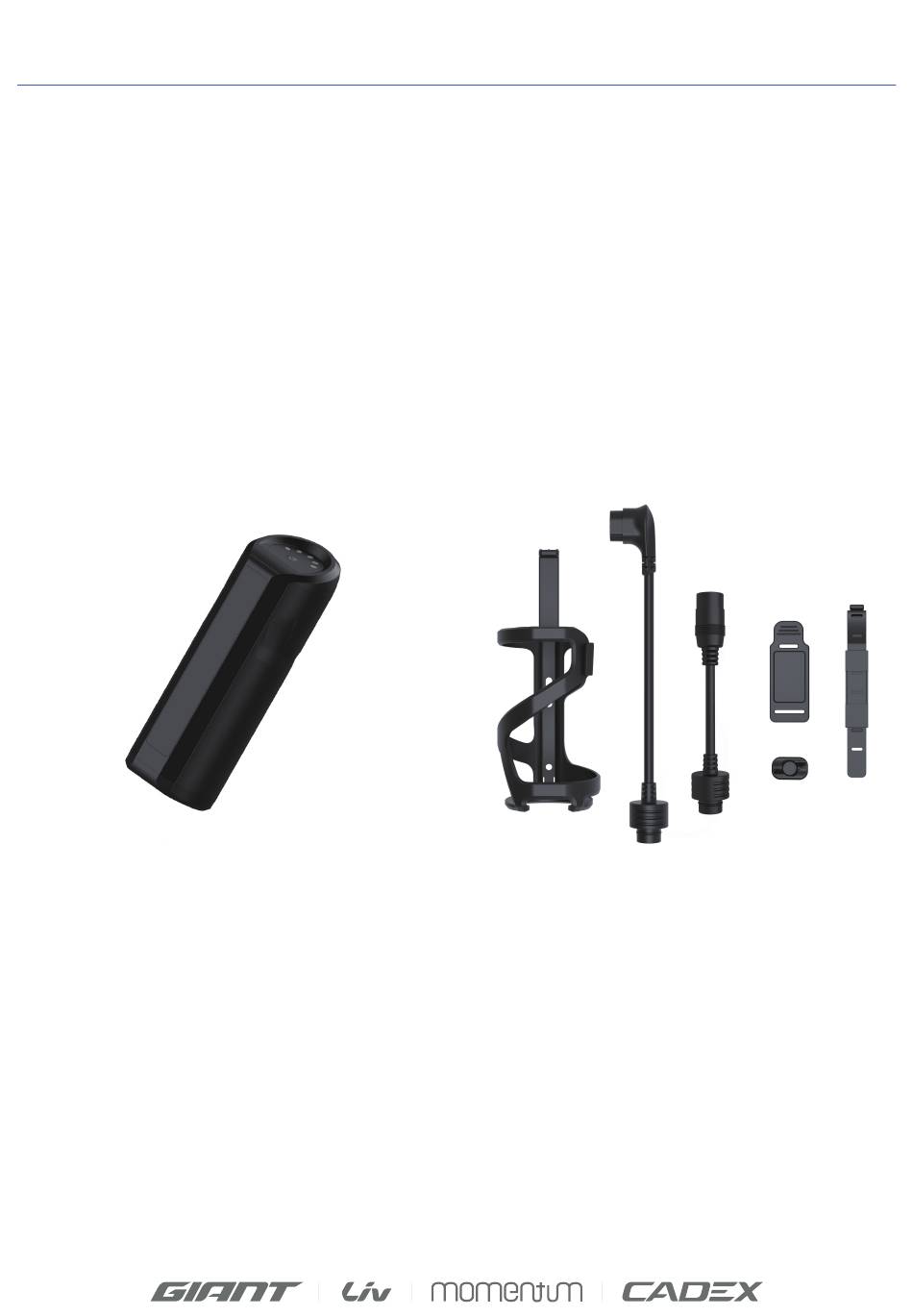

The complete set of battery and mounting kit includes the following items:
A - EnergyPak Plus Package:

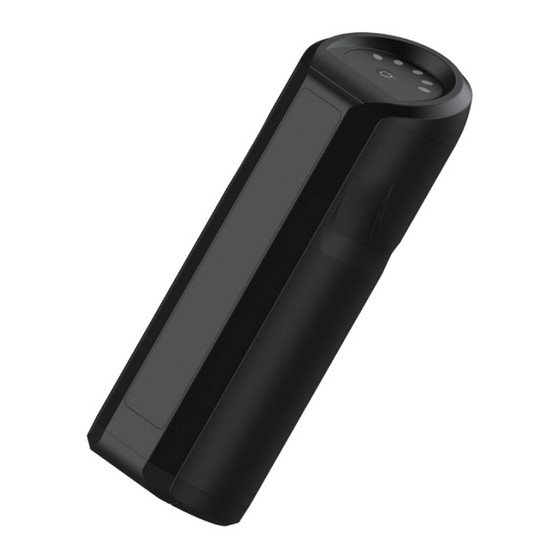

I. 1x EnergyPak Plus 200 Battery
I.
2. SPECIFICATIONS
Type: Lithium-Ion
Voltage: 36 V
Capacity: 5560 mAh
Dimensions: 217 mm * 75 mm * 72 mm
Weight: 1.1kg
B - Mounting kit Package:
II. 1x Battery cage
III. 1x Connector cable
IV. 1x Charger adapter cable
V. 1x fixed strap
VI. 1x Cable holder
VII. 1x Cable strap
II.
Operating temp. (charge):
Operating temp. (discharge):
Storage temp. (short term):
Storage temp. (long term):
V.
VI.
IV.
III.
0° C ~ 45° C
-20° C ~ 60° C
-20° C ~ 50° C
less than 3 months: -20~40°C;
less than 1 year: -20~20°C
VII.
1 / 6
