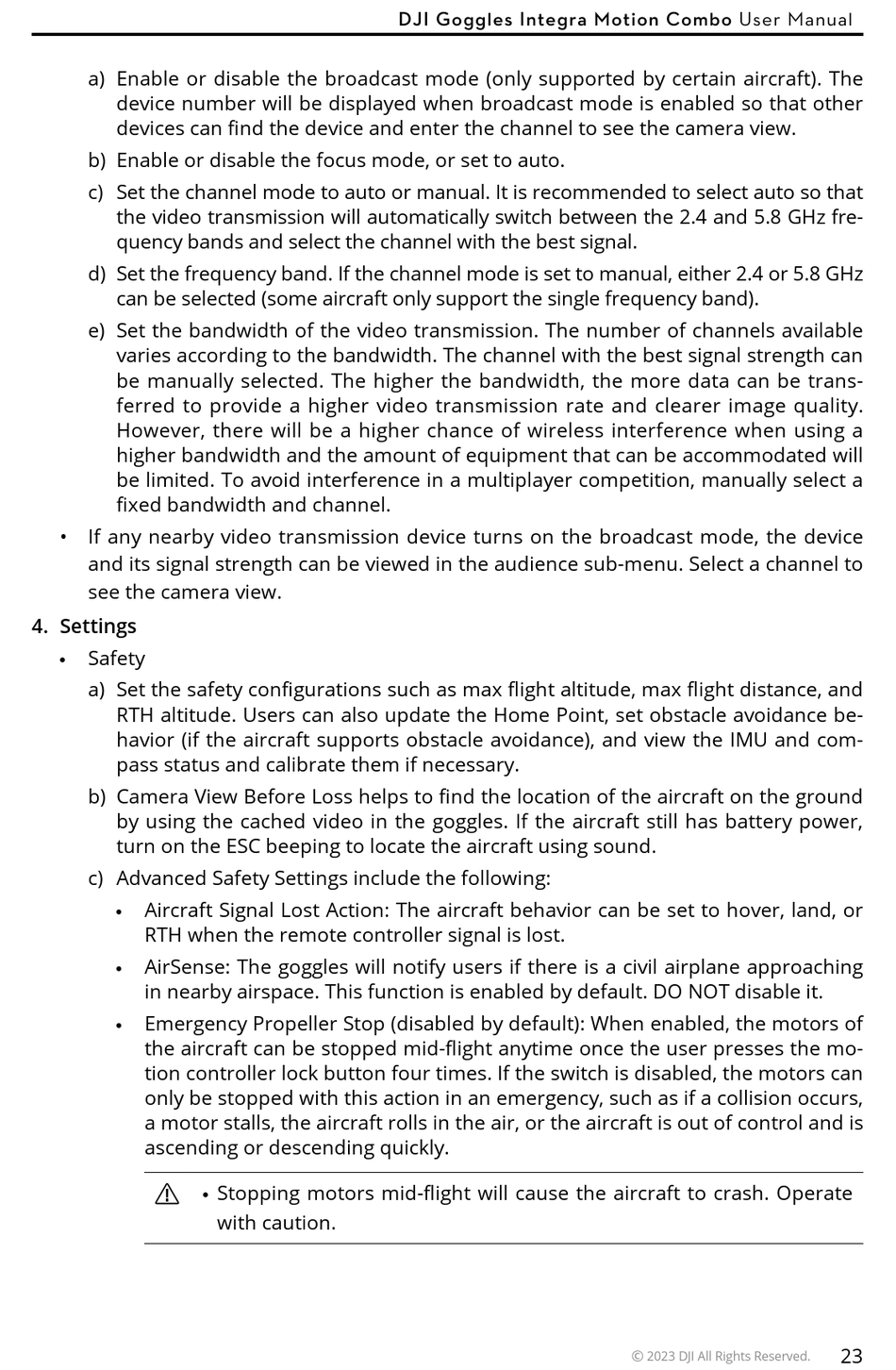

dji GOGGLES INTEGRA MOTION COMBO User Manual page 23

a) Enable or disable the broadcast mode (only supported by certain aircraft). The
device number will be displayed when broadcast mode is enabled so that other
devices can find the device and enter the channel to see the camera view.
b) Enable or disable the focus mode, or set to auto.
c) Set the channel mode to auto or manual. It is recommended to select auto so that
the video transmission will automatically switch between the 2.4 and 5.8 GHz fre-
quency bands and select the channel with the best signal.
d) Set the frequency band. If the channel mode is set to manual, either 2.4 or 5.8 GHz
can be selected (some aircraft only support the single frequency band).
e) Set the bandwidth of the video transmission. The number of channels available
varies according to the bandwidth. The channel with the best signal strength can
be manually selected. The higher the bandwidth, the more data can be trans-
ferred to provide a higher video transmission rate and clearer image quality.
However, there will be a higher chance of wireless interference when using a
higher bandwidth and the amount of equipment that can be accommodated will
be limited. To avoid interference in a multiplayer competition, manually select a
fixed bandwidth and channel.
• If any nearby video transmission device turns on the broadcast mode, the device
and its signal strength can be viewed in the audience sub-menu. Select a channel to
see the camera view.
4. Settings
Safety
a) Set the safety configurations such as max flight altitude, max flight distance, and
RTH altitude. Users can also update the Home Point, set obstacle avoidance be-
havior (if the aircraft supports obstacle avoidance), and view the IMU and com-
pass status and calibrate them if necessary.
b) Camera View Before Loss helps to find the location of the aircraft on the ground
by using the cached video in the goggles. If the aircraft still has battery power,
turn on the ESC beeping to locate the aircraft using sound.
c) Advanced Safety Settings include the following:
Aircraft Signal Lost Action: The aircraft behavior can be set to hover, land, or
RTH when the remote controller signal is lost.
AirSense: The goggles will notify users if there is a civil airplane approaching
in nearby airspace. This function is enabled by default. DO NOT disable it.
Emergency Propeller Stop (disabled by default): When enabled, the motors of
the aircraft can be stopped mid-flight anytime once the user presses the mo-
tion controller lock button four times. If the switch is disabled, the motors can
only be stopped with this action in an emergency, such as if a collision occurs,
a motor stalls, the aircraft rolls in the air, or the aircraft is out of control and is
ascending or descending quickly.
Stopping motors mid-flight will cause the aircraft to crash. Operate
with caution.
