  • Page 1 User Manual v1.0 2023.03...
  • Page 2  Navigating to a Topic View a complete list of topics in the table of contents. Click on a topic to navigate to that section.  Printing this Document This document supports high resolution printing.   © 2023 DJI All Rights Reserved.

  • Page 3: Using This Manual

    5.8 GHz is not supported in some regions. This frequency band will automatical- ly be disabled when the aircraft is activated or connected to the DJI™ Fly app in these regions. Observe local laws and regulations.

  • Page 4: Table Of Contents

    Table of Content Using this Manual Legend Before Flight Video Tutorials Download the DJI Fly App Download DJI Assistant 2 (Consumer Drones Series) Overview DJI Goggles Integra DJI RC Motion 2 Getting Started Preparing the Goggles Preparing the Motion Controller...
  • Page 5 Firmware Update and Device Maintenance Firmware Update Storing the Goggles Cleaning and Maintenance Replacing the Foam Padding After-sales Information Appendix Specifications Low Blue Light Statement   © 2023 DJI All Rights Reserved.

  • Page 6: Overview

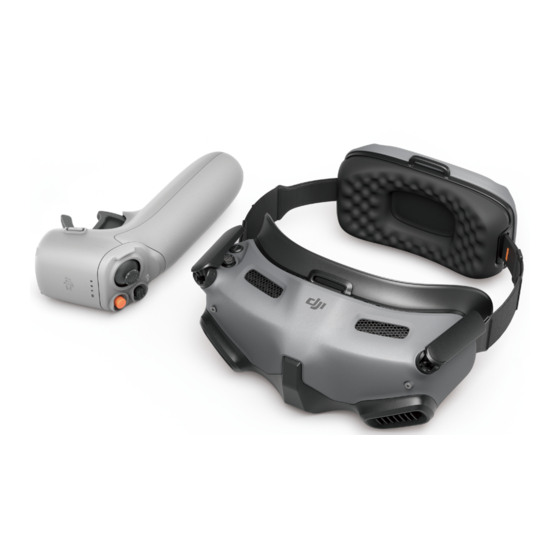

    DJI aircraft, giving a real-time aerial FPV (First Person View) experience. When used with the DJI RC Motion 2 (hereinafter referred to as motion controller), users can easily and intuitively control the aircraft.

  • Page 7: Dji Rc Motion 2

    DJI Goggles Integra Motion Combo User Manual 9. Battery Level LEDs 10. Power Button/Link Button Press once to check the current battery level. Press, and then press and hold to power the goggles on or off. When powered on, press and hold the button to initiate linking.
  • Page 8 DJI Goggles Integra Motion Combo User Manual Brake: press once to make the aircraft brake and hover in place. Press again to un- lock the attitude. When the aircraft is performing RTH or auto landing, press the button once to can- cel RTH or landing.

  • Page 9: Getting Started

    Identify the shortest cut edge (a), the longest cut edge (b), and the side cut edge (c), as shown in the diagram below.   © 2023 DJI All Rights Reserved.
  • Page 10 DJI Goggles Integra Motion Combo User Manual 3. Distinguish the left and right frames and the corresponding lens, then install the lenses into the frames. Make sure that the shortest cut edge (a), the longest cut edge (b), and the side cut edge (c) of the lens are aligned with the corresponding line marks on the frame respectively.
  • Page 11 DJI Goggles Integra Motion Combo User Manual Installing the Headband and Unfolding the Antennas The battery wires are embedded in the headband. DO NOT pull the headband with force to avoid damaging the wires. Fold the antennas to avoid damage when the goggles are not in use.
  • Page 12 DJI Goggles Integra Motion Combo User Manual Powering on Battery Level LEDs Power Button Press the power button once to check the current battery level. Press, and then press and hold the power button to power on the goggles. The battery level LEDs display the power level of the battery during charging and dis- charging.

  • Page 13: Preparing The Motion Controller

    DJI Goggles Integra Motion Combo User Manual The table below shows the battery level LED status during charging. LEDs Battery Level 1%-50% 51%-75% 76%-99% 100% Preparing the Motion Controller Battery Level LEDs Power Button Press the power button once to check the current battery level.

  • Page 14: Activation

    Activate and update the firmware before using the device for the first time. Connect the USB-C port of the goggles to the mobile device, and run the DJI Fly app. Fol- low the on-screen instructions to activate the device and update the firmware. Make sure the mobile device is connected to the internet during activation.

  • Page 15: Linking

    DJI Goggles Integra Motion Combo User Manual Use the USB-C OTG cable provided to connect if you are using a USB-A to USB-C cable. The goggles only support standard USB-C protocols and MFI-certified Lightning cables. Non-standard cables are not supported. If the devices do not respond after connecting, use a different data cable and try again.
  • Page 16 Press the power button on the goggles to stop the process if the goggles fail to link with the aircraft. Connect the goggles to a mobile device, run the DJI Fly app, tap Connection Guide, and then follow the on-screen instructions to link.

  • Page 17: Wearing The Goggles

    DJI Goggles Integra Motion Combo User Manual Wearing the Goggles 1. Wear the goggles after the devices are powered on and the image transmission is dis- played. 2. Slide the IPD sliders left and right to adjust the distance between the lenses until the images are properly aligned.

  • Page 18: Dji Goggles Integra

    Press to return to the previous menu or exit the current view. Goggles FPV View The actual screen interface may differ from the descriptions in this manual and vary depending on the aircraft used and the firmware version of the goggles.   © 2023 DJI All Rights Reserved.
  • Page 19 DJI Goggles Integra Motion Combo User Manual 1. Flight Direction Indicator When controlling the aircraft with the motion controller, it indicates the direction in which the aircraft is heading. 2. Storage Information Displays the remaining capacity of the aircraft or goggles storage. A flashing icon will appear when recording to display the recording time.

  • Page 20: Shortcut Menu

    DJI Goggles Integra Motion Combo User Manual Shortcut Menu Toggle the 5D button backward to open the shortcut menu from the FPV view and access the quick control of the following functions: Take a photo, or start/stop recording Enable/disable Enhanced Display...

  • Page 21: Camera Settings

    DJI Goggles Integra Motion Combo User Manual Camera Settings Toggle the 5D button forward to open the camera settings panel from the FPV view and change camera-related parameters. 15min 15min 10min 10min 锁屏 Manual Shutter Aperture Mode 1/200 Manual 1200K  ...

  • Page 22: Goggles Menu

    DJI Goggles Integra Motion Combo User Manual Goggles Menu Press down the 5D button or toggle it to the right to open the menu from the FPV view. The actual menu options may differ from the descriptions in this manual and vary depending on the aircraft used and the firmware version of the goggles.
  • Page 23 DJI Goggles Integra Motion Combo User Manual a) Enable or disable the broadcast mode (only supported by certain aircraft). The device number will be displayed when broadcast mode is enabled so that other devices can find the device and enter the channel to see the camera view.
  • Page 24 DJI Goggles Integra Motion Combo User Manual Control a) Configure remote controller-related functions, such as setting the stick mode, customizable buttons, and calibrating the IMU and compass. b) Calibrate the motion controller, or view the tutorial video. c) Calibrate the gimbal, adjust the gimbal tilt speed, set the unit, or use the turtle mode to flip the overturned aircraft upright (only certain aircraft support the tur- tle mode).

  • Page 25: Sleep Mode

    DJI Goggles Integra Motion Combo User Manual Sleep Mode If the goggles are idle for over 40 seconds of inactivity after being powered on, the goggles will enter sleep mode and the screen will power off. Shaking the goggles within 5 minutes will power on the screen.

  • Page 26: Formatting The Microsd Card

    DJI Goggles Integra Motion Combo User Manual Formatting the microSD Card To format the microSD card, do the following: 1. Press down the 5D button to open the menu from the FPV view. 2. Select Settings > Camera > Format.

  • Page 27: Dji Rc Motion 2

    Stopping Aircraft Motors Mid-flight: if an emergency occurs (such as a collision or the aircraft is out of control) during flight, pressing the lock button four times can stop the air- craft motors immediately. Stopping motors mid-flight will cause the aircraft to crash. Operate with caution.   © 2023 DJI All Rights Reserved.
  • Page 28 DJI Goggles Integra Motion Combo User Manual Joystick Toggle up or down to make the aircraft ascend or descend. Toggle left or right to make the aircraft horizontally move left or right. After the aircraft motors are started by double-pressing the lock button, slowly push the joystick up to make the aircraft take off.

  • Page 29: Controlling The Camera

    DJI Goggles Integra Motion Combo User Manual The flying speed controlled by the joystick and the accelerator can be configured as below: 1. Press down the 5D button to open the menu from the FPV view 2. Select Settings > Control > Motion Controller > Gain Tuning, then set the maximum speed in each direction.

  • Page 30: Motion Control

    DJI Goggles Integra Motion Combo User Manual Motion Control The orientation of the aircraft can be controlled by tilting the motion controller left and right. Tilt left to rotate the aircraft counterclockwise and tilt right to rotate clockwise. The circle in the goggles screen will move left and right and the image transmission will change accordingly.

  • Page 31: Motion Controller Alert

    DJI Goggles Integra Motion Combo User Manual Motion Controller Alert The remote controller sounds an alert when the battery level is between 6% and 15%. A low battery level alert can be canceled by pressing the power button. A critical battery level alert will sound when the battery level is less than 5% and cannot be canceled.
  • Page 32 Firmware Update Use one of the following methods to update the firmware: 1. Use the DJI Fly app to update the firmware for the entire set of devices including the aircraft, goggles, and motion controller. 2. Use DJI ASSISTANT™ (Consumer Drones Series) to update the firmware for a single device.
  • Page 33 DJI Goggles Integra Motion Combo User Manual Storing the Goggles When the goggles are not in use, store it in the following way: 1. Fold the antennas and unhook the headband. 2. Rotate the headband adjustment knob counterclockwise to loosen the headband to the longest position.
  • Page 34 DJI Goggles Integra Motion Combo User Manual Cleaning and Maintenance Wipe and clean the surface of the goggles with a dry and soft cloth. Use the provided lens cleaning cloth to clean the lenses in a circular motion from the center to the outer edges.
  • Page 35 After hearing a "click," check and make sure that there is no gap between the foam padding and the goggles. After-sales Information Visit https://www.dji.com/support to learn more about after-sales service policies, repair services, and support.  ...
  • Page 36 Kingston Canvas React Plus U3 V90 A1 256GB microSDXC ® Samsung EVO Plus U3 V30 A2 512GB microSDXC Integrated Battery Capacity 2450 mAh Battery Voltage 5.6-8.4 V Battery Type Li-ion Battery Chemical System LiNiMnCoO2 Energy 17.64 Wh   © 2023 DJI All Rights Reserved.
  • Page 37 DJI Goggles Integra adopts micro-OLED eye-protection screens, which can effectively reduce the high-energy shortwave blue light and its emission range, therefore protecting users from exposure to harmful blue light. DJI Goggles Integra has obtained the Low Blue Light certification.
  • Page 38 This content is subject to change without notice. Download the latest version from DJI website. https://www.dji.com/goggles-integra/downloads If you have any questions about this document, please contact DJI by sending a message to: DocSupport@dji.com is a trademark of DJI. Copyright © 2023 DJI All Rights Reserved.
