DJI Goggles
User Guide
2017.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Goggles and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji Goggles

Summary of Contents for dji Goggles

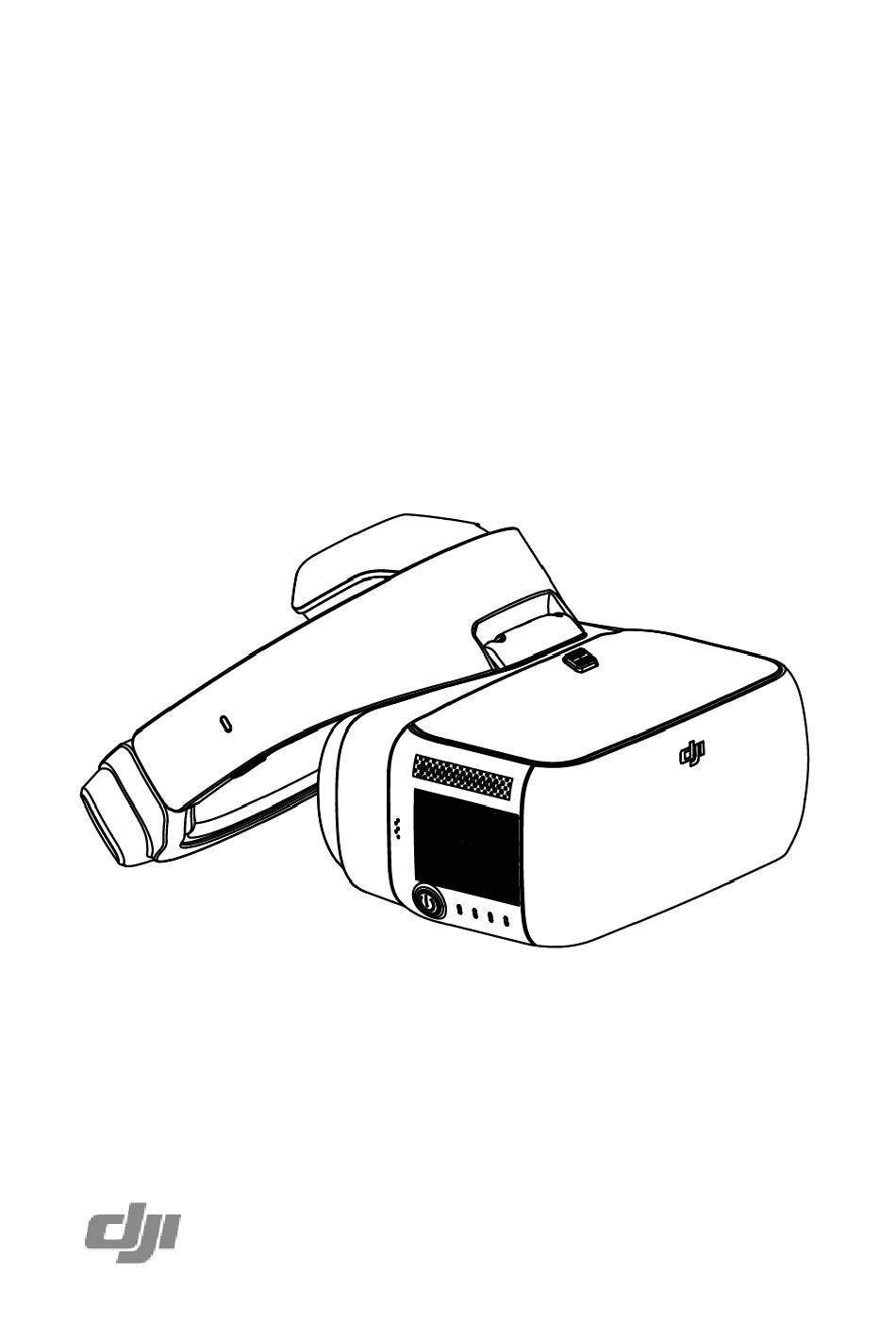

  • Page 1 DJI Goggles User Guide 2017.01...

  • Page 2: Product Profile

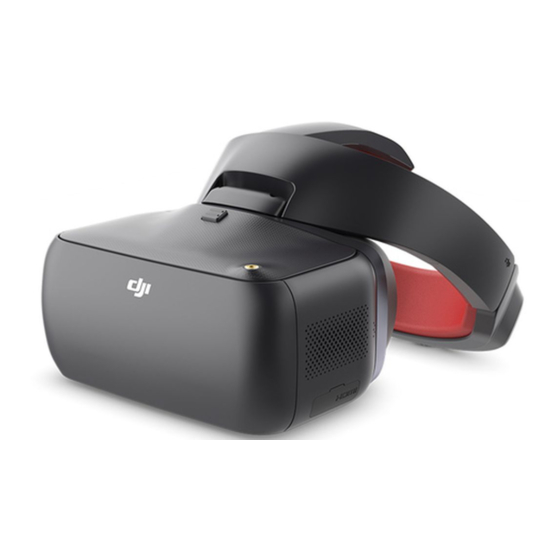

    DJI Goggles (abbreviated as “Goggles”) is equipped with high-performance displays and an ultra-low latency video downlink for use with DJI aircraft, giving you a real-time aerial FPV (First Person View) experience. Goggles can also be used to play HD videos, bringing you an immersive high-definition viewing experience.
  • Page 3 7. Heat Vent 8. Micro SD Card Slot 9. Audio Port 10. HDMI Port 11. Speaker 12. Strap Knob 13. Charging/Upgrade Port (Micro USB) 14. Back Button 15. Focus Button 16. Link Button 17. Linking Status Indicator 18. IPD (Interpupillary Distance) Knob...

  • Page 4: Installation And Wearing

    2. Align the lenses over your eyes and pull the strap down. Adjust the Strap Knob fit the Goggles snugly and comfortably. 3. Turn the IPD Knob to adjust the distance between the lenses until images are...
  • Page 5 Goggles can be worn over glasses.  When putting the Goggles on, flip the lens portion to see outside the  goggles. Flip it back down for immersion.

  • Page 6: Controls And Operations

    [1] Power Button Press the Power Button once, the press again and hold for 2 seconds to turn the Goggles on/off. Battery Level Indicators will display the current battery level. [2] Battery Level Indicators When the battery is off, press the Power Button once to light up Battery Level Indicators to display the current battery level.
  • Page 7 Use the touch panel with your right hand to control on-screen operations. Action Description Swipe forward/backward Browse the menu and scroll right/left with one finger Swipe upward/downward Browse the menu and scroll up/down with one finger In the Main view, swipe upward to hide warnings Swipe backward with two Lock the touch panel.
  • Page 8 Indicates the linking status of the Goggles and the Mavic Pro. The indicator will be solid red while linking, and it will go solid green when linked. Connection Goggles supports a wide range of DJI aircraft and different uses. Follow the steps below to connect. Mavic Pro Goggles connect wirelessly to the Mavic Pro using OcuSync.
  • Page 9 FPV for more intuitive control. By moving their head, the Goggles wearer can control aircraft orientation or gimbal movement. If the Remote Controller and Goggles are operated by the same user,  a spotter able to instruction and warnings is required to ensure safe flying.

  • Page 10: Main Screen

    4. Choose “Normal” and confirm. The Goggles’ linking status indicator will go solid red to wait for linking. 5. Press the Linking Button on the Mavic Pro. Once linked, the Goggles’ linking status indicator will turn solid green. Toggle the control mode switch of the Remote Controller to RC mode ...
  • Page 11 TapFly, ActiveTrack and focus. 5. Connection Status Indicates the connection status of the aircraft and Goggles. Green indicates that the connection is good, yellow indicates that the connection signal is weak or unstable, and red indicates disconnected. Goggles will attempt to reconnect if...
  • Page 12 10. Intelligent Flight Mode Tap to select TapFly, ActiveTrack, Terrain Follow and Tripod Modes. 11. Tools Tap to set the Goggles’ settings, select Auto Takeoff/Landing, HDMI video playback or flight photos/videos playback. 12. Camera Settings/Shoot/Record Button Tap to set ISO, shutter, aperture and auto exposure values of the camera.

  • Page 13: Controlling The Aircraft

    Shortcut Menu Swipe downward with two fingers on the touch panel to enter the shortcut menu. Move the cursor and tap the touch panel to turn functions on/off. Goggles supports head tracking control, allows the aircraft follow head movements.  Motion-controlled flight...

  • Page 14: Video Play

    (-30° to 30°), and turn up and down to control the pitch of the gimbal (-90° to 30°). Video Play Watch flight videos or HD video content through the Goggles for an immersive viewing experience. Flight Photo/Video Select Tools > Replay to enter the playback page for flight photos and videos.

  • Page 15: Charging The Goggles

    Video Play Connect a video source to the Goggles with an HDMI cable, and select Tools > HDMI Input to view in HD. Set the brightness, volume and input source. Charging the Goggles Charging the Goggles 1. Connect the battery charger to a power outlet (100-240V, 50/60Hz).
  • Page 16 The Goggles’ battery is located on the strap. Connect the strap to the  charger for charging. The battery is fully charged when the Charging Status Indicator turns off. A standard charger is recommended for charging. It takes  approximately 4 hours to fully charge the battery. Other chargers may...

  • Page 17: Upgrading The Firmware

    Upgrading the Firmware Use DJI Assistant 2 to upgrade the Goggles. Power on the Goggles and connect it to a computer with a Micro USB cable. Launch DJI Assistant 2 and login with a DJI account. Select “Goggles” and click “Firmware Upgrade” on the left.

  • Page 18: Specifications

    Specifications Weight Lenses: 490 g Strap: 520 g Dimensions Lenses: 195×155×110 mm Strap (Folded): 255×205×92 mm 85° (single screen) Screen Size 5 inch×2 Interpupillary 58 – 70 mm Distance Range Screen Resolution 3840×1080 (single screen: 1920×1080) Operating Frequency 2.4 GHz Max.
  • Page 19 Battery Capacity 9440 mAh Battery Energy 35.44 Wh Max Operating Time 6 hrs Operating 32°F (0°C) - 104°F (40°C) Temperature Range I/O Interface Micro USB, audio jack, HDMI type D, Micro SD card slot HDMI Supported HDMI 1.4b, HDCP 1.4 Sensors Gyroscope, Accelerometer, Proximity sensor...

  • Page 20: Compliance Information

    This equipment has been tested and meets the FCC RF exposure guidelines. During testing, Goggles radios were set to their highest transmission levels and placed in positions that simulate normal use. Operate the Goggles according to the manual to keep compliance.
  • Page 21 CAN ICES-3 (B)/NMB-3(B) EU Compliance Statement SZ DJI TECHNOLOGY CO., LTD. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the RED Directive. A copy of the EU Declaration of Conformity is available online at www.dji.com/euro- compliance EU contact address: DJI GmbH, Industrie Strasse.
  • Page 22 時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 NBTC Warning Statement เครื ่ อ งโทรคมนาคมและ อุ ป กรณ์ น ี ้ มี ค วามสอดคล้ อ งตามข้ อ ก าหนดของ กทช. IFETEL Warning Statement “La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.”...
