WISE Lockzone Ceiling a
Instructions for Use
Symbol explanation
Symbols on the machine
This product complies with applicable EU
directives
Symbols in these Instructions for Use
Warning/Caution!
Risk of crushing
The document was originally written in Swedish
Application area

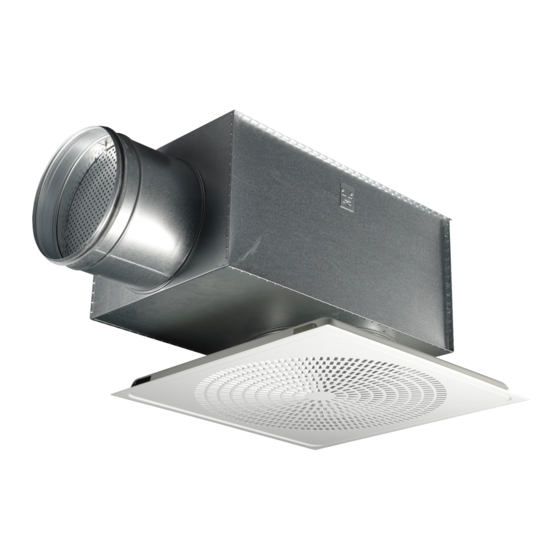

The product is a flow commissioning diffuser or constant
flow diffuser with integrated radio transmitter designed
for comfort ventilation indoors within Swegon's system
for demand-controlled ventilation WISE. The product
is used to regulate the supply air flow in the ventilation
duct.
The product may not be used for anything other than its
intended use.
General
Read through the entire instructions for use
before you install/use the product and save
the instructions for future reference. It's not
permissible to make changes or modifications
to this product other than those specified in
this document.
The packaging contains the following items
1 x WISE Lockzone C
1 x Instructions for use
Protective equipment
Always use appropriate personal protective
equipment for the work in question, in the
form of gloves, respirators and protective
glasses during handling, installation, cleaning
and service/maintenance.
Electrical safety
Permitted voltage, see "Electrical data".
It is not permissible to insert foreign objects
into the product's contactor connections
or the electronics's openings; risk for short
circuiting.
24 V isolation transformer to be connected should comply
with the provisions of IEC 61558-1.
Cable sizing must be carried out for cabling between the
product and the power supply source.
Disconnect the power supply when working on the prod-
uct and it is not required to be running.
Always follow the local/national rules for who shall be
permitted to carry out this type of electrical installation.
05/01/2023
Art. 1546062
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swegon WISE Lockzone Ceiling a
Summary of Contents for Swegon WISE Lockzone Ceiling a
- Page 1 The product is a flow commissioning diffuser or constant flow diffuser with integrated radio transmitter designed This product complies with applicable EU for comfort ventilation indoors within Swegon’s system directives for demand-controlled ventilation WISE. The product is used to regulate the supply air flow in the ventilation duct.
-
Page 2: Installation
• Check that the product is properly secured after it has been installed. • Use the product’s eyes to secure the cables with cable ties. • Check that all cables are properly secured in place after installation. Swegon reserves the right to alter specifications. 05/01/2023... -
Page 3: Installation Dimensions
Figure 2. Straight section requirements, circular ducts. 1-3: Quantity Ø before the product: 0 x Ø. 4: Quantity Ø before the product: 1 x Ø. 5: Quantity Ø before the product: 2 x Ø. *Cleaning hatch 05/01/2023 Swegon reserves the right to alter specifications. - Page 4 Orange Permanent Ground Water commissioning Violet Permanent Commissioning air/ Orange/Violet Alternating water Emergency mode Green/Red Alternating Service mode Blue Short flash every 5 s Connection of relay for connection of additional actuators Swegon reserves the right to alter specifications. 05/01/2023...
-
Page 5: Troubleshooting
• Check that the temperature sensor is connected to the modified or changed, unless such repair, modification right input. or change has been approved by Swegon AB; or (2) the serial number on the product has been made illegible or Cleaning is missing. - Page 6 Suspension of WISE Lockzone C and connection of WISE Quick Access - Open diffuser face POWER Figure 4. Suspension of WISE Lockzone C, connection of WISE Figure 5. Quick Access, dismantling the diffuser face. SMB. Swegon reserves the right to alter specifications. 05/01/2023...
- Page 7 WISE CU, see “Con- Figure 6. Dismantling the damper insert. Reassemble, in the nection”. Apply the new supplied QR codes over the existing QR reverse order. codes on the product. 05/01/2023 Swegon reserves the right to alter specifications.
-
Page 8: Technical Data
Building Materials Declaration WISE Lockzone C product datasheet WISE System Guide WISE User Manual WISE Project Planning Guide - Electricity & control WISE Project Planning Guide - Heating, cooling & ventilation Swegon reserves the right to alter specifications. 05/01/2023...
