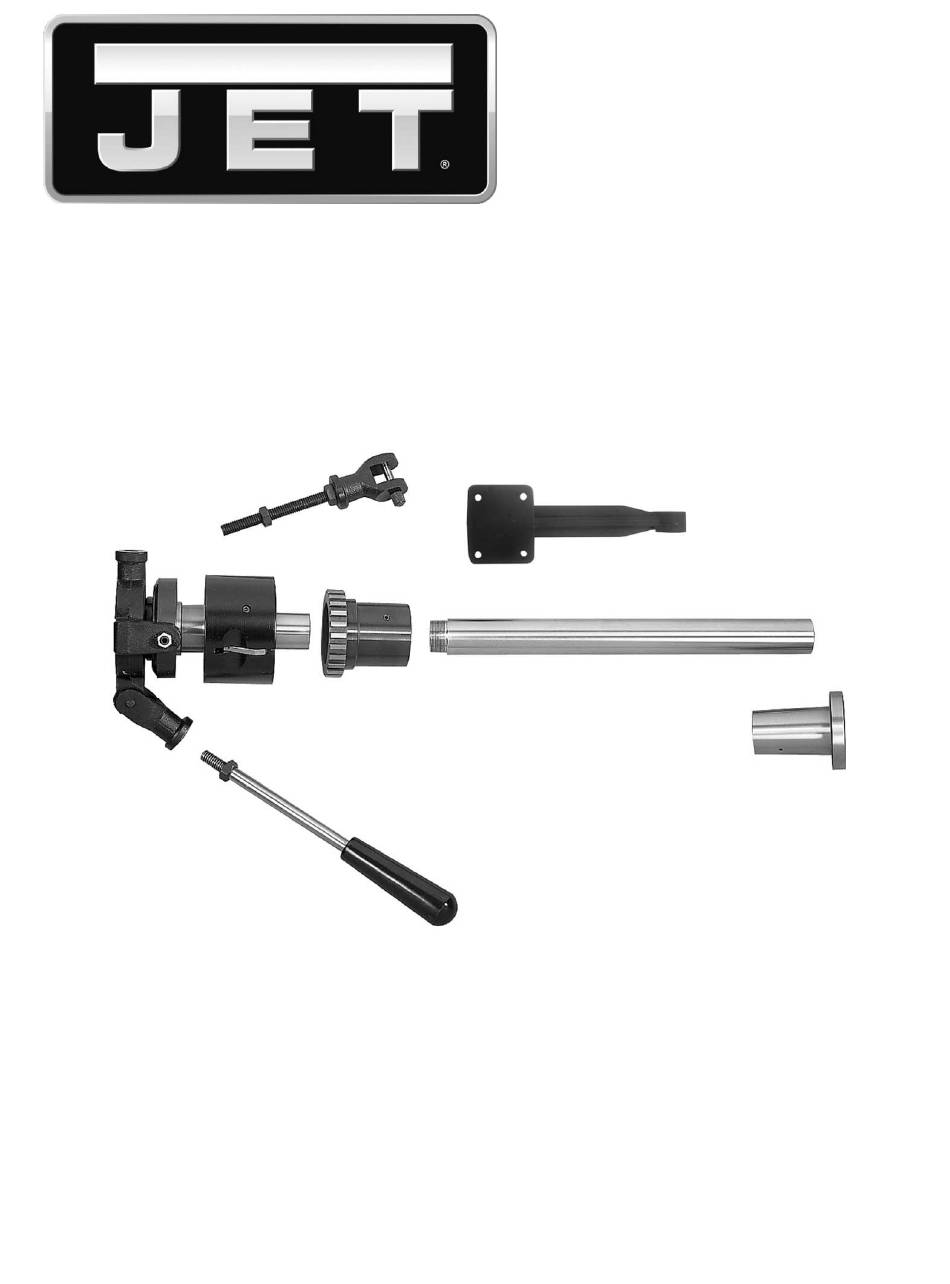

- Page 1 Assembly Instructions and Parts Manual 5C Collet Closer for E-1236VS ELITE Lathe 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-892006 Ph.: 800-274-6848 Edition 1 03/2017 www.jettools.com Copyright © 2017 JET...
-
Page 2: Important Safety Instructions
Do not use this product for other than its 19. Keep the floor around the machine clean and intended use. If used for other purposes, JET free of scrap material, oil and grease. disclaims any real or implied warranty and holds itself harmless from any injury that may result 20. - Page 3 27. Turn off the machine before cleaning. Use a 34. Do not exceed the maximum speed of the brush or vacuum to remove chips or debris — workholding device. do not use bare hands. 35. Do not exceed the clamping capacity of the 28.
- Page 4 Adjustments can be made by loosening three socket head cap screws (C, Figure 2). 2.0 Assembly Thread drawbar (A, Figure 3) into collet closer assembly (B, Figure 3) until it is flush with the Note: The following illustrations may or may not show your specific lathe model.
-
Page 5: Replacement Parts
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. - Page 6 3.1.1 Collet Closer for E-1236VS Lathe – Exploded View 3.1.2 Collet Closer for E-1236VS Lathe – Parts List Index No Part No Description Size ....892006 ...... 5C Collet Closer Kit (includes #1 thru 30)............1 ....C510350 ....Sleeve Coupling .................... 1 2 ....
-
Page 7: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... - Page 8 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
