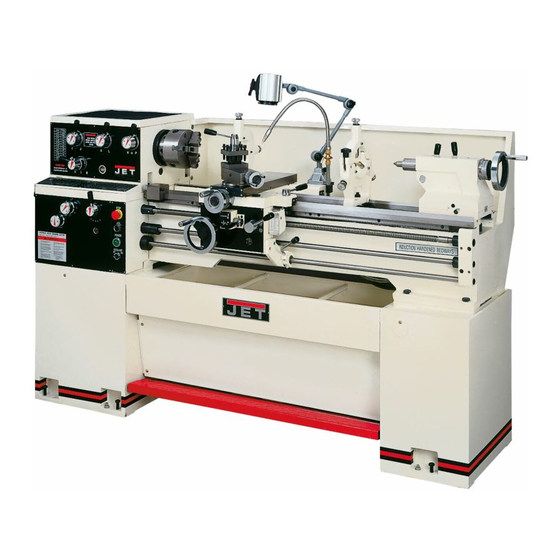

Jet gh-1340w lathe machine: specifications
Hide thumbs Also See for GH-1340W:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
JET EQUIPMENT & TOOLS, INC.
A WMH Company
www.jettools.com

PARTS LIST

GH-1340W/1440W Lathes
P.O. BOX 1349
Auburn, WA 98071-1349
e-mail jet@jettools.com
253-351-6000
Fax 253-939-8001
M-321810-1 6/00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GH-1340W and is the answer not in the manual?

Questions and answers

Related Manuals for Jet GH-1340W

Summary of Contents for Jet GH-1340W

  • Page 1: Parts List

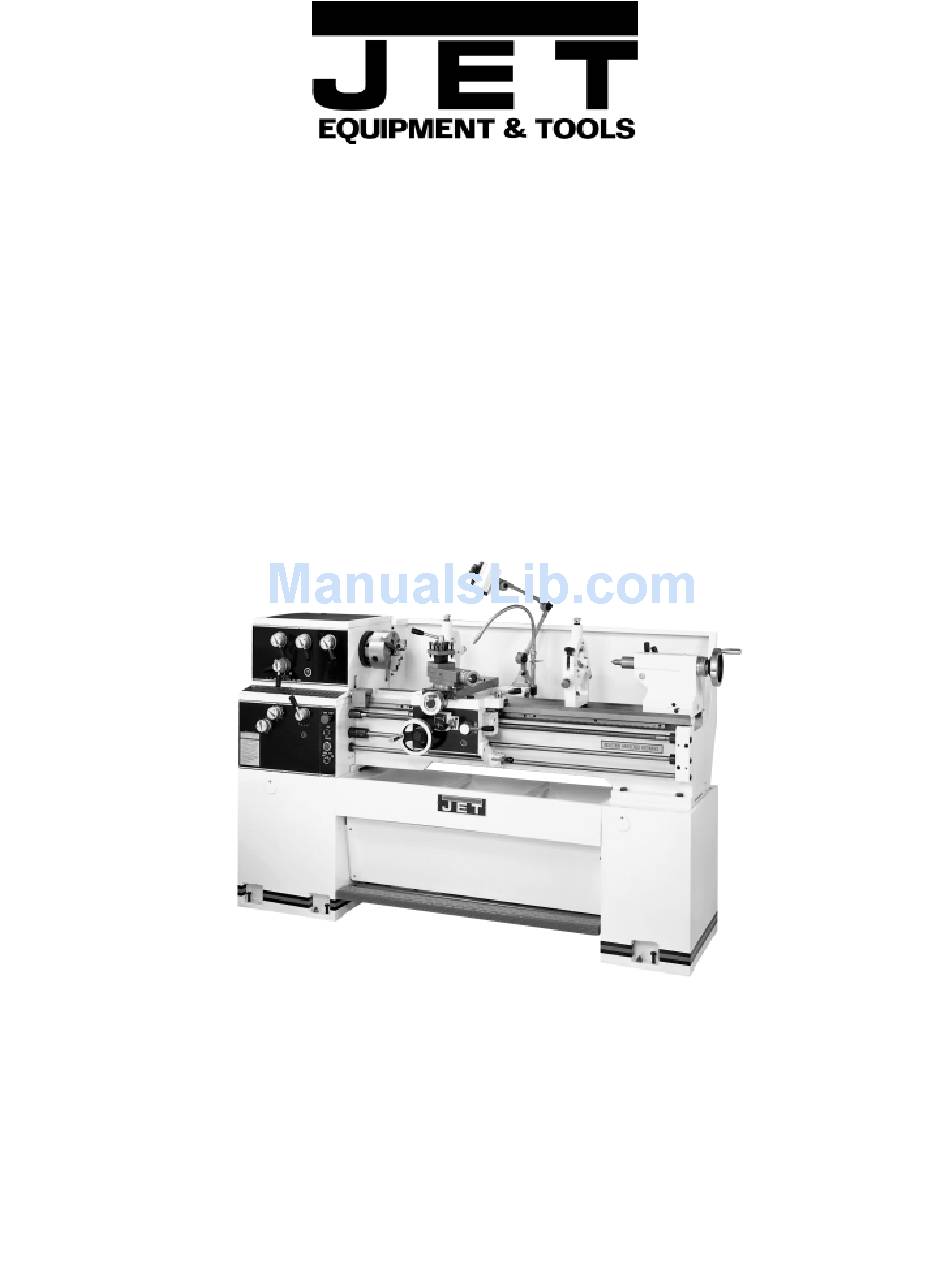

    GH-1340W/1440W Lathes JET EQUIPMENT & TOOLS, INC. A WMH Company www.jettools.com PARTS LIST P.O. BOX 1349 Auburn, WA 98071-1349 e-mail jet@jettools.com 253-351-6000 Fax 253-939-8001 M-321810-1 6/00...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ...2 Headstock Assembly I ...3-5 Headstock Assembly II ...6-7 Headstock Assembly III ...8-10 Gearbox Assembly I ...11-12 Gearbox Assembly II ...13-14 Gearbox Assembly III ...15-17 Apron Assembly I ...18-19 Apron Assembly II ...20-21 Carriage & Cross Slide Assembly ...22-24 Four Way Tool Post &...

  • Page 3: Headstock Assembly I

    Headstock Assembly I...
  • Page 4 Headstock Assembly I Index Part Description Size Quantity 1... GH1340A-04-06... Plug ..1 2... GH1440W-04-60... Headstock Cover ..1 3... TS-1503081 ... Hex Socket Cap Screw ... M6x35...6 4... GH1440W-04-61... Gasket ..1 5... GB3452.1-14X2.65 ... O-Ring ... 14x2.65...8 6... GH1440W-04-38... Gear ... 38T ...1 7...
  • Page 5 60... 04-90 ... Indicator Disk ..1 142... GB3452.9-25X2.65 ... O-Ring ... 25x2.65...3 159... GH1340W-04-02... Name Plate..1 ... GH1440W-04-02... Name Plate..1 ... GH-1340W-3J.B.S ... 3-Jaw Chuck (not shown) ..1 ... GH-1340W-4J.B.S ... 4-Jaw Chuck (not shown) ..1...

  • Page 6: Headstock Assembly Ii

    Headstock Assembly II...

  • Page 7: Headstock Assembly Ii

    107... GH1440W-04-13... Spline Shaft..1 108... GH1440W-04-24... Cover..1 109... TS-1503081 ... Hex Socket Cap Screw ... M6x35...4 157... 11-15 ... Brake Shoe Assembly ..1 164... VB-A73 ... V-Belt (GH-1340W-1/3 & GH-1440W-1...2 ... VB-A74 ... V-Belt (GH-1440W-3) ..2...
  • Page 8 Headstock Assembly III...

  • Page 9: Headstock Assembly Iii

    Headstock Assembly III Index Part Description Size Quantity 56... TS-1503031 ... Hex Socket Cap Screw ... M6x12...18 74... GB894.2-25 ... Retainer Ring... 25 ...6 82... GB/T276-6204 ... Ball Bearing ... 6204/p5 ...5 89... 04-53 ... Bearing Cap..2 90... 04-52 ... Bearing Cap Gasket..2 95...
  • Page 10 Index Part Description Size Quantity 153... 04-42 ... Spline Shaft (E)..1 154... 04-48 ... Housing Gasket ..1 155... 04-49 ... Housing ..1 156... GB9877.1-SD25X40X7 ... Spacer ... SD25x40x7 ...1 158... GH1440W-04-65... Collar..1 160... GH1440W-04-66... Balance Space..1 161...

  • Page 11: Gearbox Assembly I

    Gearbox Assembly I...

  • Page 12: Gearbox Assembly I

    Gearbox Assembly I Index Part Description Size Quantity 1... 05-73 ... Plug ..1 2... GH1440W-05-06... Gearbox Casting ..1 3... 05-07 ... Front Cover..1 4... TS-1532032 ... Flat Head Machine Screw ... M4x10...8 5... GH1440W-05-26... Oil Cover (14”) ..1 ...

  • Page 13: Gearbox Assembly Ii

    Gearbox Assembly II...

  • Page 14: Gearbox Assembly Ii

    Gearbox Assembly II Index Part Description Size Quantity 17... 05-49 ... Gear ... 16T ...1 18... GH893.1-19 ... Retainer Ring... 19 ...1 19... GB/T276-6198 ... Bearing ... 6198/p5 ...1 20... 05-51 ... Shaft ..1 21... TS-1523021 ... Set Screw ... M6x8...4 22...
  • Page 15 Gearbox Assembly III...

  • Page 16: Gearbox Assembly Iii

    Gearbox Assembly III Index Part Description Size Quantity 50... TS-1503041 ... Hex Socket Cap Screw ... M6x16...14 62... 05-42 ... Washer ..1 63... 05-41 ... Gear ... 50T ...1 64... TS-1503051 ... Hex Socket Cap Screw ... M6x20...3 65... 05-39 ... Flange ..1 66...
  • Page 17 Index Part Description Size Quantity 112 ... GH1440W-05-04... Shaft ..1 113 ... GH1440W-05-05... Shaft ..1 114 ... 05-18 ... Flange ..1 115 ... 05-53 ... Gasket ..1 116 ... 05-20 ... Nut..2 117 ... 05-22 ... Gear ... 32T ...1 118 ...

  • Page 18: Apron Assembly I

    Apron Assembly I...

  • Page 19: Apron Assembly I

    Apron Assembly I Index Part Description Size Quantity 1... TS-1503021 ... Hex Socket Cap Screw ... M6x10...2 2... 06-37 ... Half Nut..1 3... 06-36 ... Bracket ..1 4... TS-1503041 ... Hex Socket Cap Screw ... M6x16...2 5... 06-33 ... Gib..1 6...

  • Page 20: Apron Assembly Ii

    Apron Assembly II...

  • Page 21: Apron Assembly Ii

    Apron Assembly II Index Part Description Size Quantity 36... 06-44 ... Bushing ..1 37... 06-43 ... Shaft ..1 38... GB894.1-16 ... Retainer Ring... 16 ...1 39... 06-28 ... Gear ... 22T ...1 40... 06-26 ... Collar..1 41... GB879-5X35 ... Pin ... 5x35...1 42...

  • Page 22: Carriage & Cross Slide Assembly

    Carriage & Cross Slide Assembly...
  • Page 23 Carriage & Cross Slide Assembly Index Part Description Size Quantity 1... GH1440W-07-04... Gib..1 2... 07-28 ... Gib Adjusting Screw..2 3... GB818-M5X10 ... Pan Head Machine Screw... M5x10...5 4... GH1440W-07-12... Plate ..1 5... GH1440W-07-11 ... Plate Wiper ..1 6...
  • Page 24 Index Part Description Size Quantity 52... 07-23 ... Gib..1 53... GB6170-M6 ... Lock Nut ... M6 ...4 54... TS-1523061 ... Set Screw ... M6x20...4 55... TS-1504041 ... Hex Socket Cap Screw ... M8x20...6 56... GB4141.14-M10X50 ... Handle Knob ... M10x50...1 57...

  • Page 25: Four Way Tool Post & Compound Slide Assembly

    Four Way Tool Post & Compound Slide Assembly...

  • Page 26: Four Way Tool Post & Compound Slide Assembly

    Four Way Tool Post & Compound Slide Assembly Index Part Description Size Quantity 1... 07-32 ... Tool Post..1 2... GB83-10X50 ... Tool lock Screw... 10x50...8 3... GH1440W-07-20... Handle Hub..1 4... GH1440W-07-21... Handle Shaft ..1 5... GB4141.14-BM10X50 ... Knob ..1 6...

  • Page 27: Tailstock Assembly

    Tailstock Assembly...
  • Page 28 Tailstock Assembly Index Part Description Size Quantity 1... 08-09 ... Index Ring ..1 2... TS-1503051 ... Hex Socket cap Screw ... M6x20...3 3... GH1440W-08-07... Hub..1 4... GB301-8103 ... Thrust Bearing ... 8103 ...1 5... GB1096-4X20 ... Key ... 4x20...1 6...

  • Page 29: Bed Assembly

    Bed Assembly...
  • Page 30 Bed Assembly Index Part Description Size Quantity 1... GB818-M8X10 ... Pad Head Screw ... M8x10...6 2... GH1440W-12-01... Electrical Box Cover..1 3... TS-1540061 ... Hex Nut... M8 ...4 4... C6240-120003 ... Stud ..4 5... 12-05 ... Electrical Plate ..1 6...
  • Page 31 Index Part Description Size Quantity 52... GB119-16X40 ... Pin ... 16x40...1 53... 01-19 ... Pin ..1 54... 13-03 ... Index Ring ..1 55... GB879-3X5 ... Pin ... 3x5 ...1 56... 13-02 ... Shaft ..1 57... GH1440W-13-01... Bracket ..1 58...

  • Page 32: Stand Assembly

    Stand Assembly...
  • Page 33 Stand Assembly Index Part Description Size Quantity 1... GB818-M6X10 ... Pan Head Machine Screw... M6x10...3 2... GH1440W-01-23... Splash Guard ..1 3... GH1440W-01-05... Chip Tray ..1 4... GH1440W-01-07... Guide..2 5... GH1440W-01-06... Bracket ..2 6... GB818-M6X10 ... Pan Head Machine Screw... M6x10...4 7...

  • Page 34: End Gear Assembly

    End Gear Assembly...
  • Page 35 End Gear Assembly Index Part Description Size Quantity 1... 15-02 ... Gear ... 30T ...1 2... 15-04 ... Gear ... 40T ...1 3... TS-1502041 ... Hex Socket Cap Screw ... M5x16...1 4... 04-51 ... Washer ..1 5... 04-50 ... Gear ... 25T ...1 6...

  • Page 36: Follow Rest

    Index Part 1... GH1440W-09-02... Knob ..2 2... TS-1523011 ... Set Screw ... M6x6...2 3... 10B-04... Bushing ..2 4... 10B-05... Screw ..2 5... 10B-02... Sleeve ..2 6... 10B-06... Brass Finger ..1 7... TS-1540041 ... Hex Nut... M6 ...2 8...

  • Page 37: Thread Dial Assembly

    Index Part 1... 06-22 ... Dial ..1 2... GB879-3X12 ... Pin ... 3x12...1 3... 06-23 ... Shaft ..1 4... GB879-3X20 ... Pin ... 3x20...1 5... 06-25 ... Gear ... 32T ...1 6... 06-24 ... Body ..1 7... TS-1503101 ... Hex Socket Cap Screw ... M6x45...1 8...

  • Page 38: Steady Rest

    Steady Rest...

  • Page 39: Steady Rest

    Steady Rest Index Part Description Size Quantity 1... GH1440W-09-02... Knob ..3 2... TS-1523011 ... Set Screw ... M6x6...3 3... 10A-05... Bushing ..3 4... 10A-06... Screw ..3 5... 10A-07... Sleeve ..3 6... 10A-08... Brass Finger ..3 7...

  • Page 40: Coolant & Work Light Assembly

    Coolant and Work Light Assembly...

  • Page 41: Coolant & Work Light Assembly

    Coolant and Work Light Assembly Index Part Description Size Quantity 1... JC38 ... Work Light**..1 2... GHW-CW02... Cross Head Screw** ... M6x14...4 3... 14-03 ... Lamp Bracket**..1 4... TS-1503051 ... Hex Socket Cap Screw**... M6x20...2 5... 14-04 ... Connected Tube**..1 6...

  • Page 42: Electrical Components

    Electrical Components Index Part Description Size Quantity 1... GH1440W-KM1... Magnetic Starter (1 Phase, forward) ...1 ... GH1340A-KM1... Magnetic Starter (3 Phase, forward) ...1 2... GH1440W-KM2... Magnetic Starter (1 Phase, reverse) ...1 ... GH1340A-KM2... Magnetic Starter (3 Phase, reverse) ...1 3... GH1440W-KM3... Coolant Pump Contactor ..1 4...

  • Page 43: W Series Lathes Electrical Schematic Symbol Glossary

    9... GH1440W-SQ2... Door Switch (not shown) ..1 10... GH1440W-SA1 ... Power On /Off Switch (not shown)...1 11 ... GH1440W-SQ1... Brake Switch (not shown)..1 12... GH1440W-SB1 ... Off Switch (not shown) ..1 13... GH1440W-SB2 ... Jog Switch (not shown) ..1 14...

  • Page 44: Wiring Diagram 1 Phase

    Wiring Diagram 1 Phase...

  • Page 45: Wiring Diagram 3 Phase

    Wiring Diagram 3 Phase...
