ASSEMBLY INSTRUCTIONS
MODEL: PPPSTRAIGHT
Before assembly, please remove all parts from carton, verifying that you have the correct quantities, and read all the insructions.

In the Carton :

Self drilling screw
@ #6x1/2" = 28 pcs
M6x16 bolt
qty = 6 pcs
1. Lay the panels down on a flat clean surface for assembly
2. Remove the end caps (side trim) from the panels from both sides of each panel
3. Install 5 of the nylon clips face up (see image to the right) to the side being joined on one of the panels
a. Screw the nylon clips to the panels using 2 of the #6 x ½" Self drilling screws. There will be 3 holes
drilled in a triangular shape – leave the center hole empty
4. Install 5 of the nylon clips face down (see image to the right) to the side being joined on the other panel
a. Screw the nylon clips to the panels using 2 of the #6 x ½" Self drilling screws. There will be 3 holes
drilled in a triangular shape – leave the center hole empty
5. Install the V Base Castor Leg to the outside of the 2 connected panels,
following the instructions outlined in the V Base Leg, model #
PPPDELFOOTCPR, (sold separately).
6. Re-attach panel side trims to the outsides of the panels (the same sides
the V Base Caster Leg is on)
ATTENTION
! !
Ensure all bolts and screws are tightened, check bolts and screws every 6 months.
If any parts are missing, broken, damaged or worn, stop use of product until repairs have been made using factory authorized parts.
Failure to follow these warnings may result in injury.
Last Updated: 02/2021
Last Updated: 3/2023
In the Carton :

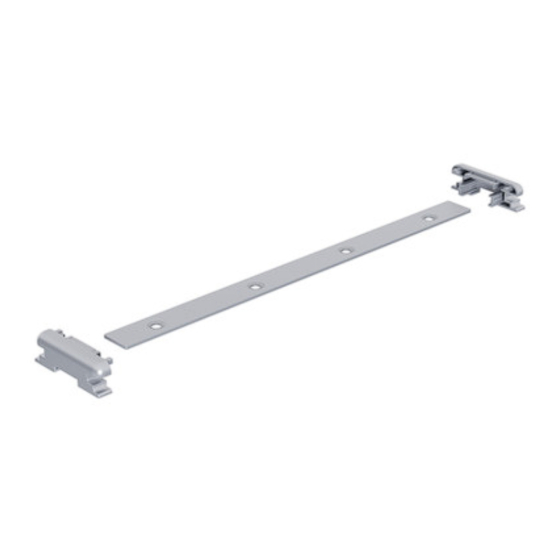

Flat Bracket (Tie Bracket)
qty = 2 pcs

Sold Separately :

(PPPDELFOOTCPR)
V base castor Leg
screw #10x5/8"
qty = 2 pcs
Qty = 8 pcs
In the Carton :
Nylon Clip
qty = 10 pcs
Leg bracket
nylon clip side
ASSEMBLY INSTRUCTIONS
MODEL NO. PPPSTRAIGHT
In the Carton :
Mid Cap
qty = 2 pcs
nylon clip
face-up
nylon clip
face-down
nylon clip side
1
