OFFICE FURNITUR E
ASSEMBLY INSTRUCTIONS
MODEL: PL 438T HALF
Before assembly, please remove all parts from carton, verifying that you have the correct quantities, and read all the instructions.
CONFIGURATION:
See Page 3
See Page 5
KLIX CAM INSTRUCTIONS
1
Line up Cam Lock,
turn clockwise.
Last Updated: 10/2021

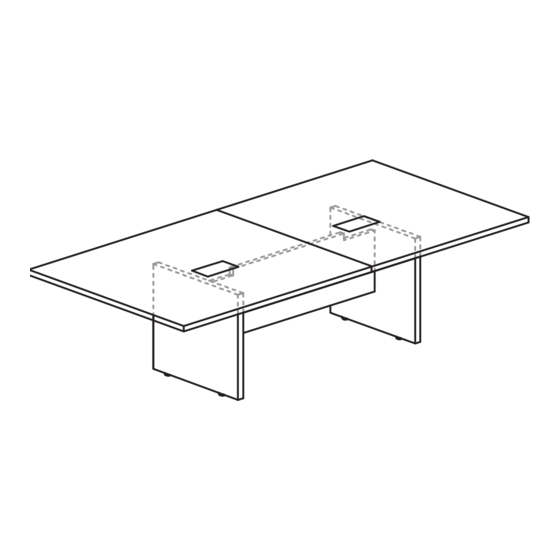

WITH END BASE
WITH CUBED BASE
See Page 6
2
Insert the cam with the arrow
pointing towards the hole in the
edge.
ASSEMBLY INSTRUCTIONS
See Page 4
See Page 6
WALL
WITH V-LEG/SQUARE
POST LEG BASE
3
Insert the Cam Lock into Klix
Cam. Turn Klix Cam to lock.
MODEL NO. PL438T HALF
®
Part 1 of 6
WITH ELLIPTICAL BASE
WITH V-LEG/U-LEG BASE
HINGES INSTRUCTIONS
DETAIL x-x
BACK VIEW
ADJUST THIS SCREW FOR DOOR ALIGNMENT
AFTER ASSEMBLY THE HINGES.
1 OF 6
OFFICESOURCE.COM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for OfficeSource PL438T HALF
Summary of Contents for OfficeSource PL438T HALF
- Page 1 ® ASSEMBLY INSTRUCTIONS MODEL NO. PL438T HALF ® OFFICE FURNITUR E ASSEMBLY INSTRUCTIONS MODEL: PL 438T HALF Part 1 of 6 Before assembly, please remove all parts from carton, verifying that you have the correct quantities, and read all the instructions.
- Page 2 ® ASSEMBLY INSTRUCTIONS ® ASSEMBLY INSTRUCTIONS MODEL NO. PL438T HALF OFFICE FURNITUR E MODEL: PL 438T HALF Part 2 of 6 COMPONENTS: Top Panel for PL438T HALF x 2 FOR END BASE Modesty Panel x End Base x 2 Center Base...
- Page 3 ® ASSEMBLY INSTRUCTIONS ® MODEL NO. PL438T HALF OFFICE FURNITUR E ASSEMBLY INSTRUCTIONS MODEL: PL 438T HALF Part 3 of 6 INSTRUCTION: ASSEMBLING TABLE WITH END PANEL BASE Attach the two End Base (C) and Center Base (E) to Modesty Panel (B) by using Cam Lock (C1) and Klix Cam (C2).
- Page 4 ® ASSEMBLY INSTRUCTIONS ® MODEL NO. PL438T HALF OFFICE FURNITUR E ASSEMBLY INSTRUCTIONS MODEL: PL 438T HALF Part 4 of 6 INSTRUCTION: ASSEMBLING TABLE WITH ELLIPTICAL BASE & & D & & Attach metal plate to Elliptical Base (D)&(F) Screw Adjustable Glides (D4)&(F4) into with included screws.
- Page 5 ® ASSEMBLY INSTRUCTIONS ® MODEL NO. PL438T HALF OFFICE FURNITUR E ASSEMBLY INSTRUCTIONS MODEL: PL 438T HALF Part 5 of 6 INSTRUCTION: ASSEMBLING TABLE WITH CUBED BASE Screw Adjustable Glide (G5) into bottom of End Base (C,D). Assemble Cube Base by attaching Side Panels(C)&(D) to Back Panels(E),Top...
- Page 6 ® ASSEMBLY INSTRUCTIONS ® MODEL NO. PL438T HALF OFFICE FURNITUR E ASSEMBLY INSTRUCTIONS MODEL: PL 438T HALF Part 6 of 6 INSTRUCTION: ASSEMBLING TABLE WITH V-LEG BASE H2 I1 Attach PLT V-Legs(E) to Top Panel(A) by using Attach Screws #6 x 16mm P/H Cross #4 x 16mm(H2/I1) to Recess Screws(I1).
