IV. SETUP AND OPERATING INSTRUCTIONS- cont.
B B B B - - - - PATIENT CIRCUIT CONNECTIONS PATIENT CIRCUIT CONNECTIONS PATIENT CIRCUIT CONNECTIONS PATIENT CIRCUIT CONNECTIONS
WARNING: A patient filter should always be used in the patient breathing circuit to
prevent cross contamination
WARNING: Do not re-use disposable breathing circuits.
NOTES
When using a patient filter, connect
it directly to the patient connector on
the side of the Crossvent (or O2 tee
if the sensor is being used) and then
connect the patient circuit (or 24"
hose if using a humidifier) to the filter.
For use with a
support arm, clip
the holding arm
onto the exhalation
valve as shown here
and then capture the
ball in the support
arm.
When using a humidifier, use the 24"
hose between the Crossvent and
humidifier. Then connect the circuit
to the output of the humidifier and
make all the connections as would
normally be made.
Oxygen Sensor
w/ Tee
(use is optional)
Patient Filter
goes here
Exhalation
Striped
Clear
Tube
Tube
To The Patient
Pneumotach
Adult circuit, catalog #80011, shown

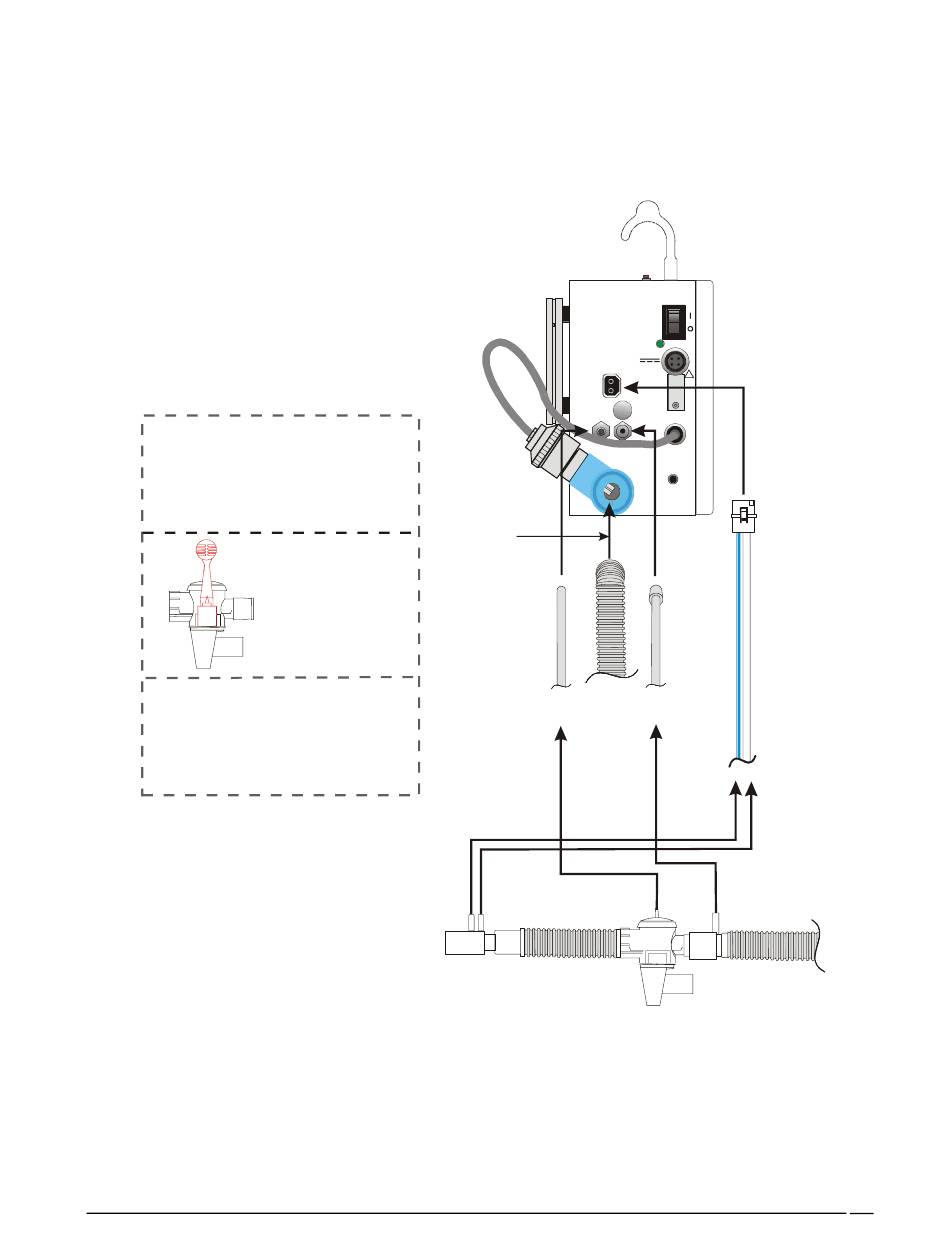

FIG. 8- CIRCUIT SETUP
POWER
ON
OFF
CHARGING
FLOW SENSOR
!
NEBULIZER
EXH
AIRWAY O 2
VALVE PRESSURE
PATIENT
ALARM
RESET
Airway
Pressure
Valve
6" Hose
Airway
Pressure
Tee
Exhalation Valve
w/ Collection Head
Pneumotach
(use is optional)
