Replacing Switches and External Ports
8.6 ⑥ HDMI_ LS-HDMI-SMF-2M_HDMI_CABLE
1. Disconnect the connector to the unit.
2. Release 2 screws.
3. Pull up the unit to disassemble.
4. Replace the unit with a new one by following the disassembly steps in reverse order.
8.7 ⑦ UNIT_MIC_EIM001
1. Disconnect the connector to the unit.
2. Release 2 screws.
3. Pull up the unit to disassemble.
4. Replace the unit with a new one by following the disassembly steps in reverse order.
8.8 ⑧ SWITCH_MAIN_ASSY
1. Release 2 screws.
2. Pull down the unit to disassemble.
3. Release 4 screws after Disconnecting the cable.
4. Replace the unit with a new one by following the disassembly steps in reverse order.

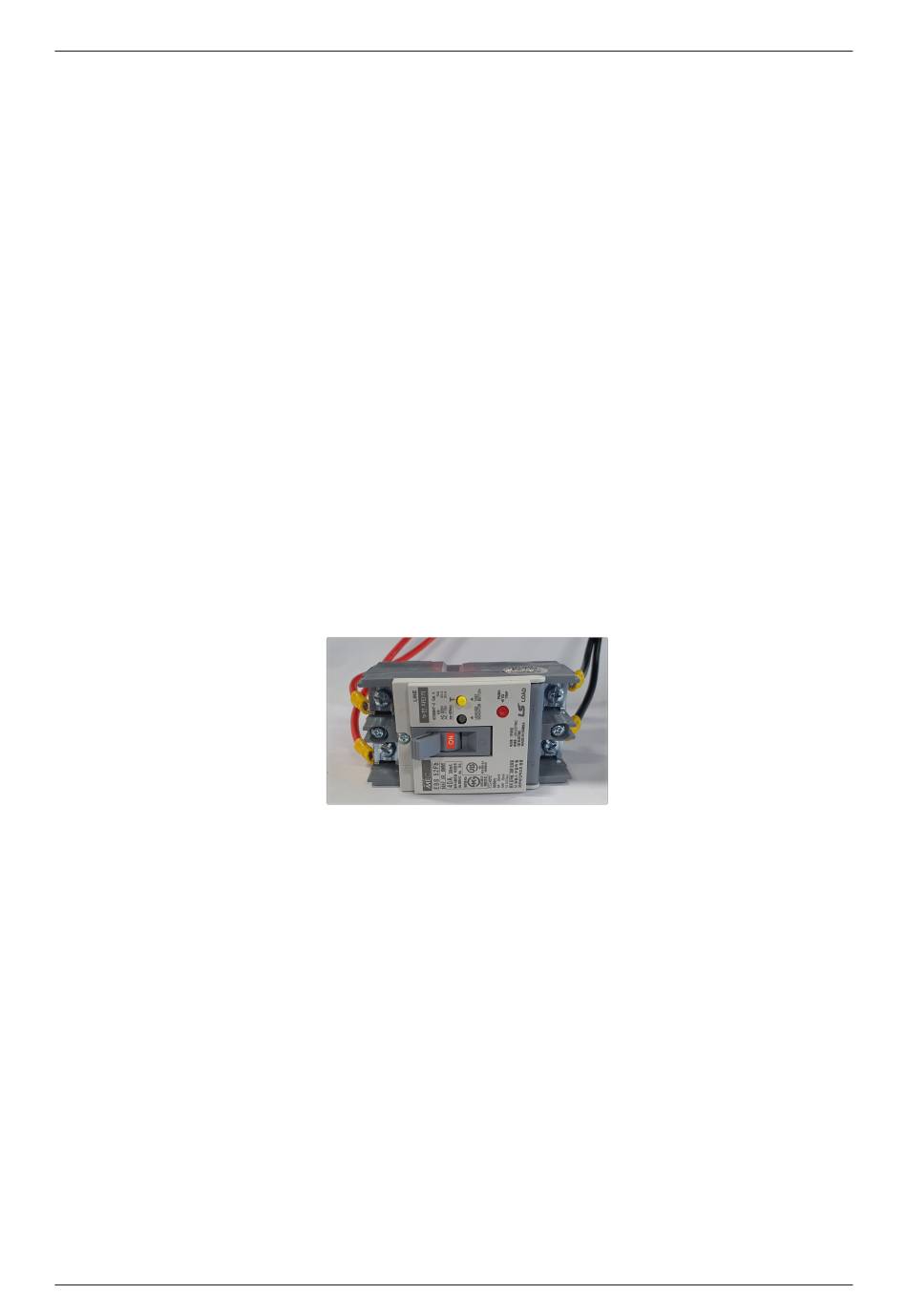

When reassembling the unit, assemble with the cable direction as shown below figure.
•
Fig. 24: Replacing Main Switch
8.9 ⑨ UNIT_OP_PANEL
1. Release 4 screws.
2. Pull down the unit to disassemble.
3. Replace the unit with a new one by following the disassembly steps in reverse order.
