GoCart250 Service Manual
2. Turn off ② main switch.
3. Turn off ③ rear battery trigger switch (rear-right position).
Rear Battery Trigger Switch
(Rear-right Position)

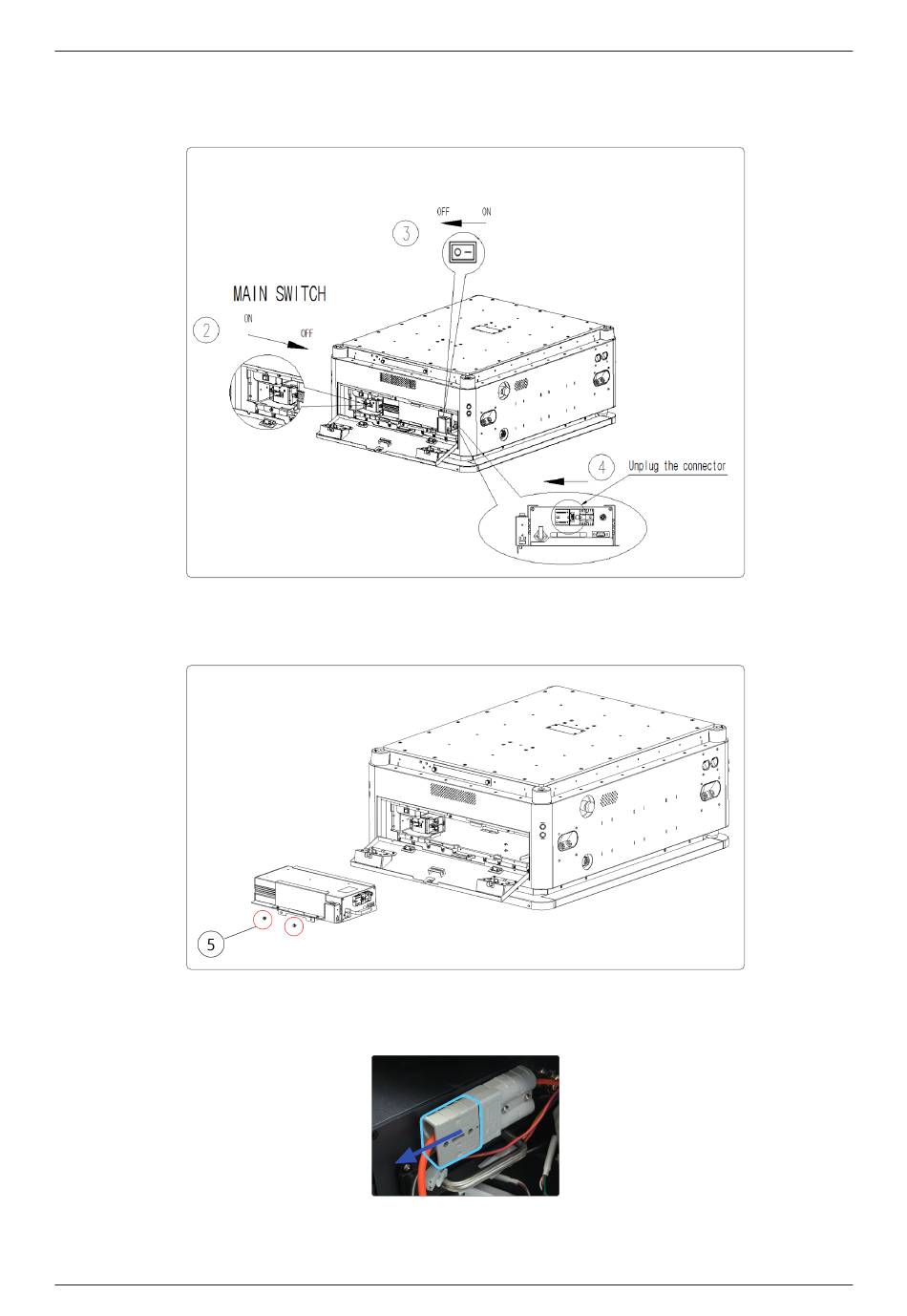

Fig. 7: Turn off Main and Rear Battery Trigger Switch
4. Detach ⑤ battery bracket by removing fixing bolts (2 ea).
Fig. 8: Detach Battery Bracket
5. Unplug ④ power cable connector on the right panel of battery.
Fig. 9: Power Cable Connector on Right Panel
18
