7.4 Sensors Attached on Left Cover
7.4.1 ① UNIT_CLIFF SENSOR (ToF)
1. Disconnect 2 connectors to the sensor.
2. Release 4 screws.
3. Pull up the unit to disassemble.
4. Replace the unit with a new one by following the disassembly steps in reverse order.
7.4.2 ② UNIT_SONAR_SENSOR (W238)
1. Disconnect the connector to the sensor.
2. Release 4 screws.
3. Pull up the unit to disassemble.
4. Replace the unit with a new one by following the disassembly steps in reverse order.
7.4.3 ③ UNIT_LED_ASSY
1. Disconnect the connector to the sensor.
2. Release 2 screws
3. Pull up the unit to disassemble.
4. Replace the unit with a new one by following the disassembly steps in reverse order.

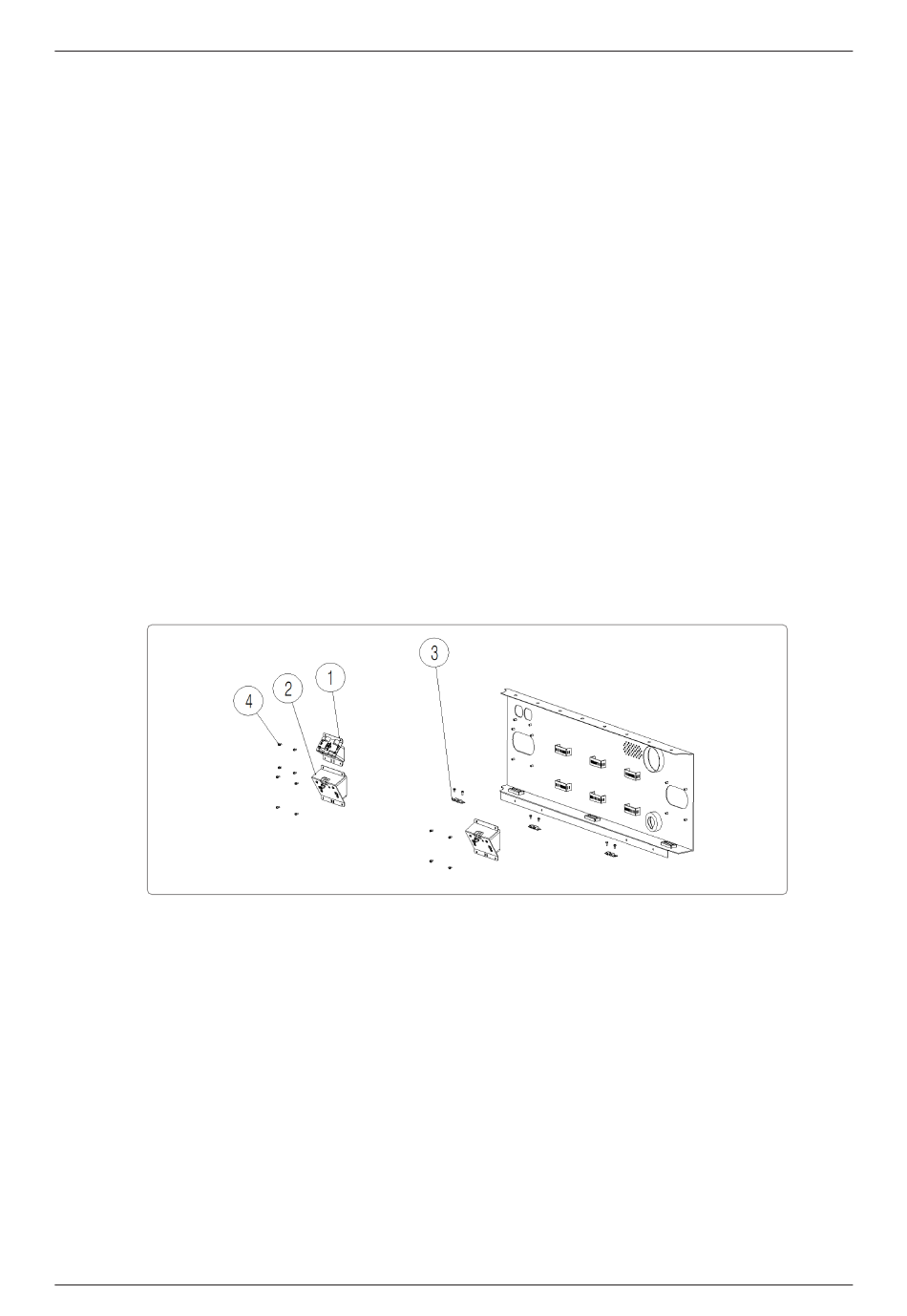

Fig. 19: Sensors Attached on Left Cover
