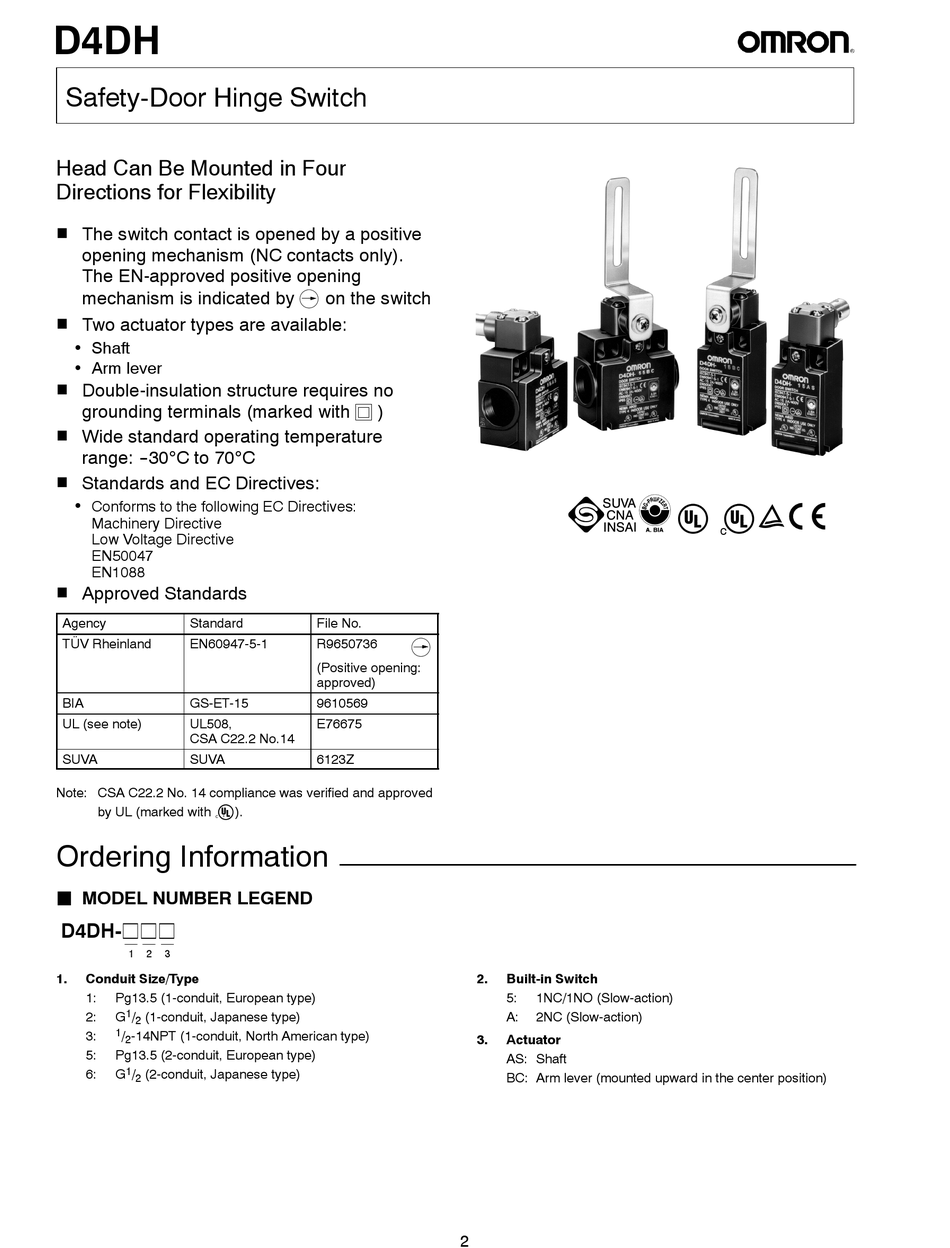

D4DH

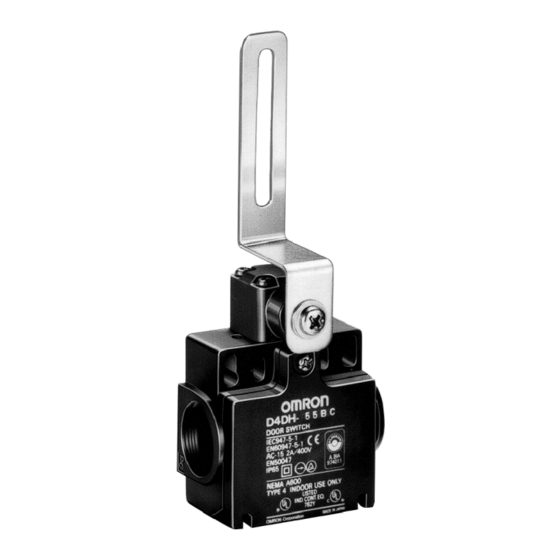

Safety-Door Hinge Switch
Head Can Be Mounted in Four
Directions for Flexibility
The switch contact is opened by a positive
H
opening mechanism (NC contacts only).
The EN-approved positive opening
mechanism is indicated by
Two actuator types are available:
H
• Shaft
• Arm lever
Double-insulation structure requires no
H
grounding terminals (marked with
Wide standard operating temperature
H
range: --30°C to 70°C
Standards and EC Directives:
H
Conforms to the following EC Directives:
•
Machinery Directive
Low Voltage Directive
EN50047
EN1088
Approved Standards
H
Agency Standard
TÜV Rheinland EN60947-5-1
BIA GS-ET-15
UL (see note) UL508,
CSA C22.2 No.14
SUVA SUVA
Note: CSA C22.2 No. 14 compliance was verified and approved
by UL (marked with
Ordering Information
J MODEL NUMBER LEGEND
D4DH-jjj
1 2 3
1. Conduit Size/Type
1: Pg13.5 (1-conduit, European type)
1
2: G / (1-conduit, Japanese type)
2
1
3: / -14NPT (1-conduit, North American type)
2
5: Pg13.5 (2-conduit, European type)
1
6: G / (2-conduit, Japanese type)
2
on the switch
)
File No.
R9650736
(Positive opening:
approved)
9610569
E76675
6123Z
).
2. Built-in Switch
5: 1NC/1NO (Slow-action)
A: 2NC (Slow-action)
3. Actuator
AS: Shaft
BC: Arm lever (mounted upward in the center position)
