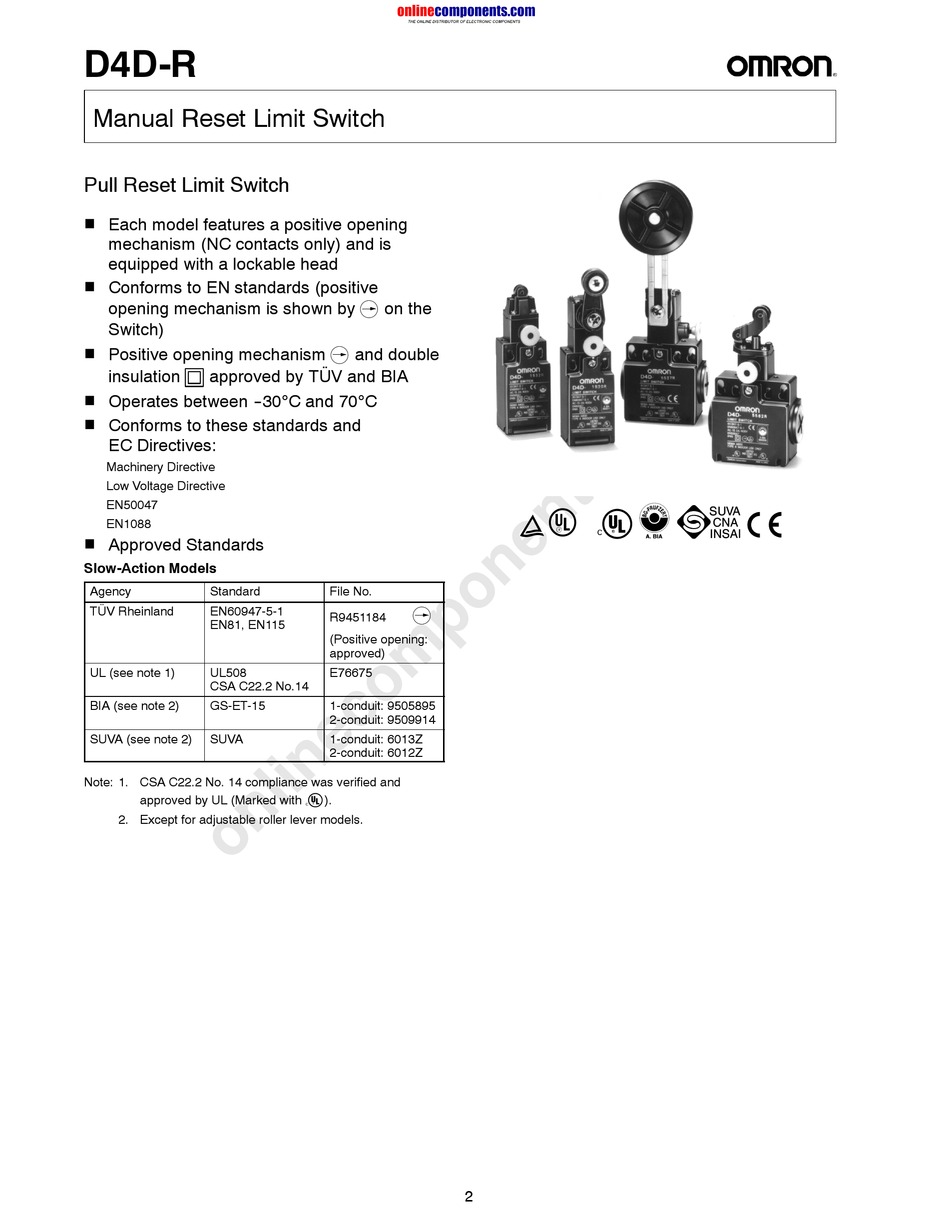

D4D-R
Manual Reset Limit Switch
Pull Reset Limit Switch
Each model features a positive opening
H
mechanism (NC contacts only) and is
equipped with a lockable head
Conforms to EN standards (positive
H
opening mechanism is shown by
Switch)
Positive opening mechanism
H
insulation
approved by TÜV and BIA
Operates between --30°C and 70°C
H
Conforms to these standards and
H
EC Directives:
Machinery Directive
Low Voltage Directive
EN50047
EN1088
Approved Standards
H
Slow-Action Models
Agency
Standard
TÜV Rheinland
EN60947-5-1
EN81, EN115
UL (see note 1)
UL508
CSA C22.2 No.14
BIA (see note 2)
GS-ET-15
SUVA (see note 2)
SUVA
Note: 1. CSA C22.2 No. 14 compliance was verified and
approved by UL (Marked with
2. Except for adjustable roller lever models.
on the
and double
File No.
R9451184
(Positive opening:
approved)
E76675
1-conduit: 9505895
2-conduit: 9509914
1-conduit: 6013Z
2-conduit: 6012Z
).
2
u
E
Advertisement
Related Manuals for Omron D4D-R Series
Summary of Contents for Omron D4D-R Series
- Page 1 D4D-R Manual Reset Limit Switch Pull Reset Limit Switch Each model features a positive opening mechanism (NC contacts only) and is equipped with a lockable head Conforms to EN standards (positive opening mechanism is shown by on the Switch) Positive opening mechanism and double insulation approved by TÜV and BIA...
-
Page 2: Ordering Information
D4D-R Ordering Information J MODEL NUMBER LEGEND D4D-jjjjR Conduit Actuator Pg13.5 (1-conduit, European type) 20: Roller lever G1/2 (1-conduit, Japanese type) 21: Adjustable roller lever 1/2-14NPT (1-conduit, North American type) 27: Adjustable roller lever (with rubber roller) Pg13.5 (2-conduit, European type) 62: One-way roller arm lever (Horizontal) G1/2 (2-conduit, Japanese type) 72: One-way roller arm lever (Vertical) -
Page 3: Specifications
D4D-R Ordering Information Table -- continued from previous page 1NC/1NO (Slow-action) 2NC (Slow-action) Actuator Conduit size/type / yp Positive Part Positive Part opening number opening number (See Note 1) (See Note 1) One-way roller 1-conduit Pg13.5 (European) D4D-1562R D4D-1A62R arm lever G1/2 (Japanese) D4D-2562R D4D-2A62R... - Page 4 Approx. 80 g (for D4D-1120R) Note: Life expectancy values are calculated at an operating temperature of 5°C to 35°C and an operating humidity of 40% to 70%. Contact your OMRON sales representative for more detailed information on other operating environments. J OPERATING CHARACTERISTICS...
- Page 5 D4D-R 2-Conduit Models Part number D4D-5520R D4D-5521R D4D-5527R D4D-5531R D4D-5532R D4D-5562R D4D-5572R D4D-6520R D4D-6521R D4D-6527R D4D-6531R D4D-6532R D4D-6562R D4D-6572R D4D-5A20R D4D-5A21R D4D-5A27R D4D-5A31R D4D-5A32R D4D-5A62R D4D-5A72R D4D-6A20R D4D-6A21R D4D-6A27R D4D-6A31R D4D-6A32R D4D-6A62R D4D-6A72R LF max. 6.37 N 5.59 N 5.39 N 10.79 N 10.79 N 7.35 N...
-
Page 6: Operation
D4D-R Operation J CONTACT FORM Model Contact Diagrams Remarks D4D-j5jN 1NC/1NO Only NC contact 11-12 has an 11-12 (slow-action) approved positive opening mechanism. 23-24 Stroke Terminals 11-12 and 23-24 can be used as unlike poles. D4D-jAjN NC contacts 11-12 and 21-22 have an 11-12 (slow-action) approved positive opening... - Page 7 D4D-R Dimensions Unit: mm Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions. 2. The minimum number of screw threads is five when the Pg13.5 conduit is used and four when the G1/2 conduit is used. J SWITCHES 1-Conduit Models Roller Lever...
- Page 8 D4D-R Plunger 20.5 x 20.5 D4D-1531R 6 dia. D4D-2531R 14 dia. D4D-3531R D4D-1A31R D4D-2A31R D4D-3A31R R2.15±0.05 mounting holes See Note 2, +0.15 referring to Two. 4 dia. holes the min. no. depth: 5 of screw threads. Roller Plunger 9.5 dia. x 5 D4D-1532R resin roller D4D-2532R...
- Page 9 D4D-R 2-Conduit Models Roller Lever D4D-5520R 17.5 dia. x 6.8 D4D-6520R resin roller D4D-5A20R D4D-6A20R 20.5 x 20.5 14 dia. 25 dia. R2.15±0.05 mounting holes See Note 2, referring to +0.15 the min. no. Two. 4 dia. holes of screw depth: 5 threads.
- Page 10 D4D-R J LEVERS Refer to the following for the angles and positions of the dogs. Roller Lever Adjustable Roller Lever Adjustable Roller Lever D4D-jj20R D4D-jj21R (Rubber Roller Lever) D4D-jj27R 10 min. 10 min. 45 min. 10 min. 20 min. 40 min. 25 min.
- Page 11 D4D-R Mounting Holes/Studs J CORRECT USE Standard 1-Conduit Operating Environment The Limit Switch is intended for indoor use only. Using the Limit Switch outdoors may result in a malfunction. Correct Tightening Torque A loose screw may result in a malfunction. Be sure to tighten each screw to the proper tightening torque as shown below.
- Page 12 To satisfy IP65, apply sealing tape to the connector conduit. The diameter of the cable must be suited to the corresponding connector. ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, divide by 25.4 OMRON ELECTRONICS LLC OMRON CANADA, INC. OMRON ON-LINE One Commerce Drive 885 Milner Avenue Global - http://www.omron.com...
