- Page 1 OMRON ELECTRONICS D4DL-1DFG-B See full Datasheet below... BUY NOW BUY NOW masterelectronics.com & onlinecomponents.com are authorized e-commerce distributors of electronic components.

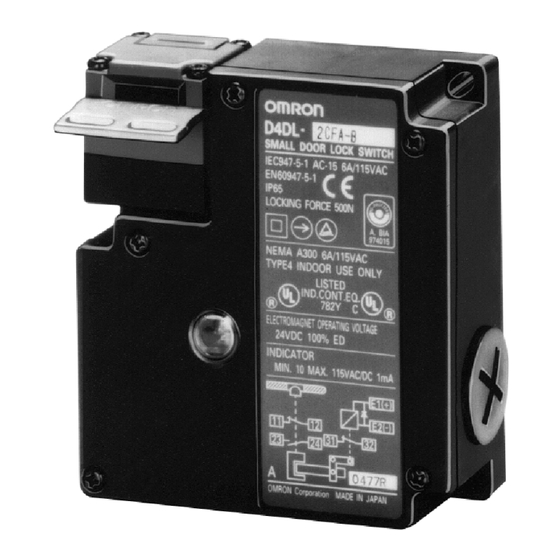

- Page 2 D4DL Locking Safety-Door Switch Compact, Locking Safety Door Switch with Dual Key Entry Two types in the series: Mechanical-lock models that lock automatically when the Operation Key is inserted, and solenoid-lock models that lock when voltage is applied to the solenoid Rotatable operating head provides four possible key entry slots Incorporates an indicator that shows...
-
Page 3: Ordering Information
PG13.5 D4DL-1DFA-B G1/2 D4DL-2DFA-B Solenoid lock 1NC/1NO+1NC PG13.5 D4DL-1CFG-B Mechanical release G1/2 D4DL-2CFG-B 2NC+1NC PG13.5 D4DL-1DFG-B G1/2 D4DL-2DFG-B Solenoid: 110 VAC Mechanical lock 1NC/1NO+1NC PG13.5 D4DL-1CFB-B Orange LED: 10 to 115 LED 10 t 115 Solenoid release G1/2 D4DL-2CFB-B VDC/VAC... -
Page 4: Specifications
D4DL J OPERATION KEYS (ORDER SEPARATELY) Type Part number Horizontal mounting D4DS-K1 Vertical mounting D4DS-K2 Adjustable mounting D4DS-K3 (Horizontal) Adjustable mounting D4DS-K5 (Horizontal/Vertical) Note: The operation keys are the same as for D4DS models. J ACCESSORIES (AVAILABLE IN US ONLY) Description Part number Cable gland for D4DL... - Page 5 D4DL J CHARACTERISTICS Degree of protection (see note 2) IP65 (EN60947-5-1) Life expectancy (see note 3) Mechanical: 1,000,000 times min. Electrical: 500,000 times min. Operating speed 0.05 to 0.5 m/s Operating frequency 30 operations/minute max. Rated frequency 50/60 Hz Contact gap 2 x 2 mm min.
-
Page 6: Operation
D4DL Nomenclature Operation key hole Terminal E3 Terminal E4 Solenoid Operation key hole Terminal E1 ( ) -- ~ Terminal E2 ( ) Lock monitor switch Terminal 11 Terminal 12 Conduit opening (Pull out horizontally) Terminal 23 Terminal 24 Terminal 32 Terminal 31 Main switch Indicator (orange) - Page 7 D4DL J CONTACT FORM (DIAGRAMS SHOW STATE WITH KEY INSERTED) Indicates conditions where the Key is inserted and the lock is applied. Connect the terminals 12 to 31 to conform to BIA GS-ET-19. Model Contact Contact form Diagram Remarks D4DL-jCjj-j 1NC/1NO + 1NC Lock position Only NC contacts 11-12...
- Page 8 D4DL J CONNECTION EXAMPLE WITH OMRON G9S SAFETY RELAY UNIT G9S-321-Tj (24 VDC)+D4DL-jCFA-j/-jCFB-j/-CFC-j (Mechanical Lock Type)+D4D-j520N Circuit Diagram PC output Closed Open Feed back loop PC output (Stop signal) E-SW Off delay timer (Operation instruction) Emergency stop or standby Note: Wire terminal 11 and terminal 22 on G9S to the PC output common.
- Page 9 D4DL G9S-301 (24 VDC)+D4DL-jCFG-j/-jCFH-j/-jCFJ-j (Solenoid Lock Type)+D4D-j520 N Circuit Diagram PC output Closed Open Feed back loop PC output (Stop signal) E-SW KM1 KM2 (Operation instruction) Emergency stop or standby Motor control system 2 C 1 Safety Switch (D4D-j520N) Safety Door Switch with solenoid lock (D4DL-jCFG-B) Reset switch E-SW: Emergency-stop switch (A22E)
- Page 10 D4DL Dimensions Unit: mm (inch) J SWITCHES D4DL-jjjj-j Four, head mounting screw Black Pre-travel distance Three, 4.3-dia. holes Indicator Conduit cap Three, cover counting screws Conduit cap Release key Conduit opening Operating characteristics Model Key insertion force 14.71 N max. Key extraction force 29.42 N max.
- Page 11 D4DL J OPERATION KEYS Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified. Vertical Mounting Adjustable Mounting (Horizontal) Horizontal Mounting D4DS-K2 D4DS-K3 D4DS-K1 Black Four, R2.15 Four, R2.15 9 dia. 4.5 dia. 8 dia. Adjustable Mounting (Horizontal/Vertical) D4DS-K5 Black...
- Page 12 D4DL J WITH OPERATION KEY INSERTED Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified. D4DL + D4DS-K1 D4DL + D4DS-K2 D4DL + D4DS-K3 Black Black Black Horizontal Horizontal Horizontal 40 min., 42.5 max. 44 min., 46.5 max. 45 min., 47.5 max.
-
Page 13: Life Expectancy
D4DL Precautions The release key applied to the door of a machine room ensures CAUTION the safety of people adjusting the equipment in the machine room. If the release key is set to UNLOCK, the door will not be Do not remove the operation key from the door intentionally locked when the door is closed and no power will be supplied to and insert it into the switch with the door open. -
Page 14: Tightening Torque
D4DL Operation Key J MOUNTING Be sure to use the dedicated Operation Key only. Tightening Torque Do not operate the D4DL with anything other than the dedicated Be sure to tighten each screw of the D4DL properly, or the D4DL Operation Key, or the safety of the system may not be may malfunction. -
Page 15: Recommended Connectors
D4DL. The conduit cap is provided with the D4DL. Recommended Connectors • Adjustable Mounting (Horizontal) Size Manufacturer Model Proper cable D4DS-K3 diameter Two, M4 OMRON SC-6 7.5 to 9.0 mm LAPP ST-PF1/2 6.0 to 12.0 mm 5380-1002 40±0.1 Ohm Denki OA-W1609 7.0 to 9.0 mm •... - Page 16 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, divide by 25.4 OMRON ON-LINE OMRON ELECTRONICS LLC OMRON CANADA, INC. One Commerce Drive 885 Milner Avenue Global - http://www.omron.com Schaumburg, IL 60173 Toronto, Ontario M1B 5V8 USA - http://www.omron.com/oei...
