Summary of Contents for Pop-A-Shot PRO DUAL SHOT PASPDS22

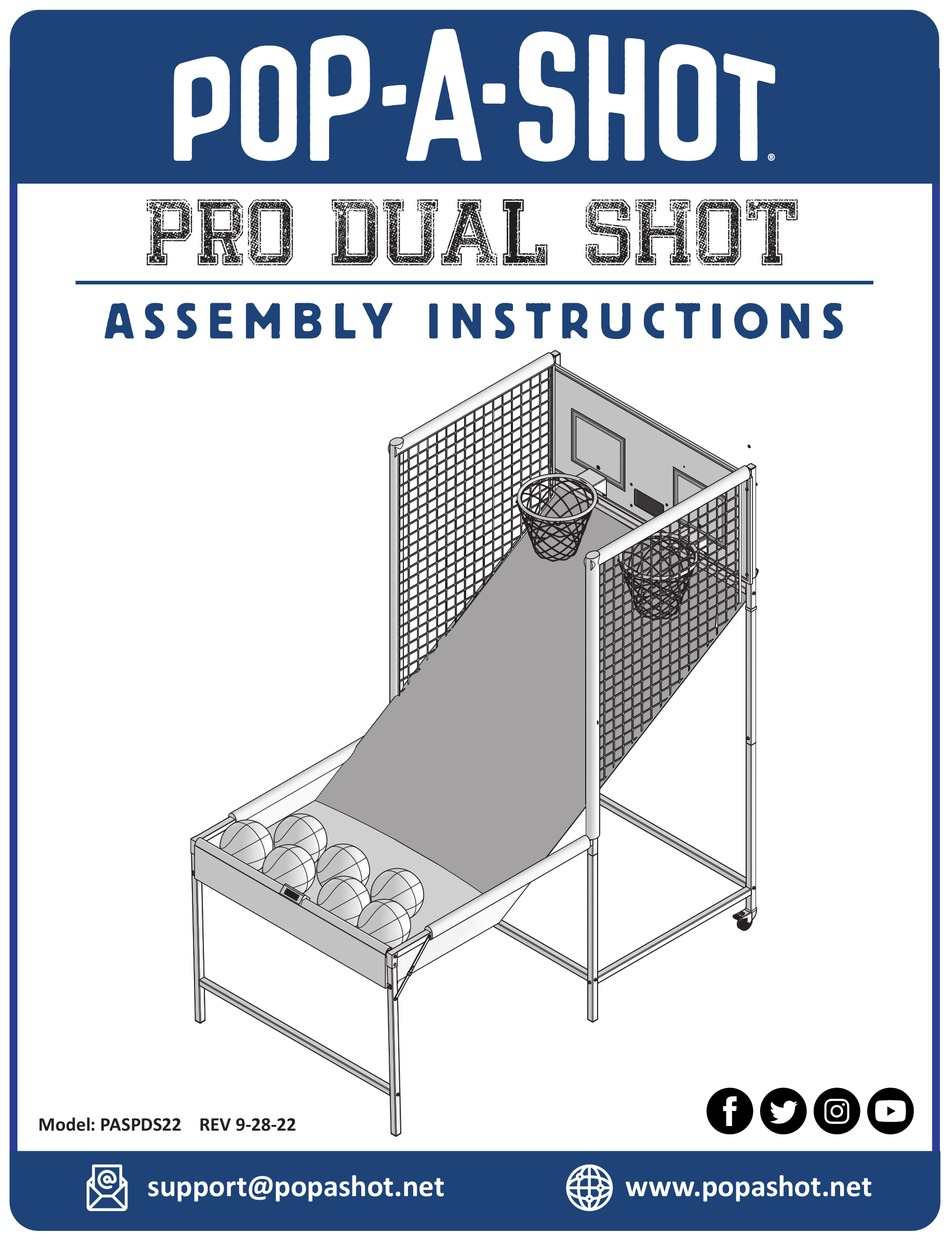

- Page 1 PRO dual shot A S S E M B L Y I N S T R U C T I O N S Model: PASPDS22 REV 9-28-22 support@popashot.net www.popashot.net...
- Page 2 Warranty As described in and as limited by this Warranty, Pop-A-Shot Enterprise, LLC (the “Company”) warrants this product to be free from defects in workmanship and materials for a period of 360 days from the date of original purchase. The term defects shall mean any imperfections that impair the use of the product.
-
Page 3: During Assembly
• We recommend working on a soft, non-marring surface such as carpet or the cardboard box your game came in. • Like most things in life, putting together a Pop-A-Shot is better with a friend. If you can’t find someone to help the entire time, we’ll point out those steps when two people are especially helpful. - Page 4 PRO DUAL SHOT PARTS Rear Vertical Tube Rear Vertical Tube Instruction MIDDLE Part ID# Part Name Part # Part Image Step Used In Part Quantity PPP001 PPP002 STEPS 6, 8 & 13 STEPS 6 & 9 Rear Vertical Tube Support Leg Socket Tube Lower Side Tube BOTTOM...
-
Page 5: Included Tools
HARDWARE BLISTER PACK Short Screw Long Screw Bolt Washer PPP023 PPP024 PPP025 PPP026 STEPS 1, 2 & 6 STEPS 6 & 14 STEPS 4, 5, 7, 8 & 9 STEPS 1-9, 13 & 14 Rim Bolt Rim Washer Rim Nut PPP027 PPP028 PPP029... - Page 6 STEP 1 ID# Name Qty. Support Leg (Left & Right) Socket Tube (Left & Right) Short Screw Washer Note: Clip attachent on (#5) Socket Tube should be on the same side as the locking brace. STEP 2 ID# Name Qty. Middle Vertical Tube TOP Clip Tube (Left &...
- Page 7 STEP 3 Note: The clips on the (#10) Clip Tube ID# Name Qty. should be on the outside of the frame. Socket Tube (Left & Right) Clip Tube (Left & Right) Washer Middle Bolt Plastic Washer Note: Grab a friend to help with this step.
- Page 8 STEP 5 ID# Name Qty. Horizontal Tube Middle Vertical Tube BOTTOM Bolt Washer STEP 6 ID# Name Qty. Rear Vertical Tube TOP Rear Vertical Tube MIDDLE Rear Vertical Tube BOTTOM Short Screw Long Screw Washer Note: Do not tighten this nut. Will need to detach in Step 14 to attach (#15) Backboard.
- Page 9 STEP 7 ID# Name Qty. Rear Vertical Tube BOTTOM Lower Side Tube REAR Middle Vertical Tube BOTTOM Bolt Washer PAG E support@popashot.net www.popashot.net...
- Page 10 STEP 8 ID# Name Qty. Rear Vertical Tube TOP Upper Side Tube REAR Middle Vertical Tube TOP Bolt Washer STEP 9 ID# Name Qty. Rear Vertical Tube MIDDLE Rear Vertical Tube BOTTOM Horizontal Tube Bolt Washer PAG E support@popashot.net www.popashot.net...
- Page 11 STEP 10 ID# Name Qty. Backboard Repeat on this side Rim Bolt Rim Washer Rim Nut Note: After installing the (#13) Rim, attach the (#14) Net, making sure the longer strands are on top. If the net is not attached properly, scoring can be affected. STEP 11 ID# Name Qty.
- Page 12 STEP 12 Note: The TOP sensors need to be plugged into the TOP ports on ID# Name Qty. the back of the (#19) Scoreboard. The BOTTOM sensors need to be plugged into the BOTTOM ports. Backboard Scoreboard Sensor Sensor Screw STEP 13 Repeat on this side ID# Name...
- Page 13 STEP 14 Note: Secure the black tabs of the (#16) Ramp first, before applying the ID# Name Qty. rest of the hook & loop. Horizontal Bar Lean Bar Backboard Ball Return Ramp Long Screw Washer Note: This is the same hardware you removed in Step 14.
- Page 14 STEP 15 Note: Snap the (#21) Control Panel onto the top of the (#7) ID# Name Qty. Horizontal Bar. Then run the (#21) Control Panel cable under Horizontal Bar the game and plug it into the rear of the (#19) Scoreboard. Scoreboard Control Panel Adapter...
-
Page 15: Control Panel Operation
CONTROL PANEL OPERATION AUDIO OPTIONS There are 6 different audio options. Select the audio option by pushing AUDIO until you reach your selection. The number will be displayed on the scoreboard. TURNING ON THE GAME: Press ON/OFF to turn on your game. SELECT GAME: Press GAME to select one of the 16 games S1: Play-by-play announcer &... - Page 16 GAME OPTIONS (Continued) 7. Team: 2 Players/:30 Combined score of players is shown on both scoreboards Bonus: :15 extra at 30 points; :10 extra at 60 points 8. Cross Court: 1/2 Players/:30 Player 1 goes first and shoots at basket displaying score/active basket will change 9.
