Summary of Contents for Pop-A-Shot Premium

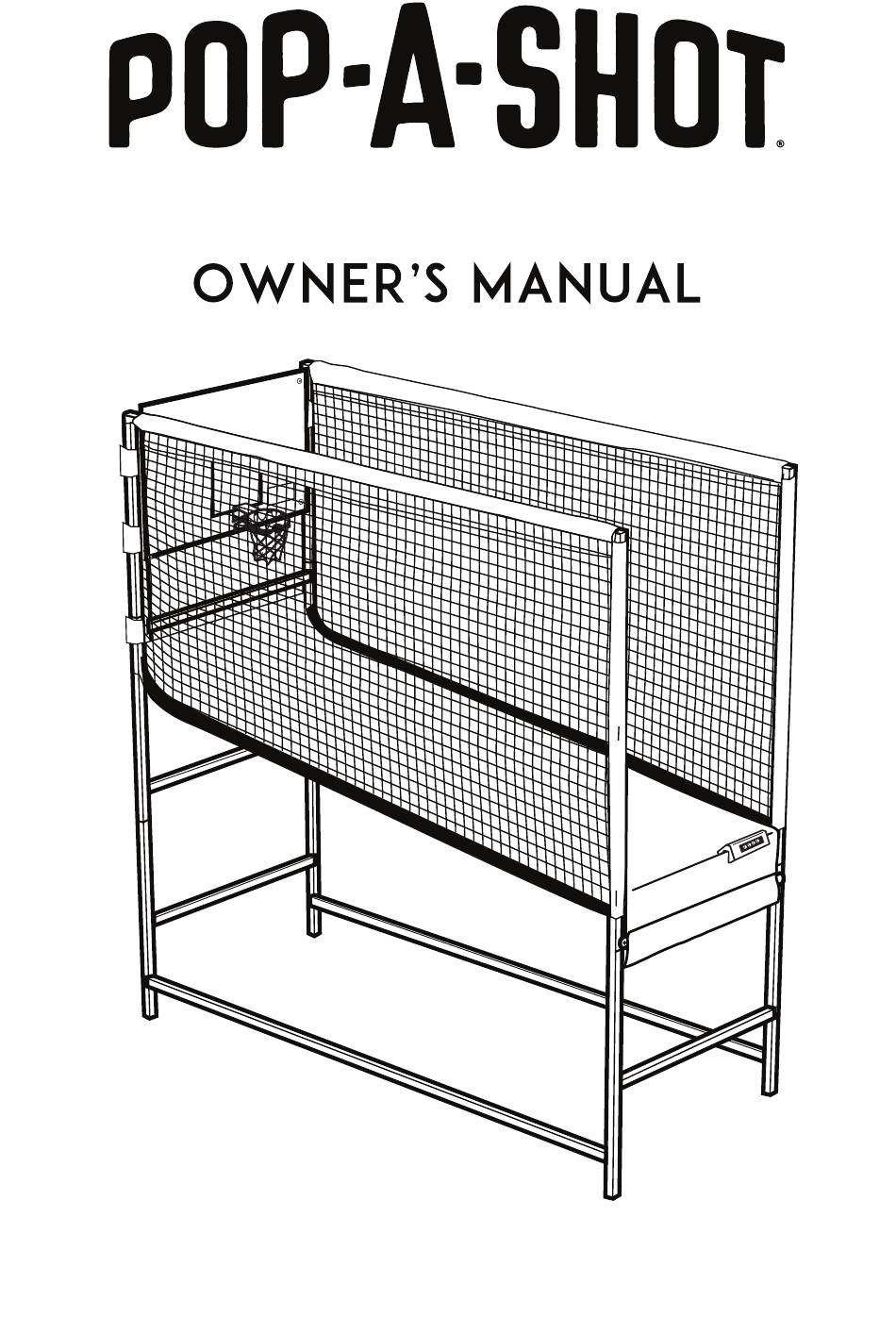

- Page 1 Premium...
-
Page 2: Parts List
Rim Net Sensors Scoring Unit AC Adapter Ball Return Ramp Control Panel Balls Short Screw Long Screw Washer Pump Rim Bolt Rim Washer Rim Nut Scoring Bolt Parts #17, #18 and #21 are in brown box Screws Pop-A-Shot Premium Page 2/14... -
Page 3: Frame Assembly
POP-A-SHOT ® Premium FRAME ASSEMBLY Pop-A-Shot Premium Page 3/14... - Page 4 Connect the other end of the Rear Vertical Tube, Middle (#2) to the Rear Vertical Tube, Bottom (#3) and tighten with a Short Screw (#23) and Washer (#25). Repeat with the other 1, 2 and 3 tubes. Fig 2A Pop-A-Shot Premium Page 4/14...
- Page 5 Repeat with the other 8 and 9 tubes. Connect the Lower Side Tube, Rear (#10) to the STEP 4 Lower Side Tube, Front (#11) and tighten with a Short Screw (#23) and Washer (#25). Repeat with the other 10 and 11 tubes. Pop-A-Shot Premium Page 5/14...
- Page 6 Opposite side view Attach an Upper Side Tube, Front (#9) to a STEP 6 Front Vertical Tube, Top (#4) using a Long Screw (#24) and Washer (#25). Repeat with the other 9 and 4 tubes. Opposite side view Pop-A-Shot Premium Page 6/14...
- Page 7 Repeat with the other 11 and 6 tubes. Attach a Lower Side Tube, Rear (#10) to a STEP 8 Rear Vertical Tube, Bottom (#3) using a Long Screw (#24) and Washer (#25). Repeat with the other 10 and 3 tubes. Pop-A-Shot Premium Page 7/14...
- Page 8 Attach a Horizontal Tube (#7) to both Rear Vertical Tubes, STEP 10 Bottom (#3) using Long Screws (#24) and Washers (#25). Attach another Horizontal Tube (#7) to both Rear Vertical Tubes, Top (#1) using Long Screws (#24) and Washers (#25). Pop-A-Shot Premium Page 8/14...
- Page 9 Make sure the longer strands are on top and go through the net hooks. Attach the Rim (#16) to the Backboard (#14) using a Rim Bolt (#27) and a Rim Washer (#28) on the front and a Rim Washer (#28) and Rim Nut (#29) on the back. Pop-A-Shot Premium Page 9/14...
- Page 10 (Fig 10B) and screwed all the way into the Backboard (Fig 10C). AC Adapter Fig 10C Put 4 AA Batteries into Scoring Unit (#18) and/or plug in AC Adapter (#19) to Scoring Unit (#18). Pop-A-Shot Premium Page 10/14...
- Page 11 Tip: If you can, grab a helper for this part. STEP 14 Attach the Backboard (#14) to the Rear Vertical Tubes, Top (#1) using Long Screws (#24) and Washers (#25). Pop-A-Shot Premium Page 11/14...
- Page 12 Lean Bar (#12) and wrap around Horizontal Bar (#7). (Fig 16) Fig 16 Pull the ramp under the Horizontal Tube (#7) under the Backboard and attach the tabs to the Bolts of the Backboard. Connect the Velcro straps around the Rear Vertical Tubes, Middle (#5)) Pop-A-Shot Premium Page 12/14...
- Page 13 Plug the Control Panel wire into the outlet labeled “Control Panel” in the Scoring Unit. Tip: You’ll find complete game directions and operations in this booklet. The “Cheat Sheet” is intended as a quick handy reference guide Fig 17a Pop-A-Shot Premium Page 13/14...
-
Page 14: Troubleshooting
POP-A-SHOT Premium GAME OPERATION Game Options Starting a game: Press START to start your game. 1. Standard Play :30 on clock Announcer and clock count down to start Baskets are 2 points for 1st :20, then 3 points for final :10 and all bonus time Bonus: :15 extra at 30 points;...
