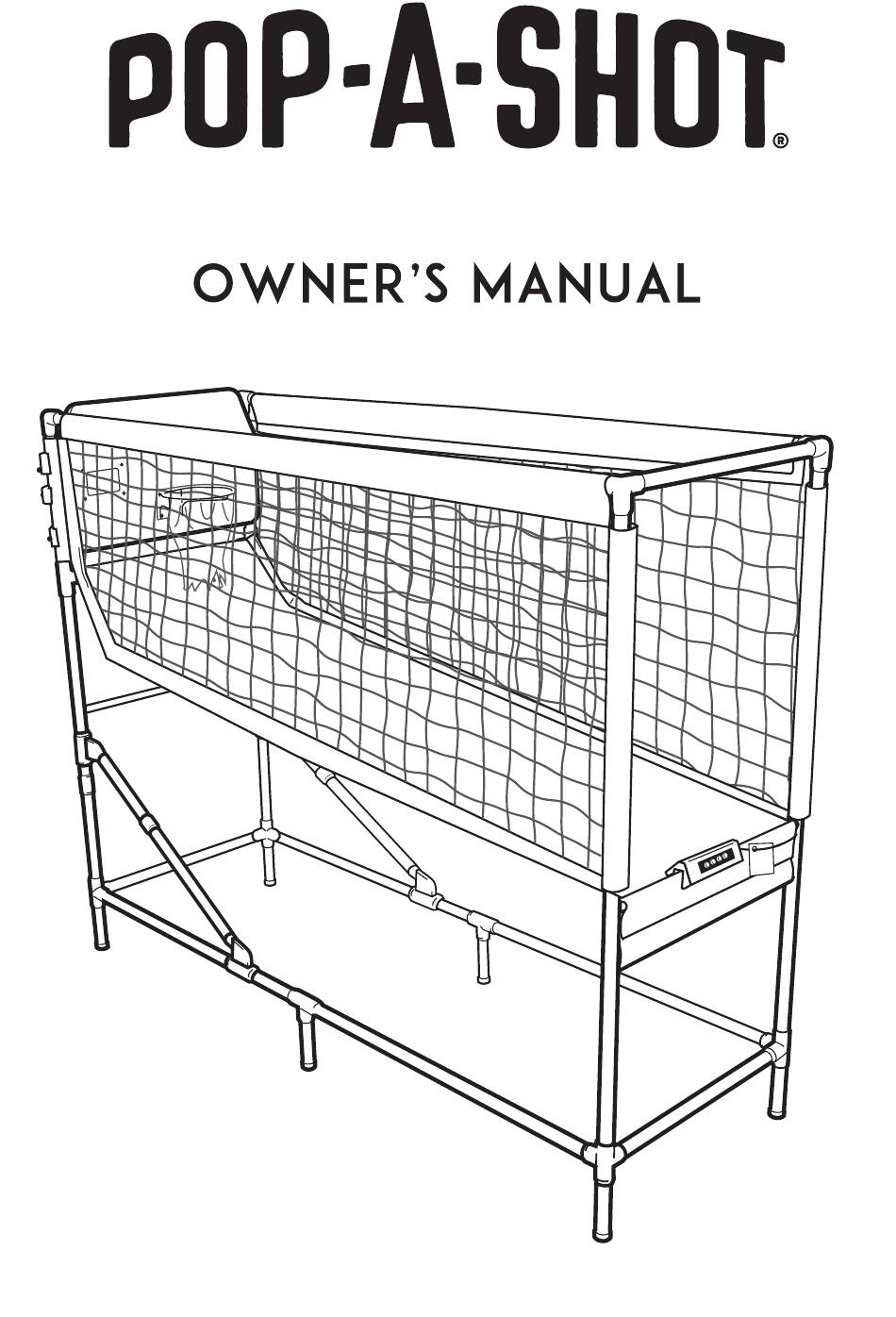

- Page 1 CLASSIC SKU# PASCLAS19-01 WWW.POP-A-SHOT.NET...
- Page 2 9/16” Deep Well Socket (Not included) - for installing rim We hope you love your Pop-A-Shot and will let your friends and family (and any review sites) know how you feel. If you do have a problem (and it happens), please let us know first and give us a chance to fix it.
- Page 3 POP-A-SHOT CLASSIC FRAME ASSEMBLY ALL FRAME TUBE PARTS ARE LABELED Backboard Assembly WWW.POP-A-SHOT.NET Pop-A-Shot Classic Page 3/12 SKU# PASCLAS19-01...
-
Page 4: Parts List
Ramp and Netting Set Four-Way Joints Two-Way Joints Rim and Net Backboard Assembly Control Panel AC Adapter Balls Bungee Ball Cord Pump Bolt Wing Nut Washer Inspect your box to make sure all parts are included WWW.POP-A-SHOT.NET Pop-A-Shot Classic Page 4/12 SKU# PASCLAS19-01... -
Page 5: Bottom Frame
Connect R2 vertically into Four-Way Joint on B2. Connect R3 vertically into Four-Way Joint on B4. Connect R1 horizontally into Four-Way Joints on B2 and B4. COUPLER FRONT TAP CORNERS AS YOU BUILD FRAME WWW.POP-A-SHOT.NET Pop-A-Shot Classic Page 5/12 SKU# PASCLAS19-01... - Page 6 Slide F4 and F5 into holes in F2 and F3. Connect 3-Way Elbows to top of F6 and F7. Finish front frame with F8. TAP CORNERS AS YOU BUILD FRAME 3-WAY ELBOW 3-WAY ELBOW COUPLER COUPLER WWW.POP-A-SHOT.NET Pop-A-Shot Classic Page 6/12 SKU# PASCLAS19-01...
- Page 7 Connect S1, S2, S3 and S4 to the 45 degree elbows on the R4 and R5 of the back frame. Attach Backboard Assembly. TAP CORNERS AS YOU BUILD FRAME ELBOW Backboard Assembly ELBOW Backboard Tubes 45˚ COUPLER WWW.POP-A-SHOT.NET Pop-A-Shot Classic Page 7/12 SKU# PASCLAS19-01...
- Page 8 Connect T1, T2, T3 and T4 to frame using 3-Way Elbows on the front and single elbows on the rear. SINGLE ELBOW TOP FRAME BARS 3-WAY ELBOW Use a step ladder for safety, where possible. WWW.POP-A-SHOT.NET Pop-A-Shot Classic Page 8/12 SKU# PASCLAS19-01...
- Page 9 STEP 5 you will need a 9/16” Wrench, a 3/8” Drive Ratchet and a 9/16” Deep Well Socket (not included). Note: Your sensor and scoreboard are pre-installed. Please make sure the connections are secure. WWW.POP-A-SHOT.NET Pop-A-Shot Classic Page 9/12 SKU# PASCLAS19-01...
- Page 10 (not included)). Screw Wing Nuts to the Ring Tabs to hold the Ramp Net to the Backboard. VELCRO TIE RING TABS WITH BUNGEE BALL CORDS RING TABS VELCRO VELCRO YOU’RE READY TO PLAY! WWW.POP-A-SHOT.NET Pop-A-Shot Classic Page 10/12 SKU# PASCLAS19-01...
-
Page 11: Control Panel Operation
CLASSIC POP-A-SHOT GAME OPERATION Now that you’ve put your Pop-A-Shot Classic together, let’s get started playing! Control Panel Operation Turning on the game: Press ON/OFF to turn on your game. Select Game: Press GAME to select one of the six games. -
Page 12: Game Options
CLASSIC POP-A-SHOT GAME OPERATION Game Options Starting a game: Press START to start your game. 1. Standard Play :30 on clock Announcer and clock count down to start Baskets are 2 points for 1st :20, then 3 points for final :10 and all bonus time Bonus: :15 extra at 30 points;...
