Summary of Contents for Pop-A-Shot DUAL SHOT
- Page 1 DUAL SHOT | SPORT OWNERS MANUAL SKU# PASDSS19-02 WWW.POP-A-SHOT.NET...
- Page 2 There you’ll find more hints and hacks to help you put together your new game. We hope you love your Pop-A-Shot and will let your friends and family (and any review sites) know how you feel. If you do have a problem (and it happens), please let us know first and give us a chance to fix it.
- Page 3 DUAL SHOT SPORT-PARTS LIST Connector Extension Diagonal Base Tube Vertical Tube Elbow Tube Tube Tube Tube Front Tube Bottom Tube Lean Bar Back Tube Back Plate Medium Plastic Extra Long Short Bolt Bolt Spacer Bolt Washer Bolt Ball Return Allen...
- Page 4 DUAL SHOT SPORT-NUMBERED PARTS Page 4/17 Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 WWW.POPASHOT.NET...
- Page 5 Attach the Base Tubes (#1) with a Connector Tube (#6) using a Bolt (#14), two Washers (#18) and a Nut (#19). Put the Vertical Tubes (#2) into the Base Tubes (#1), then put the STEP 2 Elbow Tubes (#3) into the Vertical Tubes (#2). Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 Page 5/17 WWW.POPASHOT.NET...
- Page 6 Connector Tube (#6) using a Bolt (#14), two Washers (#18) and a Nut (#19). Attach the Extension Tubes (#4) to the Base Tubes (#1) using a Short Bolt (#13), two Washers (#18) and a Nut (#19). Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 Page 6/17 WWW.POPASHOT.NET...
- Page 7 Attach the other end of the Diagonal Figure 5C Tubes (#5) to the outside of the Forward Tubes (#4) using a Short Bolt (#13), one Plastic Spacer (#15), one Washer (#18) and a Nut (#19) (Fig. 5C). Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 Page 7/17 WWW.POPASHOT.NET...
- Page 8 Attach the Front Tubes (#7) to the Extension Tubes (#4) using the spring locks (Fig. 6A). Figure 6A Attach the Bottom Tube (#8) to the Front Tubes (#7) using Figure 6B the spring locks (Fig. 6B). Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 Page 8/17 WWW.POPASHOT.NET...
- Page 9 Attach the Scoreboard (#26) onto the rear of the Backboard (#25) using the Short Bolts (#27). Attach the Rims (#11) to the Backboard (#25) and the Backplates (#12) using Bolts (#17), two Washers (#18) and Nuts (#19). Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 Page 9/17 WWW.POPASHOT.NET...
- Page 10 Attach the Paddles (#28) to the Backboard (#25) using Bolts (#17), two Washers (#18) and Nuts (#19). Plug the Paddles jacks into the corresponding ports on the Scoreboard (#26). Attach the Nets (#20) to the Rims (#11). Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 Page 10/17 WWW.POPASHOT.NET...
- Page 11 Bolt (#16), two Washers (#18) and a Nut (#19). Tip: Try to get a helper for this part. Attach a Back Tube (#10) to both Vertical Tubes (#2) using Medium Bolts (#14), Washers (#18) and Nuts (#19). Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 Page 11/17 WWW.POPASHOT.NET...
- Page 12 Figure 13A Figure 13B Figure 13C Figure 13D Attach Forward Tube (#29) to Front Tube (#7) and Lean Bar (#9) using an Extra Long Bolt (#16), Two Washers (#18), and a Nut (#19) (Fig.13D). Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 Page 12/17 WWW.POPASHOT.NET...
- Page 13 Tighten the front of the Ball Return Ramp (#24) using the velcro straps in the front (Fig. 14C). Note: Make sure the Back Tube (#10) is in front of the ramp (Fig. 14A) Figure 14A Figure 14C Figure 14B Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 Page 13/17 WWW.POPASHOT.NET...
- Page 14 Optional: You may use 3 AAA batteries (not included). Tip: You’ll find complete game directions and operations in this booklet. The “Cheat Sheet” is intended as a quick reference guide. YOU’RE READY TO PLAY! Figure 16A Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 Page 14/17 WWW.POPASHOT.NET...
- Page 15 COMPLETED GAME Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 Page 15/17 WWW.POPASHOT.NET...
- Page 16 Now that you’ve put your Classic Dual together, let’s get started playing! Pop-A-Shot Dual Shot-Sport SKU# PASDSS19-02 Page 16/17 WWW.POPASHOT.NET...
- Page 17 POP-A-SHOT DUAL SHOT | SPORT Push GAME until desired Game Number is displayed, then press START to begin. To turn Game o , press and Hold START 1. Standard: 2 Players/:30 Announcer and clock will count down to start Bonus: :15 extra at 30 points; :10 extra at 60 points Baskets are 2 points until final :10 when they’re 3 points...
Need help?
Do you have a question about the DUAL SHOT and is the answer not in the manual?
Questions and answers
Wondering where I can find a replacement part #5 for the structure. I have 4 boys and they played hard and broke it. I looked online but this particular part is not listed for replacement.
You can contact Pop-A-Shot for replacement parts by emailing popashot@popashot.net or visiting their website at www.popashot.net.
This answer is automatically generated

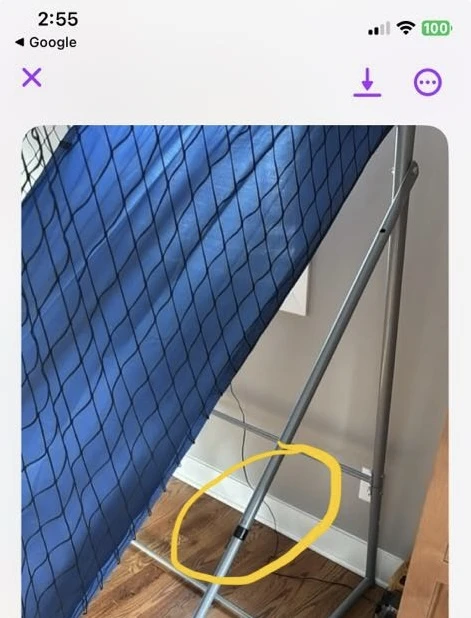

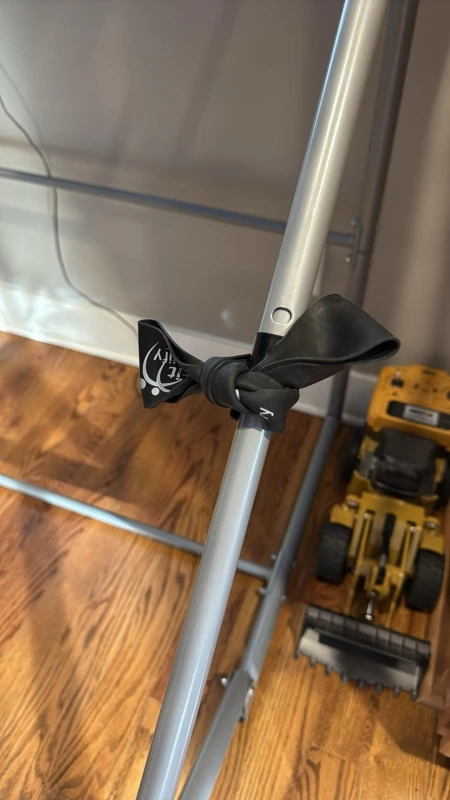

Hi! There is a joint on the pole the unit slides open and closed that is loose? How can I fix this? There is a rubber exercise band on it to temporarily “band aid” the issue.
To fix a loose joint on the pole of a Pop-A-Shot DUAL SHOT unit:
1. Identify the loose joint and check if the bolt or connector is properly tightened.
2. Use the provided wrenches (Parts #21 and #22) to tighten any loose bolts.
3. If bolts are missing or damaged, replace them with the correct type from the parts list (e.g., Short Bolt #16, Extra Long Bolt #15).
4. Ensure all washers (Part #17) and spacers (Part #14) are in place as needed.
5. Recheck alignment and stability after tightening.
If the issue persists, contact the provided support email for replacement parts.
This answer is automatically generated

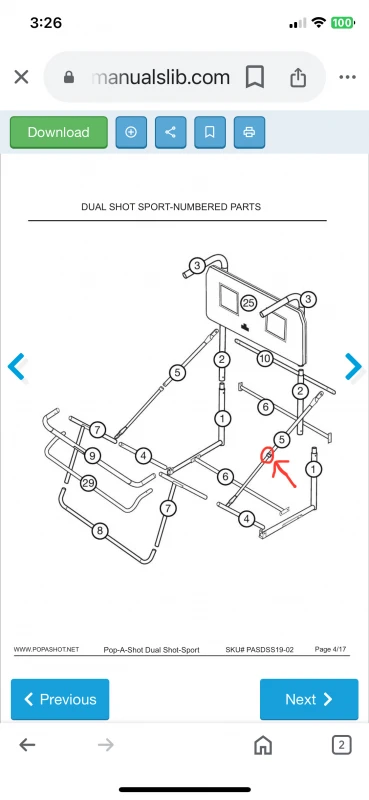

Hi! There is a joint on the pole the unit slides open and closed that is loose? How can I fix this? I already submitted this question but I couldn’t load more that one photo at a time. I apologize for the duplicate submissions!
To fix a loose joint on the pole of a Pop-A-Shot DUAL SHOT unit, check that the spring locks are fully engaged between the connected tubes. If the joint is still loose, disassemble the affected parts, inspect for damage or wear, and reattach them securely using the correct spring lock mechanism. Ensure all connections are tight and aligned properly. If parts are damaged, they should be repaired or replaced before further use.
This answer is automatically generated
Hi! There is a joint on the pole the unit slides open and closed that is loose? How can I fix this?
To fix a loose joint on the pole of a Pop-A-Shot DUAL SHOT unit, ensure the spring locks are properly engaged. Disassemble the joint if needed, then reinsert the tubes and firmly lock them using the spring locks. Check that all bolts, washers, and nuts are securely tightened using the provided wrenches. If a part is damaged, do not use the game until it's properly repaired.
This answer is automatically generated
Hello, I submitted a few questions over a week ago and I still haven’t received any answers or replies. I’m just checking in to see if anyone could help me please?
