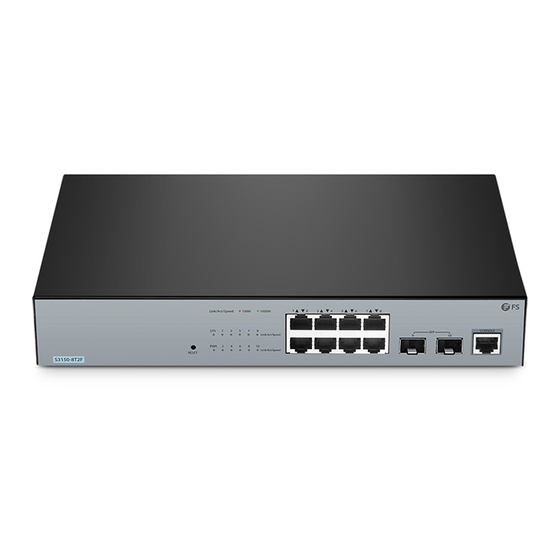

- Page 1 PoE+ Series Switches Reset and Recovery System Configuration Guide Models: S3150-8T2F S3400-24T4F S3260-8T2FP S3400-48T4SP S5500-48T8SP...
- Page 2 POE+ SERIES SWITCHES RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE Contents 1. Configuration Considerations................................1 2. Network Topology....................................1 3. Operation Steps.......................................1 3.1 Connection Equipment................................1 3.2 Download Configuration Software............................1 3.3 Switch on and Use Login Software.............................1 3.4 Restoration System..................................2 3.5 Switch to Factory Reset................................3 www.fs.com...
- Page 3 POE+ SERIES SWITCHES RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE 1. Configuration Considerations Table 1 products and versions for example Series Product Support version S3150-8T2F S3400-24T4F POE series S3260-8T2FP S3400-48T4SP S5500-48T8SP 2. Network Topology 3. Operation Steps 3.1 Connection Equipment #According to the way of networking topo to connect PC and switch to network cable and Console. One end of the RJ-45 network cable is connected to the PC NIC, and the other end is connected to the SW's network port.
- Page 4 If it displays an unrecognized USB device, please download and install the corresponding driver. 3.4 Restoration System Please use Ctrl + P to enter the monitor # interface when restarting the switch, then configure the switch IP address. monitor#ip address 192.168.1.1 255.255.255.0 * Set PC IP address www.fs.com...
- Page 5 * Then start upgrading the system: run copy tftp flash Monitor#copy tftp flash //From ftp to flash Source file name[ ]? FS-S1400-24T4F-2.2.0C.bin //Firmware file name Remote-server ip address[ ]? 192.168.1.2 //TFTP Server IP address Destination file name[FS-S1400-24T4F-2.2.0C.bin]? //Switch.bin When prompted: TFTP: successfulfully sent ...
