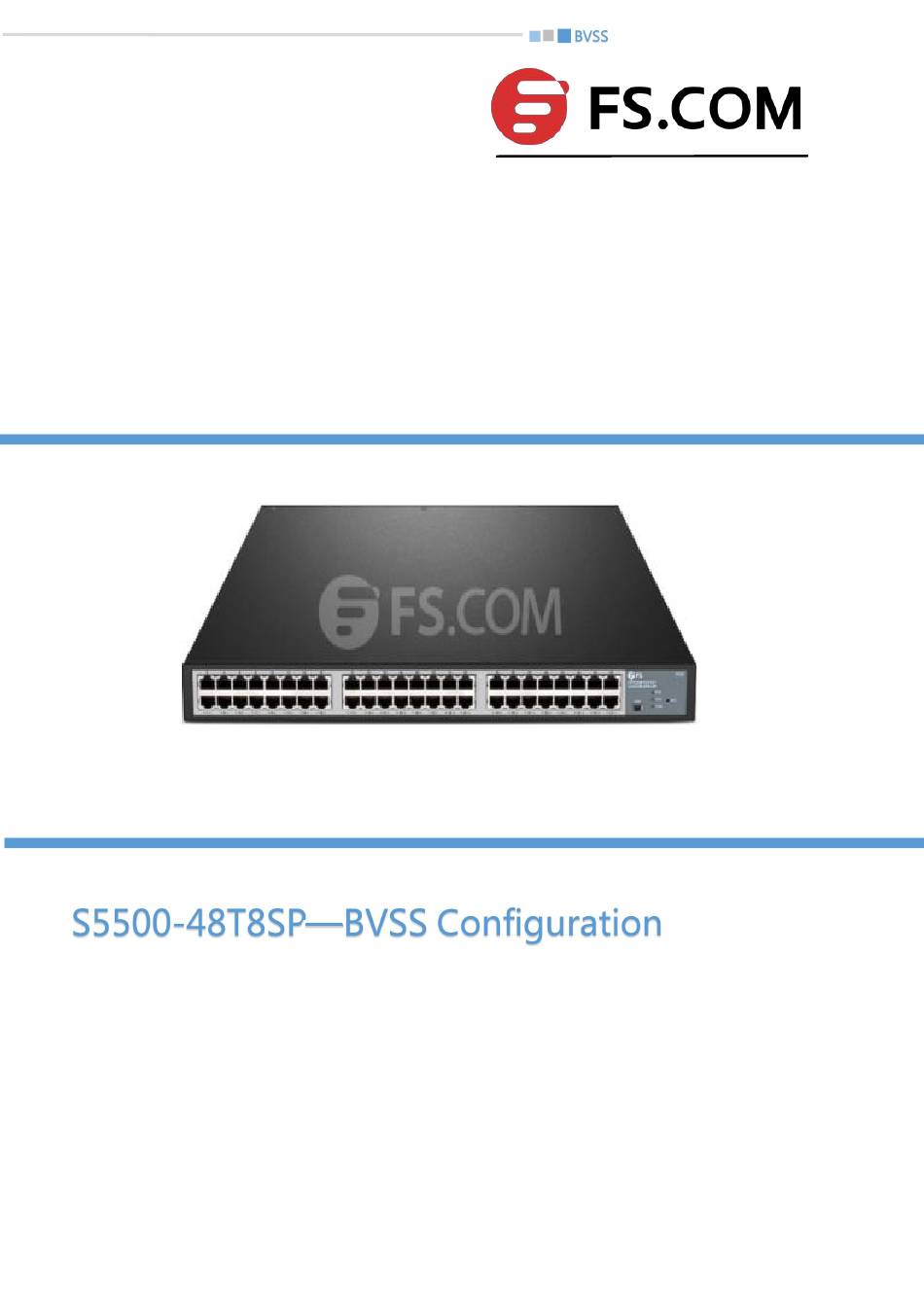

- Page 1 Managed Network & Data Center...
-
Page 2: Network Topology
1、Description Please use two cables or modules + jumper to stack devices.The device stack is called BVSS. 2、Precautions Please use the 10G port to stack 3、BVSS Configuration Network Topology Configuration Steps 1. Connect the device # Connect the PC and the switch to the network cable and the console port. Connect one end of the RJ-45 network cable to the network card interface of the PC and the other end to the network port of the SW. - Page 3 Note ： You can view the COM Number via Device Manager (right-click My Computer > Administration > Device Manager > Ports (COM and LPT). If an unrecognized USB device is displayed, download and install the corresponding driver. 4. Log in to the switch # After completing the above steps, hitting the Enter key of the keyboard will prompt you to enter the account password.
- Page 4 Switch>enable Switch#config Switch_config#bvss Switch_config_bvss#bvss enable Switch_config_bvss#bvss domain-id 1 Switch_config_bvss#bvss member-id 2 Switch_config_bvss#bvss priority 10 Switch_config_bvss#bvss mode normal Switch_config_bvss#bvss interface 1 type TGigaEthernet port 1 group 2 Switch_config_bvss#bvss interface 2 type TGigaEthernet port 2 group 2 Switch_config_bvss#quit Switch#write bvss-config Switch#reboot PS:This is the configuration command for two wires to be stacked. 3、After the customer completes the BVSS configuration, you can use the command: show interface brife ，to verify whether the stack is successful.
