FS S3150-8T2FP Quick Start Manual

Gigabit l2+ poe+ managed switches
Hide thumbs Also See for S3150-8T2FP:

Advertisement

Quick Links

GIGABIT L2+ POE+ MANAGED
SWITCHES
GIGABIT MANAGED L2+ POE+ SWITCHES
SWITCHS GIGABIT MANAGEABLES L2+ POE+
ギガビットL�+ Poe+マネージドスイッチ
Quick Start Guide
Quick-Start Anleitung
Guide de Démarrage Rapide
クイックスタートガイド
V7.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S3150-8T2FP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FS S3150-8T2FP

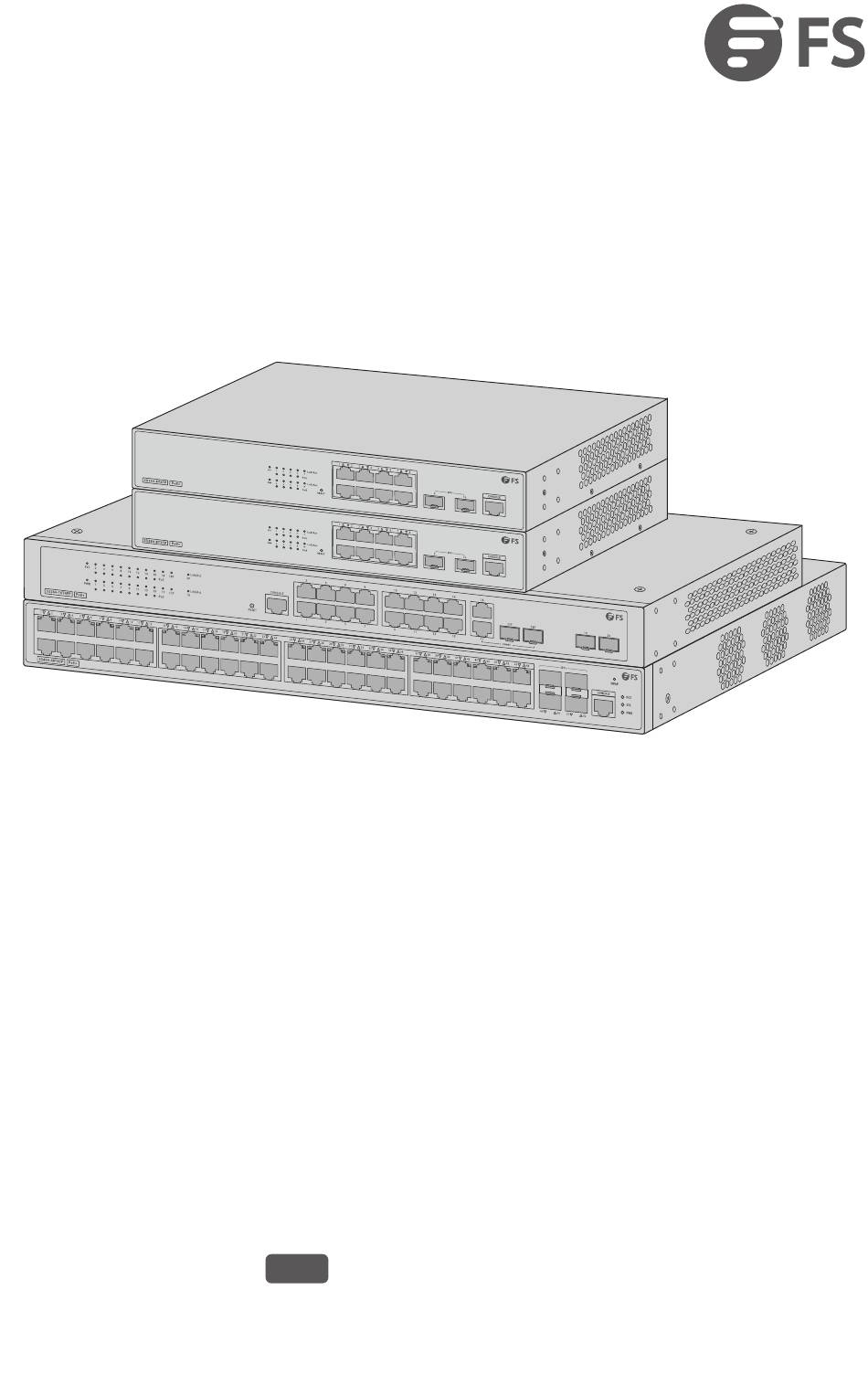

  • Page 1 GIGABIT L2+ POE+ MANAGED SWITCHES GIGABIT MANAGED L2+ POE+ SWITCHES SWITCHS GIGABIT MANAGEABLES L2+ POE+ ギガビットL�+ Poe+マネージドスイッチ Quick Start Guide V7.0 Quick-Start Anleitung Guide de Démarrage Rapide クイックスタートガイド...
  • Page 2 Introduction Thank you for choosing Gigabit L2+ PoE+ Managed Switches. This guide is designed to familiarize you with the layout of the switches and describes how to deploy them in your network. S3150-8T2FP S3260-8T2FP S3260-16T4FP S3400-48T4SP Accessories Power Cord x1...
  • Page 3: Hardware Overview

    1. This power cord cannot be used with other devices and other power cords should not be used with this device. 2. The accessories may vary from illustration, please prevail in kind. Hardware Overview Front Panel Ports S3150-8T2FP/S3260-8T2FP CONSOLE RJ45 S3260-16T4FP RJ45...
  • Page 4: Front Panel Leds

    Front Panel LEDs S3150-8T2FP/S3260-8T2FP Lnk/Act S3260-16T4FP Lnk/Act S3400-48T4SP LEDs State Description The switch is powered on. Blinking Green The system is working properly. ON/OFF The system is not working properly. Blinking Green Data is being transmitted or received. Lnk/Act ON/OFF The connection is not established.
  • Page 5 Front Panel Buttons S3150-8T2FP/S3260-8T2FP Reset S3260-16T4FP Reset Button Description Reset Restart and restore factory default settings. S3400-48T4SP SWAP Button Description Press the button and the indicator is on, and the indicator will SWAP automatically turn o after a while. If the indicator is on, the Ethernet...
  • Page 6: Installation Requirements

    Installation Requirements Before you begin the installation, make sure that you have the following: Phillips screwdriver. M6 screws. Standard-sized, 19" wide rack with a minimum of 1U height available. Category 5e or higher RJ45 Ethernet cables for connecting the network devices. Site Environment Do not operate it in an area that exceeds an ambient temperature of 50°C.
  • Page 7: Mounting The Switch

    Mounting the Switch Desk Mounting 1. Attach four rubber pads to the bottom. 2. Place the switch on a desk. Rack Mounting 1. Secure the mounting brackets to the two sides of the switch with eight M3 screws.
  • Page 8: Grounding The Switch

    2. Attach the switch to the rack using four M6 screws and four cage nuts. Grounding the Switch 1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the switch is mounted. 2.
  • Page 9 Connecting the RJ45 Ports 1. Connect one end of an Ethernet cable to the RJ45 port of IP cameras, IP telephones, Access Points (APs), or other network devices. 2. Connect the other end of the Ethernet cable to the RJ45 port of the switch. Connecting the SFP/SFP+ Ports 1.
  • Page 10: Connecting The Console Port

    Connecting the Console Port 1. Insert the RJ45 connector of the console cable into the RJ45 console port on the front of the switch. 2. Connect the other end of the console cable to the RS-232 serial port on the computer. Connecting the Power 1.
  • Page 11 Con guring the Switch Con guring the Switch Using the Web-Based Interface Step 1: Connect the computer to any Ethernet port of the switch using the network cable. Step 2: Set the IP address of the computer to 192.168.1.x ("x" is any number from 2 to 254). Set the subnet mask of the computer to 255.255.255.0.
  • Page 12 Step 4: After setting the parameters, click Connect to enter.
  • Page 13: Troubleshooting

    Troubleshooting Loading Failure Re-check if physical port connections are good rst. If some ports are not connected, then re-connect them to ensure that physical connections are correct, and begin re-loading. If physical connections are correct, then check the loading process information displayed on the super terminal to verify if there are input errors.
  • Page 14: Product Warranty

    Product Warranty FS ensures our customers that for any damage or faulty items due to our workmanship, we will o er a free return within 30 days from the day you receive your goods. This excludes any custom-made items or tailored solutions.
  • Page 15 Einführung Vielen Dank, dass Sie sich für die Gigabit Managed L2+ PoE+ Switches entschieden haben. Diese Anleitung soll Sie mit dem Aufbau der Switches vertraut machen und beschreibt, wie Sie sie in Ihrem Netzwerk einsetzen können. S3150-8T2FP S3260-8T2FP S3260-16T4FP S3400-48T4SP Zubehör...
  • Page 16 1. Dieses Netzkabel kann nicht mit anderen Geräten verwendet werden. Andere Netzkabel sollten nicht mit diesem Gerät verwendet werden. 2. Bitte beachten Sie, dass das Zubehör von der Abbildung abweichen kann. Hardware-Übersicht Ports an der Vorderseite S3150-8T2FP/S3260-8T2FP CONSOLE RJ45 S3260-16T4FP RJ45...
  • Page 17: Leds An Der Vorderseite

    LEDs an der Vorderseite S3150-8T2FP/S3260-8T2FP Lnk/Act S3260-16T4FP Lnk/Act S3400-48T4SP LEDs Status Beschreibung Der Switch ist eingeschaltet. Blinkt grün Das System funktioniert ordnungsgemäß. EIN/AUS Das System funktioniert nicht ordnungsgemäß. Blinkt grün Es werden Daten gesendet oder empfangen. Lnk/Act EIN/AUS Keine Verbindung hergestellt Der Switch ist mit einem PD-Gerät verbunden und funktioniert...
  • Page 18 Tasten an der Vorderseite S3150-8T2FP/S3260-8T2FP Reset S3260-16T4FP Reset Taste Beschreibung Reset Startet das Gerät neu und stellt die Werkseinstellungen wieder her. S3400-48T4SP SWAP Taste Beschreibung Wenn die Taste gedrückt wird, leuchtet die Anzeige auf. Nach einer SWAP Weile schaltet sich die Anzeige automatisch aus. Wenn die Anzeige...
  • Page 19 Installationsvoraussetzungen Bevor Sie mit der Installation beginnen, vergewissern Sie sich, dass Sie Folgendes zur Hand haben: Kreuzschlitzschraubendreher M6-Schrauben Ein 19"-Rack in Standardgröße mit einer Mindesthöhe von 1 HE. RJ45-Ethernet-Kabel der Kategorie 5e oder höher für den Anschluss der Netzwerkgeräte. Betriebsumgebung Betreiben Sie das Gerät nicht in einem Bereich, in dem die Umgebungstemperatur 50 °C übersteigt.
  • Page 20: Montage Des Switches

    Montage des Switches Tisch-Montage 1. Bringen Sie vier Gummipads an der Unterseite an. 2. Stellen Sie den Switch auf einen Tisch. Rack-Montage 1. Befestigen Sie die Montagehalterungen mit acht M3-Schrauben an den beiden Seiten des Switches.
  • Page 21 2. Befestigen Sie den Switch mit vier M6-Schrauben und vier Kä gmuttern am Rack. Erdung des Switches 1. Schließen Sie ein Ende des Erdungskabels an eine geeignete Erdung an, z. B. an das Rack, in dem der Switch montiert ist. 2.
  • Page 22 Anschließen der RJ45-Ports 1. Schließen Sie ein Ende eines Ethernet-Kabels an den RJ45-Port von IP-Kameras, IP-Telefonen, Access Points (APs) oder anderen Netzwerkgeräten an. 2. Schließen Sie das andere Ende des Ethernet-Kabels an den RJ45-Port des Switches an. Anschließen der SFP/SFP+-Ports 1.
  • Page 23: Anschließen Der Stromversorgung

    Anschließen des Console-Ports 1. Stecken Sie den RJ45-Steckverbinder des Console-Kabels in den RJ45-Console-Port an der Vorderseite des Switches. 2. Schließen Sie das andere Ende des Console-Kabels an den seriellen RS-232-Port des Computers an. Anschließen der Stromversorgung 1. Stecken Sie das eine Ende des AC-Netzkabels in den Netz-Port an der Rückseite des Switches.
  • Page 24 Kon gurieren des Switches Kon gurieren des Switches mithilfe der webbasierten Schnittstelle Schritt 1: Schließen Sie den Computer über das Netzwerkkabel an einen beliebigen Ethernet-Port des Switches an. Schritt 2: Stellen Sie die IP-Adresse des Computers auf 192.168.1.x ein („x“ ist eine beliebige Zahl von 2 bis 254).
  • Page 25 Schritt 4: Nachdem Sie die Parameter eingestellt haben, klicken Sie auf Connect, um die Verbindung herzustellen.
  • Page 26: Fehlerbehebung

    Fehlerbehebung Fehler beim Ladevorgang Überprüfen Sie zunächst, ob die physischen Verbindungen korrekt angeschlossen sind. Wenn einige Ports nicht verbunden sind, schließen Sie sie erneut an, um sicherzustellen, dass die physischen Verbindungen korrekt sind, und beginnen Sie erneut mit dem Laden. Wenn die physischen Verbindungen korrekt sind, überprüfen Sie die auf dem Superterminal angezeigten Informationen zum Ladevorgang, um festzustellen, ob es Eingabefehler gibt.
  • Page 27 Produktgarantie FS garantiert seinen Kunden, dass wir bei Schäden oder fehlerhaften Artikeln, die auf unsere Verarbeitung zurückzuführen sind, eine kostenlose Rückgabe innerhalb von 30 Tagen nach Erhalt der Ware anbieten. Dies gilt nicht für Sonderanfertigungen oder maßgeschneiderte Lösungen. Garantie: Für die Produkte gilt eine eingeschränkte Garantie von 4 Jahren auf Material- und Verarbeitungsfehler.
  • Page 28 Introduction Nous vous remercions d'avoir choisi les Switchs Gigabit Manageables L2+ POE+. Ce guide a pour but de vous familiariser avec la con guration du switch et indique comment procéder à son déploiement. S3150-8T2FP S3260-8T2FP S3260-16T4FP S3400-48T4SP Accessoires Câble d'Alimentation x1 Câble de Console x1...
  • Page 29: Présentation Du Matériel

    être utilisés avec cet appareil. 2. Les accessoires peuvent di érer de l’illustration, s’il vous plaît prévaloir en nature. Présentation du Matériel Ports du Panneau Frontal S3150-8T2FP/S3260-8T2FP CONSOLE RJ45 S3260-16T4FP RJ45 CONSOLE...
  • Page 30 LED du Panneau Frontal S3150-8T2FP/S3260-8T2FP Lnk/Act S3260-16T4FP Lnk/Act S3400-48T4SP État Description Activé Le switch est sous tension. Vert Clignotant Le système fonctionne correctement. Activé/Éteint Le système ne fonctionne pas correctement. Vert Clignotant Des données sont transmises ou reçues. Lnk/Act Activé/Éteint La connexion n’est pas établie.
  • Page 31 Boutons du Panneau Frontal S3150-8T2FP/S3260-8T2FP Reset S3260-16T4FP Reset Bouton Description Reset Redémarrez et restaurez les paramètres d’usine par défaut. S3400-48T4SP SWAP Bouton Description Appuyez sur le bouton et l’indicateur est allumé, et l’indicateur SWAP s’éteindra automatiquement après un certain temps. Si le voyant est...
  • Page 32: Conditions D'installation

    Conditions d'Installation Avant de commencer l'installation, assurez-vous que vous disposez des éléments suivants : Tournevis cruciforme. Vis M6. Rack de taille standard de 19 pouces de large avec une hauteur minimale de 1U disponible. Câbles Ethernet RJ45 de catégorie 5e ou supérieure pour la connexion des périphériques réseau..
  • Page 33: Installation Sur Bureau

    Installation du Switch Installation sur Bureau 1. Fixez les quatre patins en caoutchouc aux quatre coins du bas du switch. 2. Placez le switch sur un bureau. Installation en Rack 1. Fixez les supports de montage sur les deux côtés du switch avec huit vis M3.
  • Page 34 2. Fixez le switch au rack à l'aide de quatre vis M6 et quatre écrous cage. Mise à la Terre du Switch 1. Connectez une extrémité du câble de mise à la terre à une terre appropriée, telle que le rack dans lequel le switch est installé.
  • Page 35 Connexion des Ports RJ45 1. Connectez une extrémité d’un câble Ethernet au port RJ45 des caméras IP, des téléphones IP, des points d’accès (AP) ou d’autres périphériques réseau. 2. Connectez l’autre extrémité du câble Ethernet au port RJ45 du switch. Connexion des Ports SFP/SFP+ 1.
  • Page 36: Branchement De L'alimentation

    ATTENTION : Les faisceaux laser provoqueront des lésions oculaires. Ne regardez pas dans les alésages des émetteurs-récepteurs ou des bres optiques sans protection oculaire. Connexion du Port Console 1. Insérez le connecteur RJ45 du câble de console dans le port de console RJ45 du switch. 2.
  • Page 37 AVERTISSEMENT : Ne pas branchez le câble d'alimentation lorsque l'interrupteur de mise en marche est en position ON (sous tension). Con guration du Switch Con guration du Switch à l'Aide de l'Interface Web Étape 1 : Connectez l'ordinateur au port de gestion du switch à l'aide du câble réseau. Étape 2 : Dé...
  • Page 38 Étape 4 : Après avoir dé ni les paramètres, cliquez sur Connect pour entrer.
  • Page 39: Dépannage

    Dépannage Échec du Chargement Véri ez d’abord à nouveau si les connexions des ports physiques sont bonnes. Si certains ports ne sont pas connectés, reconnectez-les pour vous assurer que les connexions physiques sont correctes et commencez à recharger. Si les connexions physiques sont correctes, véri ez les informations sur le processus de chargement a chées sur le super terminal pour véri er s’il y a des erreurs de saisie.
  • Page 40: Garantie Du Produit

    Garantie du Produit FS garantit à ses clients que tout article endommagé ou défectueux en raison de sa fabrication pourra être retourné gratuitement dans un délai de 30 jours à compter de la date de réception de la marchandise. Cette garantie ne s'applique pas aux articles fabriqués sur mesure ou aux solutions personnalisées.
  • Page 41 イントロダクション この度は、ギガビットL�+ Poe+マネージドスイッチをお選びいただき誠にありがとうござ います。このガイドは、スイッチのレイアウトに慣れ、ネットワークにスイッチを導入す る方法を説明するためのものです。 S3150-8T2FP S3260-8T2FP S3260-16T4FP S3400-48T4SP アクセサリー 電源コード x� コンソールケーブル x� 接地ケーブル x� ラック取り付けブラケット x� ゴムパッド x� М�ネジ x� ネットワークケーブル x� М�ネジ x� М�ケージナット x�...
  • Page 42 注:1. この電源コードを他の機器に使用したり、他の電源コードをこの機器に 使用したりしないでください。 2. 付属品はイラストと異なる場合がありますので、あらかじめご了承ください。 ハードウェア概要 フロントパネルポート S3150-8T2FP/S3260-8T2FP CONSOLE RJ45 S3260-16T4FP RJ45 CONSOLE COMBO S3400-48T4SP RJ45 SFP+ CONSOLE ポート 説明 RJ�� イーサネット接続用��/���/����BASE-Tポート RJ��/SFPコンボ RJ��ポート×�、SFPポート×�、同時に�ポート使用可能 �G接続用SFPポート SFP+ ��G接続用SFP+ポート CONSOLE シリアル管理用RJ��コンソールポート...
  • Page 43 フロントパネルLED S3150-8T2FP/S3260-8T2FP Lnk/Act S3260-16T4FP Lnk/Act S3400-48T4SP 状態 説明 点灯 スイッチの電源が入っています。 点減(緑) システムは良好な状態で作動しています。 点灯/消灯 システムが異常に動作します。 点減(緑) データが送受信中です。 Lnk/Act 点灯/消灯 接続が確立されていません。 点灯 スイッチはPDデバイスに接続され、正常に動作しています。...
  • Page 44 フロントパネルボタン S3150-8T2FP/S3260-8T2FP リセット S3260-16T4FP リセット ボタン 説明 リセット 再起動し、工場出荷時のデフォルト設定に戻します。 S3400-48T4SP SWAP ボタン 説明 ボタンを押すとインジケータが点灯し、しばらくすると自動的に消灯 します。インジケータが点灯している場合、イーサネットポートイン SWAP ジケータはPoE給電を示します。...
  • Page 45 設置条件 インストールを開始する前に、以下を確認してください。 プラスドライバー。 M6ネジ。 最低1Uの高さが利用可能な標準サイズの19インチ幅ラック。 ネットワーク機器接続用のカテゴリー5e以上のRJ45イーサネットケーブル。 設置環境 周囲温度が50℃を超える場所では使用しないでください。. 設置場所の換気は十分に行ってください。 危険な状態を避けるため、スイッチが水平で安定していることを確認してください。 埃の多い環境には設置しないでください。 設置場所には、水漏れや水滴、激しい露、湿気がないようにしてください。 ラックと作業台がしっかりと接地していることを確認してください。...
  • Page 46 スイッチの取り付け デスクマウント �. 底に�つのゴムパッドを取り付けます。 �. スイッチを机の上に置きます。 ラックマウント �. �本のM�ネジで取付けブラケットをスイッチの両側面に固定します。...
  • Page 47 �. �本のM�ネジとケージナットを使用して、スイッチをラックに取り付けます。 スイッチの接地 �. 接地ケーブルの一端を、 スイッチが取り付けられているラックなど、 適切な接地場所に 接続します。 �. 接地ラグをスイッチのバックパネルにある接地ポイントにネジとワッシャで固定します。 注意:すべての電源接続が切断されていない限り、アース接続を取り外してはな りません。...
  • Page 48 RJ��ポートの接続 �. イーサネットケーブルの一端をIPカメラ、IP電話、アクセスポイント(AP)、その他のネッ トワーク機器のRJ��ポートに接続します。 �. イーサネットケーブルのもう一方の端をスイッチのRJ��ポートに接続します。 SFP/SFP+ポートの接続 �. 互換性のあるSFP/SFP+トランシーバーをSFP/SFP+ポートに差し込みます。 �. 光ファイバケーブルの一端をファイバトランシーバーに接続します。次に、ケーブルのも う一方の端を他のファイバデバイスに接続します。 警告:レーザー光線は目に損傷を与える可能性があります。目を保護せずに光 モジュールや光ファイバの穴をのぞきこまないでください。...
  • Page 49 コンソールポートの接続 �. コンソールケーブルのRJ��コネクタをスイッチ前面のRJ��コンソールポートに差し込み ます。 �. コンソールケーブルのもう一方の端をコンピュータのRS-���シリアルポートに接続し ます。 電源の接続 �. AC電源コードの一端をスイッチ背面の電源ポートに接続します。 �. 電源コードのもう一方をAC電源に接続します。 警告:電源を入れたまま、電源ケーブルを取り付けないでください。...
  • Page 50 スイッチの設定 ウェブベースのインターフェイスを使用したスイッチの設定 ステップ�:ネットワークケーブルを使用して、コンピュータをスイッチのイーサネットポ ートに接続します。 ステップ�:コンピューターのIPアドレスを���.���.�.xに設定します(「x」は�から���ま での任意の数字)。コンピュータのサブネットマスクを���.���.���.�に設定 します。 ステップ�:ブラウザーを開き、「http://���.���.�.�」と入力し、デフォルトのユーザー名 とパスワードadmin/adminを入力します。 ステップ�:「ログイン」をクリックして、ウェブベースの設定ページを表示します。 コンソールポートを使用したスイッチの設定 ステップ�:付属のコンソールケーブルを使用して、コンピュータをスイッチのコンソール ポートに接続します。 ステップ�:パソコンでHyperTerminalなどの端末シミュレーションソフトを起動します。 ステップ�:HyperTerminalのパラメータを、������ビット/秒、�データビット、パリティ なし、�ストップビット、フロー制御なしに設定します。...
  • Page 51 ステップ4:パラメータの設定後、「Connect」をクリックして入ります。...
  • Page 52 トラブルシューティング 読み込み失敗 まず、物理的なポート接続が正常かどうかを再確認してください。 接続されていないポートがある場合は、再接続して物理的な接続が正しいことを確認 し、再ロードを開始します。 物理的な接続が正しい場合は、スーパーターミナルに表示されるロードプロセス情報 を確認し、入力エラーがないかどうかを確認してください。 入力ミスがある場合は、修正して再ロードしてください。 パスワードの紛失 システムパスワードを紛失したり忘れたりした場合は、以下の方法でパスワードをリセット することができます。 1. コンソールケーブルでスイッチのコンソールポートとコンピュータを接続します。 2. ctrl + pを押して、Monitor#インターフェイスに入ります。 3. 設定ファイルを削除してリセットを実現します。 monitor#delete startup-con g このファイルは消去されますが、よろしいですか?(y/n)y, monitor#reboot スイッチを再起動しますか(y/n)?y 注:ユーザー名とパスワードを忘れてコンソールポートから復元すると、設定 が失われ、業務に支障をきたすことがあります。ユーザー名とパスワードを忘 れないようにしてください。 設定システムのトラブルシューティング 1. 電源が正常であること、コンソールケーブルが正しく接続されていることを確認してく ださい。 2. コンソールケーブルが正しいタイプか確認してください。 3. コントロールケーブルのドライバがコンピュータに正しくインストールされているか 確認してください。 4. HyperTerminalのパラメータが正しいことを確認してください。...
  • Page 53 製品保証 FSでは、弊社の製造技術による破損や不良品については、製品をお受け取りになった日か ら��日以内であれば、無料で返品を承ります。ただし、これにはカスタム製品やオーダー メイドは含まれません。 保証:この製品は、材料または製造上の欠陥に対して4年間の限定保証を提供し ます。保証の詳細については、次のサイトでご確認ください: https://www.fs.com/jp/policies/warranty.html 返品:返品したい場合は、返品方法に関する情報が次のサイトにご覧ください: https://www.fs.com/jp/policies/day_return_policy.html オンラインリソース その他の技術資料については、 こちらをご覧ください: https://www.fs.com/jp/products_support.html FSアプリをダウンロード QRコードを読み取り、 App StoreまたはGoogle Play StoreからFSアプリ をダウンロードしてインス トールするか、 https://www.fs.com/jp/ap- pdownload.htmlにアクセスして ください。...
  • Page 54: Compliance Information

    2014/35/EU, 2011/65/EU und (EU)2015/863 konform ist. Eine Kopie der EU-Konformitätserklärung nden Sie unter www.fs.com/de/company/quality_control.html. FS.COM GmbH déclare par la présente que ce dispositif est conforme à la Directive 2014/30/EU, 2014/35/EU, 2011/65/EU et (EU)2015/863. Une copie de la Déclaration de Conformité de l'UE est disponible à l'adresse suivante https://www.fs.com/fr/company/quality_control.html.
  • Page 55 UKCA S3150-8T2FP/S3260-8T2FP/S3260-16T4FP/S3400-48T4SP Hereby, FS.COM Innovation Ltd declares that this device is in compliance with the Directive SI 2016 No. 1091, SI 2016 No. 1101and SI 2012 NO. 3032. FS.COM INNOVATION LTD Unit 8, Urban Express Park, Union Way, Aston, Birmingham, B6 7FH, United Kingdom...
  • Page 56 Do not dispose of WEEE as unsorted municipal wasteand have to collect such WEEE separately. VCCI-CLASS A Equipment Warning S3150-8T2FP/S3260-8T2FP/S3260-16T4FP/S3400-48T4SP この装置は、クラスA機器です。この装置を住宅環境で使用すると電波妨害を 引き起こすことがあります。この場合には使用者が適切な対策を講ずるよう要 求されることがあります。 VCCI -A Q.C. PASSED Copyright © 2024 FS.COM All Rights Reserved.

This manual is also suitable for:

S3260-8t2fpS3260-16t4fpS3400-48t4sp
