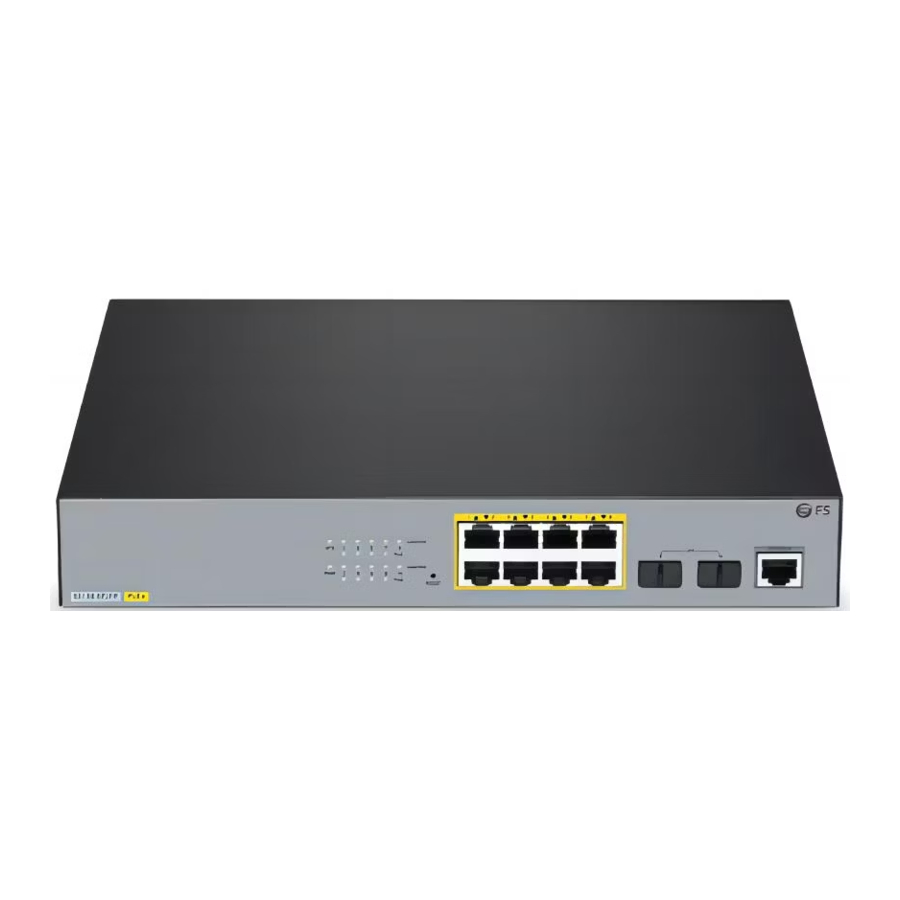

FS S3150-8T2FP, S3260-8T2FP, S3260-16T4FP, PoE+ Series Manual

Configuring SNMP

Overview

The SNMP system includes the following parts:

• SNMP management side (NMS)
• SNMP agent (AGENT)
• Management information base (MIB)

SNMP is a protocol working on the application layer. It provides the packet format between SNMP management side and agent.
SNMP management side can be part of the network management system (NMS, like CiscoWorks). Agent and MIB are stored on the system. You need to define the relationship between network management side and agent before configuring SNMP on the system.
SNMP agent contains MIB variables-SNMP management side can check or modify value of these variables. The management side can get the variable value from agent or stores the variable value to agent. The agent collects data from MIB. MIB is the database of device parameter and network data. The agent also can respond to the loading of the management side or the request to configure data. SNMP agent can send trap to the management side. Trap sends alarm information to NMS indicating a certain condition of the network. Trap can point out improper user authentication, restart, link layer state (enable or disable), close of TCP connection, lose of the connection to adjacent systems or other important events.

SNMP notification

When some special events occur, the system will send 'inform' to SNMP management side. For example, when the agent system detects an abnormal condition, it will send information to the management side.
SNMP notification can be treated as trap or inform request to send. Since the receiving side doesn't send any reply when receiving a trap, this leads to the receiving side cannot be sure that the trap has been received. Therefore the trap is not reliable. In comparison, SNMP management side that receives "inform request" uses PDU that SNMP echoes as the reply for this information. If no "inform request" is received on the management side, no echo will be sent. If the receiving side doesn't send any reply, then you can resend the "inform request". Then notifications can reach their destination.
Since inform requests are more reliable, they consume more resources of the system and network. The trap will be discarded when it is sent. The "inform request" has to be stored in the memory until the echo is received or the request timeouts. In addition, the trap is sent only once, while the "inform request" can be resent for many times. Resending "inform request" adds to network communications and causes more load on network. Therefore, trap and inform request provide balance between reliability and resource. If SNMP management side needs receiving every notification greatly, then the "inform request" can be used. If you give priority to the communication amount of the network and there is no need to receive every notification, then trap can be used.
This OLT only supports trap, but we provide the extension for "inform request".

SNMP Version

System of our company supports the following SNMP versions:

• SNMPv1 — simple network management protocol, a complete Internet standard, which is defined in RFC1157.
• SNMPv2C — Group-based Management framework of SNMPv2, Internet test protocol, which is defined in RFC1901

Layer 3 switch of our company also supports the following SNMP:

• SNMPv3 — a simple network management protocol version 3, which is defined in RFC3410.

SNMPv1 uses group-based security format. Use IP address access control list and password to define the management side group that can access to agent MIB.
SNMPv3 provides secure access to devices by a combination of authenticating and encrypting packets over the network.

The security features provided in SNMPv3 are:

• Message integrity — Ensuring that a packet has not been tampered with in-transit.
• Authentication — Determining the message is from a valid source.
• Encryption — Scrambling the contents of a packet prevent it from being seen by an unauthorized source.

SNMPv3 provides for both security models and security levels. A security model is an authentication strategy that is set up for a user and the group in which the user resides. A security level is the permitted level of security within a security model. SNMPv3 supports three security levels based on the user's security model, that is (from high to low), authentication and encryption, authentication and no encryption, no authentication. With MD5 or SHA hash algorithm, the password will not be revealed. With DES encryption, the device will not be wiretapped by a third party. To realize identity authentication of the device, you need to configure user/password pair and the group belongs to the user. To determine the access permission to the management information database, you need to configure group and view. Meanwhile, the group limits the lowest security level of users in the group.

You need to configure SNMP agent to the SNMP version that the management working station supports. The agent can communicate with many management sides.

Supported MIB

SNMP of our system supports all MIBII variables (which will be discussed in RFC 1213) and SNMP traps (which will be discussed in RFC 1215).
Our system provides its own MIB extension for each system.

SNMP Configuration Tasks

SNMP Configuration Tasks include:

• Configuring SNMP view
• Creating or modifying the access control for SNMP community
• Configuring the contact method of system administrator and the system's location
• Defining the maximum length of SNMP agent data packet
• Monitoring SNMP state
• Configuring SNMP local engine
• Configuring SNMP trap
• Configuring SNMPv3 group
• Configuring SNMPv3 user
• Configuring snmp-server encryption
• Configuring snmp-server trap-source
• Configuring snmp-server trap-timeout
• Configuring snmp-server trap-add-hostname
• Configuring snmp-server trap-logs
• Configuring snmp-dos-max retry times
• Configuring keep-alive times
• Configuring snmp-server necode
• Configuring snmp-server event-id
• Configuring snmp-server getbulk-timeout
• Configuring snmp-server getbulk-delay
• Showing snmp running information
• Showing snmp debug information

1. Configuring SNMP view
   The SNMP view is to regulate the access rights (include or exclude) for MIB. Use the following command to configure the SNMP view.

The subsets that can be accessed in the SNMP view are the remaining objects that "include" MIB objects are divided by "exclude" objects. The objects that are not configured are not accessible by default.
After configuring the SNMP view, you can implement SNMP view to the configuration of the SNMP group name, limiting the subsets of the objects that the group name can access.

2. Creating or modifying the access control for SNMP community
   You can use the SNMP community character string to define the relationship between SNMP management side and agent. The community character string is similar to the password that enables the access system to log in to the agent. You can specify one or multiple properties relevant with the community character string. These properties are optional:
   Allowing to use the community character string to obtain the access list of the IP address at the SNMP management side
   Defining MIB views of all MIB object subsets that can access the specified community
   Specifying the community with the right to read and write the accessible MIB objects
   Configure the community character string in global configuration mode using the following command:

You can configure one or multiple group character strings. Run command "no snmp-server community" to remove the specified community character string.
For how to configure the community character string, refer to the part "SNMP Commands".

3. Configuring the contact method of system administrator and the system's location
   SysContact and sysLocation are the management variables in the MIB's system group, respectively defining the linkman's identifer and actual location of the controlled node. These information can be accessed through config. files. Run the following commands in global configuration mode:

4. Defining the maximum length of SNMP agent data packet
   When SNMP agent receives requests or sends response, you can configure the maximum length of the data packet. Run the following commands in global configuration mode:

5. Monitoring SNMP state
   You can run the following command in global configuration mode to monitor SNMP output/input statistics, including illegal community character string items, number of mistakes and request variables

6. Configuring SNMP local engine
   Run the following command in the global mode to configure SNMP local engine.

7. Configuring SNMP trap
   Use the following command to configure the system to send the SNMP traps (the second task is optional):
   • Configuring the system to send trap
     Run the following commands in global configuration mode to configure the system to send trap to a host

When the system is started, the SNMP agent will automatically run. All types of traps are activated. You can use the command snmp-server host to specify which host will receive which kind of trap.

Some traps need to be controlled through other commands. For example, if you want SNMP link traps to be sent when an interface is opened or closed, you need to run snmp trap link-status in interface configuration mode to activate link traps. To close these traps, run the interface configuration command snmp trap link-stat.
You have to configure the command snmp-server host for the host to receive the traps

• Modifying the running parameter of the trap
  As an optional item, it can specify the source interface where traps originate, queue length of message or value of resending interval for each host.
  To modify the running parameters of traps, you can run the following optional commands in global configuration mode.

8. Configuring the SNMP binding source address
   Run the following command in the global configuration mode to set the source address for the SNMP message.

9. Configuring snmp-server udp-port
   Run the following command in the global mode to configure snmp-server udp-port

10. Configuring SNMPv3 group
    Configuring SNMPv3 group

11. Configuring SNMPv3 user
    You can run the following command to configure a local user. When an administrator logs in to a device, he has to use the username and password that are configured the device. The security level of a user must be higher than or equals to that of the group which the user belongs to. Otherwise, the user cannot pass authentication.

12. Configuring snmp-server encryption
    To display the configured SNMP community, the SHA encryption password and the MD5 encryption password, run snmp-server encryption in global mode. This command is a once-for-all command, which cannot be saved or canceled by its negative form. Format of the command is as follows:

13. Configuring snmp-server trap-source
    To designate an interface to be the source address of all traps, run the following first command in global configuration mode. To cancel this interface, run the following second command.

14. Configuring snmp-server trap-timeout
    To set the timeout value of retransmitting traps, run the following first command in global configuration mode

15. Configuring snmp-server trap-add-hostname
    To add the host name to the binding variable when SNMP sends traps, run the first one of the following two commands.

16. Configuring snmp-server trap-logs
    To write the trap transmission records into logs, run the first one of the following two commands

17. Configuring snmp -dos-max retry times
    To set the incorrect community login retry times in five minutes on the SNMP server, run the first one of the following two commands.

The command must be used with snmp-server host.

18. Configuring keep-alive times
    To set the timely sending heartbeat trap, run snmp-server keep-alive in global configuration mode. The time interval is times

19. Configuring snmp-server necode
    To set the information about the management node (the unique identifier of the device), run snmp-server necode text. To delete the identifier information, use the no form of this command.

20. Configuring snmp-server event-id
    To create and set event list, run command snmp-server event-id in the global configuration mode. To delete the event list, use the no form of this command.

21. Configuring snmp-server getbulk-timeout
    To set the timeout of processing getbulk request, run command snmp-server getbulk-timeout in the global configuration mode. If all getbulk requests cannot be processed in timeout, the system will return to the current result directly. To delete the configuration, use the no form of this command.

22. Configuring snmp-server getbulk-delay
    To set getbulk-delay time to prevent snmp occupying excessive cpu when snmp agent processing getbulk request, run command snmp-server getbulk-delay in the global configuration mode. The unit is 0.01 seconds. To delete the configuration, use the no form of this command

23. Showing snmp running information
    To monitor SNMP input and output statistics, including illegal community character strings, the number of errors and request variables, run command show snmp. To show SNMP engine information, run command show snmp enginelD. To show SNMP trap host information, run command show snmp host. To show SNMP view information, run command show snmp view. To show snmp mibs registration information, run command show snmp mibs. To show snmp group information, run command show snmp group. To show SNMP user information, run command show snmp user.

24. Showing snmp debug information
    To show SNMP event, packet sending and receiving process and error information, run command debug snmp.

Configuration Example

1. Example 1
   snmp-server community public RO
   snmp-server community private RW
   snmp-server host 192.168.10.2 public
   The above example shows: how to set the community string public that can only read all MIB variables. how to set the community string private that can read and write all MIB variables. The above command specifies the community string public to send traps to 192.168.10.2 when a system requires to send traps. For example, when a port of a system is in the down state, the system will send a linkdown trap information 192.168.10 2.
2. Example 2
   snmp-server group getter v3 auth
   snmp-server group setter v3 priv write v-write
   snmp-server user get-user getter v3 auth sha 12345678
   snmp-server user set-user setter v3 encrypted auth md5 12345678
   snmp-server view v-write internet included
   The above example shows how to use SNMPv3 to manage devices. Group getter can browse device information, while group setter can set devices. User get-user belongs to group getter while user set-user belongs to group setter. For user get-user, its security level is authenticate but not encrypt, its password is 12345678, and it uses the sha arithmetic to summarize the password

RMON Configuration

RMON configuration tasks include:

• Configuring the rMon alarm function for the switch
• Configuring the rMon event function for the switch
• Configuring the rMon statistics function for the switch
• Configuring the rMon history function for the switch
• Displaying the rMon configuration of the switch

Configuring the rMon alarm function for the unit

You can configure the rMon alarm function through the command line or SNMP NMS. If you configure through SNMP NMS, you need to configure the SNMP of the switch. After the alarm function is configured, the device can monitor some statistic value in the system. The following table shows how to set the rMon alarm function:

After a rMon alarm item is configured, the device will obtain the value of variable-specified oid after an interval. The obtained value will be compared with the previous value according to the alrm type (absolute or delta). If the obtained value is bigger than the previous value and surpasses the threshold value specified by rising-threshold, an event whose index is eventnumber (If the value of eventnumber is 0 or the event whose index is eventnumber does not exist in the event table, the event will not occur). If the variable-specified oid cannot be obtained, the state of the alarm item in this line is set to invalid. If you run rmon alarm many times to configure alarm items with the same index, only the last configuration is effective. You can run no rmon alarm index to cancel alarm items whose indexes are index.

Configuring the rMon event function for the unit

The steps to configure the rMon event are shown in the following table:

After a rMon event is configured, you must set the domain eventLastTimeSent of the rMon event item to sysUpTime when a rMon alarm is triggered. If the log attribute is set to the rMon event, a message is added to the log table. If the trap attribute is set to the rMon event, a trap message is sent out in name of community. If you run rmon event many times to configure event items with the same index, only the last configuration is effective. You can run no rmon event index to cancel event items whose indexes are index.

Configuring the rMon statistics function for the unit

The rMon statistics group is used to monitor the statistics information on every port of the device. The steps to configure the rMon statistics are as follows:

If you run rmon event many times to configure status items with the same index, only the last configuration is effective. You can run no rmon event index to cancel event items whose indexes are index.

Configuring RMON history for the unit

The RMON history group is used to collect statistics information of different time sections on a port in a device. The steps to configure the rMon statistics are as follows:

After a rMon history item is added, the device will obtain statistics values from the specified port every second. The statistics value will be added to the history item as a piece of information. If you run rmon collection history index many times to configure history items with the same index, only the last configuration is effective. You can run no rmon history index to cancel history items whose indexes are index. Note: Too much system sources will be occupied in the case the value of bucket-number is too big or the value of interval second is too small.

Displaying RMON configuration of the unit

Run show to display the RMON configuration of the switch.
