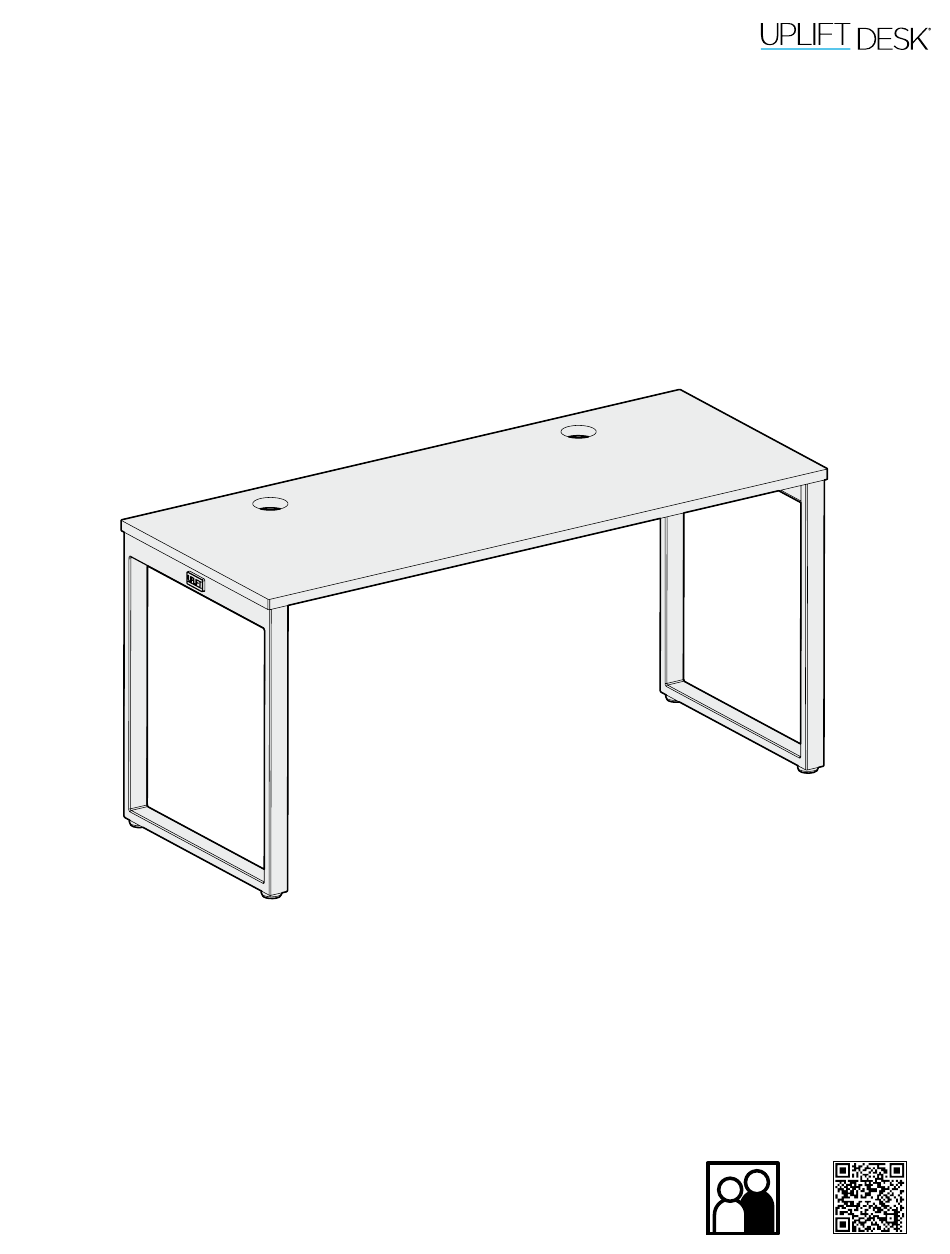

- Page 1 Seated Height O-Leg Table FRM415 Two person Scan QR code for assembly product webpage For assembly assistance, visit upliftdesk.com/contact, or call 800-349-3839, or email info@upliftdesk.com Patented, ©2023 UPLIFT Desk®. All Rights Reserved.
-
Page 2: Package Contents
Safety and Warnings WARNING: Inspect the table regularly and stop using immediately if you notice any damaged or loose parts. Only replace damaged parts with authorized UPLIFT Desk parts and instructions. Warning: The table is designed for use in dry environments, indoors only. -
Page 3: Component Diagram
Lay out the components from all boxes and make sure the items and quantities match what is shown in each of the package contents sections in these instructions. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... - Page 4 Step 2 - Attach Crossbar End A. Place one of the O-Legs (P1) on the ground with the two tabs facing up as shown. B. Position one of the Crossbar Ends (P2) between the tabs of the O-Leg so the holes in the O-Leg and the holes in the Crossbar End are aligned.
- Page 5 C. Place the Leg assembly from Step 3 onto the tabletop as shown so the Leg assembly is centered between the front and back edges of the tabletop and approximately 1/4” in from the outside edge of the tabletop. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 6 D. Make a pencil mark in the center of each of the two middle holes in the O-Leg indicated by arrows. You can access the holes through the rectangular cutouts in the inside face of the O-Leg. IMPORTANT: Don’t drill through your tabletop top surface.
- Page 7 F. Tighten all of the screws that were started in this step. Take care when tightening not to strip the screws. 30” deep tabletop screw locations: 24” deep tabletop screw locations: © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 8 Step 6 - Position Center Rail A. Slide each Crossbar Rail (P3) left or right until the center indicator marks are approximately centered between the two Crossbar Ends (P2). Center indicator mark B. Insert four M8 x 8 Set Screws (H3) into each Crossbar End and tighten using the 4mm Allen Wrench.
-
Page 9: Step 8 - Install Accessories
Attach the tray to the tabletop using two #10 x 5/8” Wood Screws. Anchor Plates Various UPLIFT Desk accessories were designed to attach to the patented mounting points located along the sides of the Crossbar Ends (P2) on the frame. Some of these accessories require the use of the Anchor Plates. -
Page 10: Step 10 - Table Placement
Step 9 - Ensure All Screws are Tight IMPORTANT: With the table upside down, take a moment to confirm all frame screws are tight using the Allen Wrench and Phillips head screwdriver. This is an important step, and it is much easier to ensure the screws are tight before flipping the table upright. - Page 11 Be sure to hold the frame when lifting. D. If your table does not have casters installed, adjust the Leveling Glides as needed to level the table. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 12 Study this manual carefully. If this product is sold, please provide this manual to the buyer, installers, or support personnel operating the product. Copyright Notice: This manual is a component of this UPLIFT Desk product. This manual is a ©...
