EMG -B344 Series Installation Information

INSTALLATION INFORMATION

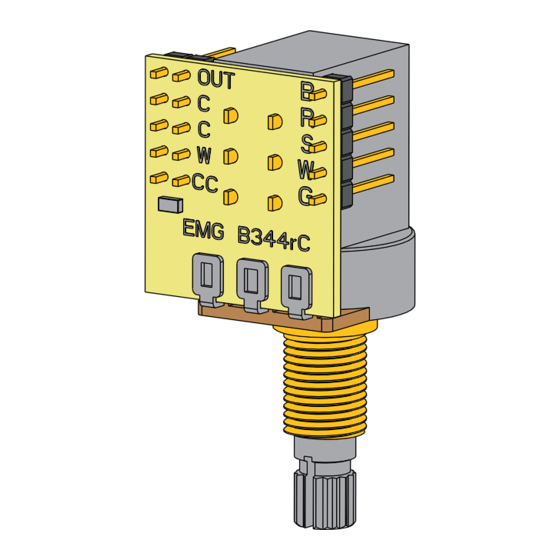

EMG MODEL: EMG-B344 SERIES/PARALLEL PUSH/PULL POT
FOR PASSIVE HUMBUCKING PICKUPS
GENERAL OPERATION:
The B344 Series/Parallel Push/Pull Pot is designed for use on Dual-Coil Humbucking Pickups.
The Push/Pull switch lets you choose from Series (Normal) wiring to Parallel wiring to get a single coil sound from your humbucking pickup.
The Pot portion of the control is 500K Ohm and can be used as either a volume control or a tone control for a pickup or as a master volume
or tone control.
All EMG Humbucking pickups feature a 5 wire Connection and have a solderless installation.
DOWN POSITION
"SERIES WIRING"
UP POSITION
"PARALLEL WIRING"
S1
WHT+
2
RED-
GRN-
5
BLK+
H2
OUT
© 2023 Copyright EMG INC. All Rights Reserved.
1.800
(45.7)
H4
H2
1 FROM HZ PICKUP
5
3 4
3
4 2
1
6
GND
1
2
PICKUP
INPUT
GREEN
WHITE
SHIELD
RED
H3
BLACK
H1
.886
(22.5)
H1
BLK+
COIL #1
RED-
SHIELD
WHT+
COIL #2
GRN-
2
VR1
.400
(10.1)
1.058
(26.9)
.856
(21.7)
H3
1
2
ALL
3
GROUND
4
H4
1
C
2
C
3
W
4
CC
C1
223
GND
