Summary of Contents for Knight Team Flip Table

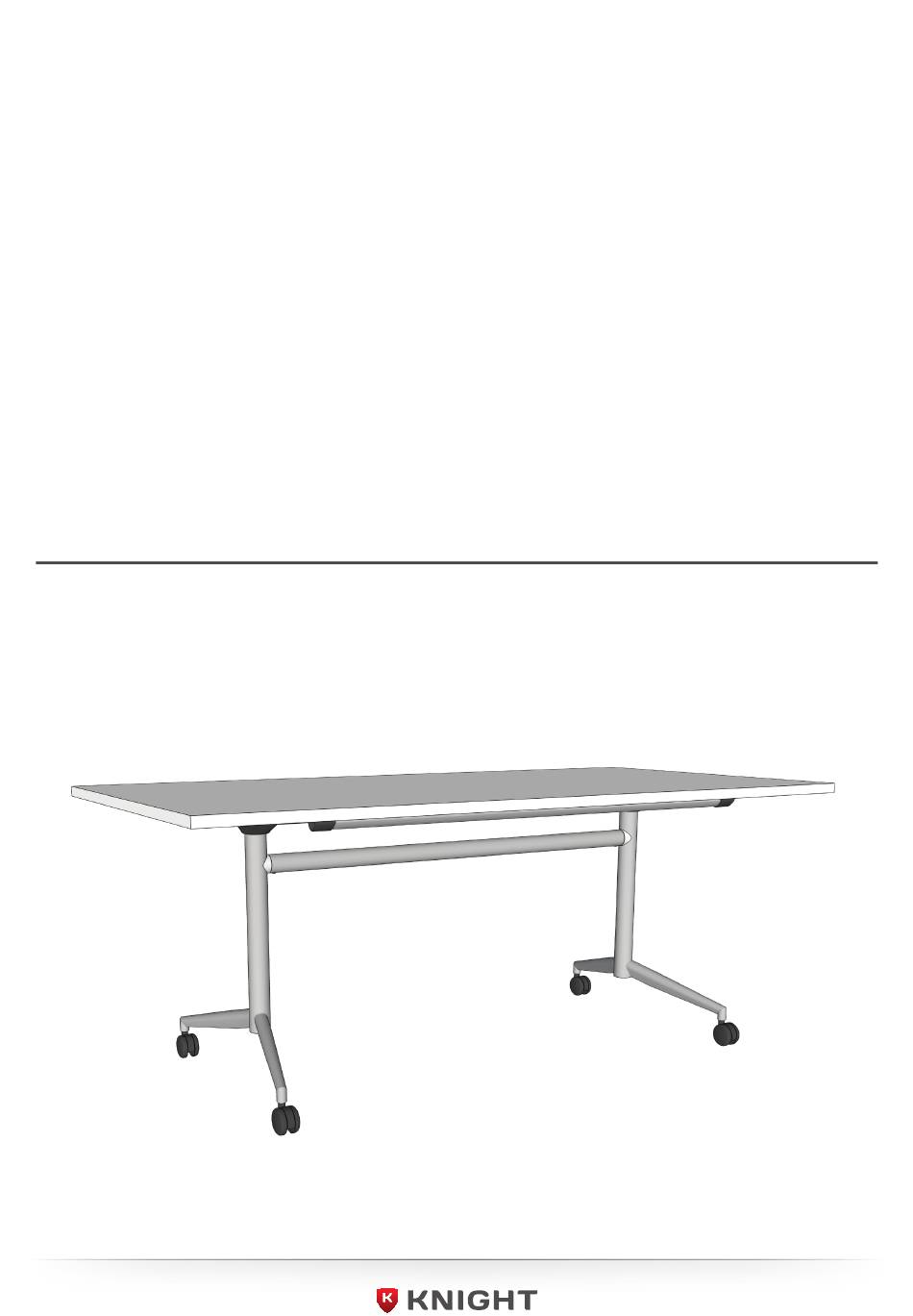

- Page 1 Team Flip Table Installation Guide Tools Required: Powered screwdriver.
- Page 2 Team Flip Table Page 2 Assembly Instructions Step 1 Step 2 Place the pull bar (a) and cross tube (b) in the Fit the pull bar to the top side of the mechanism correct location pictured below, slide the 2 end...
- Page 3 Team Flip Table Page 3 Assembly Instructions Drilling patterns for Team Flip Tables 170mm 2x 2mmØx12mm h 12x 2.5mmØx15mm h 138mm 138mm 25mm Table Length Width-700mm Width-800mm 1200-1600mm 1200-1600mm 1500-1900mm 1096 1500-1900mm 1096 1800-2200mm 1396 1800-2200mm 1396 Width-900mm 1200-1600mm 1500-1900mm...
