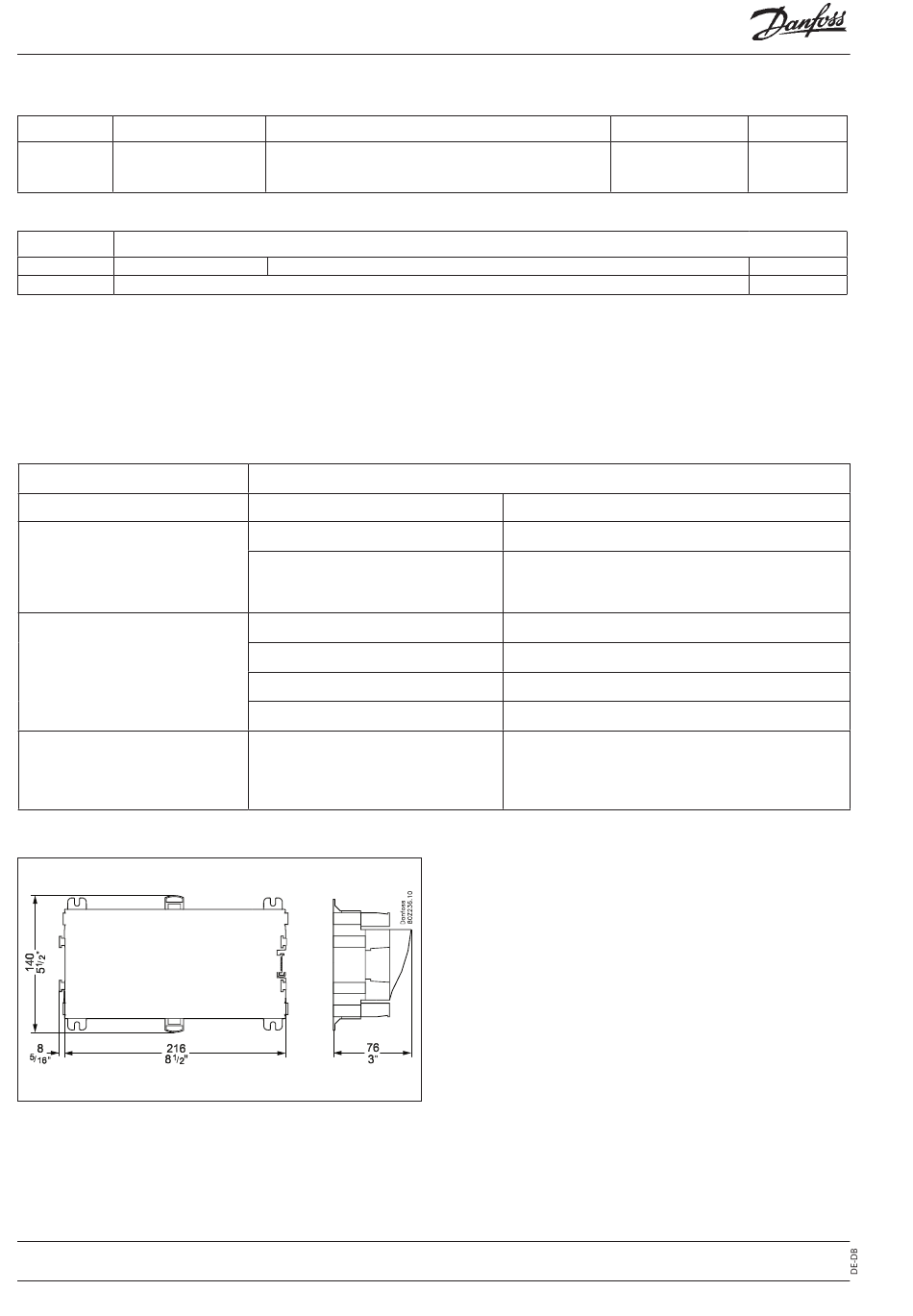

Ordering
Type Function
AK-PI 100 Protokol interface
Accessories Accessories Transformer module 230 V / 115 V to 24 V
AK-PS 075 18 VA
- RS 232 cable between AK-PI 100 and Woodley MDM / 4 way TPI card
Data
Supply voltage
Power consumption
Ambient environment
Enclosure
Approvals
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products
already on order provided that such alternations can be made without subsequential changes being necessary in specifications already agreed.
All trademarks in this material are property of the respecitve companies. Danfoss and Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
8
Intermediary link between System controller AK-SC 255 and
Woodley controllers. The unit makes is possible to change the
user interface from Woodley's S5 to Danfoss' AK-SC 255
Supply
24 V AC. +/- 20%
AK-PI 100
During transport
During operation
Material
Protection
Installation
Weight
EU low voltage directive and EMC require-
ments are complied with
Manual RS8FB102 © Danfoss 03-2008
Application
8 VA
-40 to 70°C
-20 to 55°C ,
0 to 95% RH (non condensing)
No shock influences / vibrations
PC / ABS
IP10 , VBG 4
Built in. On panel wall or DIN rail
Ca. 600 g
LVD tested to EN 60730
EMC tested
Immunity to: EN 61000-6-2
Emission to: EN 61000-6-3
Language Code no.
080Z8522
English, French,
080Z0053
080Z0263
AK-PI 100
