User Guide
Woodley Protokol interface

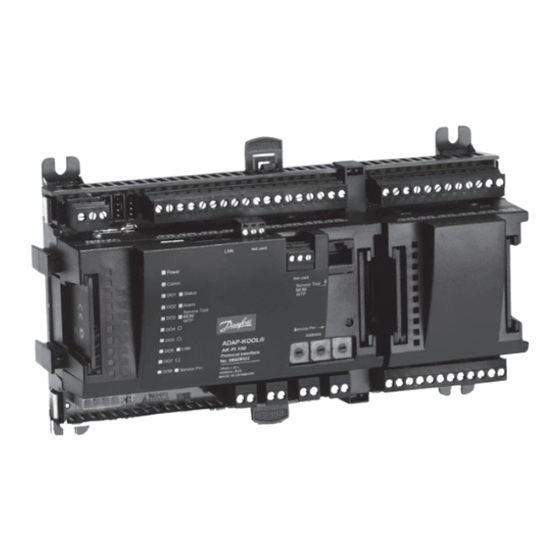

AK-PI 100
ADAP-KOOL® Refrigeration control systems

Advertisement

loading
Need help?

Need help?

Do you have a question about the AK-PI 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Danfoss AK-PI 100

Summary of Contents for Danfoss AK-PI 100

  • Page 1 User Guide Woodley Protokol interface AK-PI 100 ADAP-KOOL® Refrigeration control systems...
  • Page 2 In larger systems or if IP communication takes place from the sys- tem, the connection must be based on a router or a switch. If a router is used, the IP address of the AK-PI 100 may be dynamic, but the address of the AK-SC 255 must be static.
  • Page 3 The system controller cannot handle addresses above 199. WTP communication: Address options 1 to 199 (248) The AK-PI 100 has an auxiliary function that can shift a group of Address options 1 to 199 AK-SC 255: addresses, so that you do not need to change the address in each Max.

  • Page 4: Installation

    In the AK-PI 100, set IP addressing to either static or dynamic. - Choose static if the AK-SC 255 and AK-PI 100 are linked by a switch. Then configure the IP address (request an IP address from the IT officer of the department).
  • Page 5 Connect the units AK-SC 255: Attach the connector to the Ethernet connector. AK-PI 100: The connection to the AK-SC 255 (switch/router) must use the AK-PI 100: The connection to the Woodley unit must use the “LAN” connector. connector for the “Service tool”.
  • Page 6 • Change the settings. All controller types and software versions will require a description file. Select the relevant file. If the file is not listed, it must be uploaded to the AK-SC 255. Contact Danfoss. Manual RS8FB102 © Danfoss 03-2008 AK-PI 100...
  • Page 7 - Adjustment of a static IP address. • In “System setup” you can give the unit a name • You can change the IP setup Example of IP addresses Examples of controller addresses AK-PI 100 Manual RS8FB102 © Danfoss 03-2008...
  • Page 8 Emission to: EN 61000-6-3 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alternations can be made without subsequential changes being necessary in specifications already agreed.
