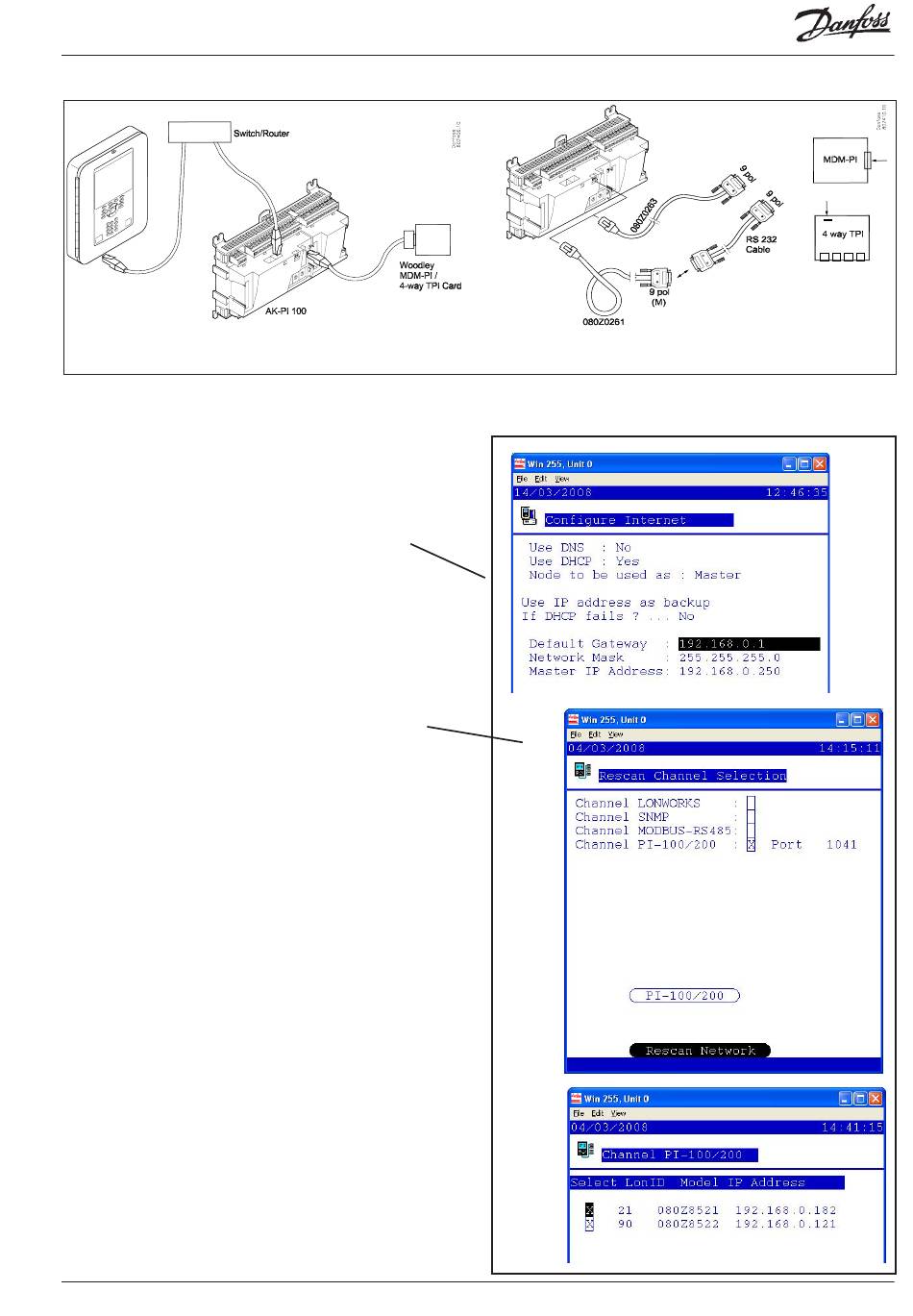

Connect the units
AK-SC 255: Attach the connector to the Ethernet connector.
AK-PI 100: The connection to the AK-SC 255 (switch/router) must use the
"LAN" connector.
AK-SC 255 settings
Define the IP setup
Switch to the displayed screen with:
Communications / Internet / Config
Set
• DHCP to Yes for Dynamic IP
If necessary
• Configure the mask
If necessary
• Configure the IP address
Scanning for IP addresses and Woodley units
Switch to the displayed screen with:
Communications / I/O Network / Rescan channels
• Select the "Channel PI-100/200" field
• Activate the "Rescan Network" function
• Click the "PI-100/200" button to switch to the next screen
• Select the addresses to be contacted (addresses 21 and 90
are shown here)
• Go back to the previous screen
• Activate the "Rescan Network" function
AK-PI 100 Manual RS8FB102 © Danfoss 03-2008
AK-PI 100: The connection to the Woodley unit must use the
connector for the "Service tool".
