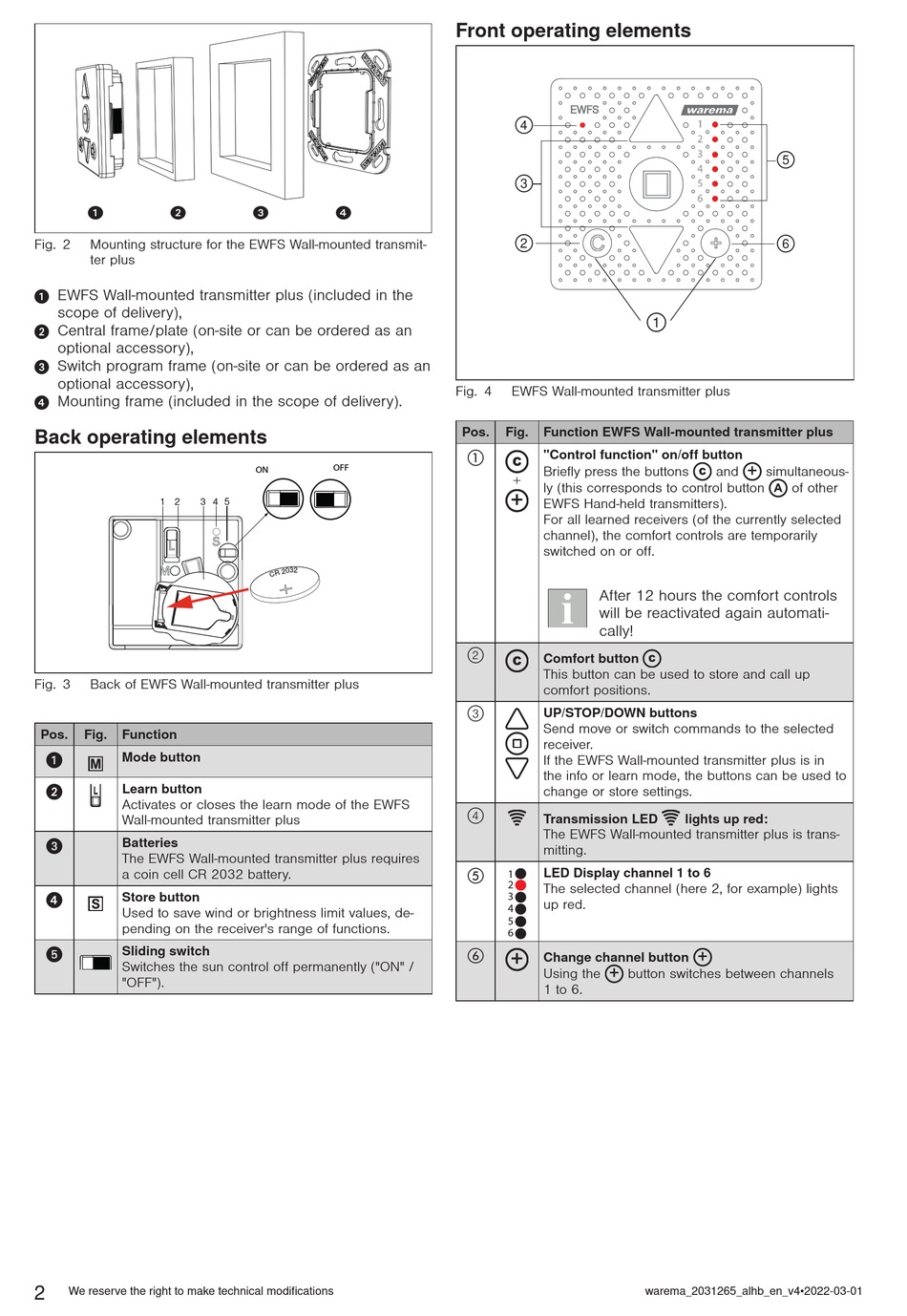

Fig. 2
Mounting structure for the EWFS Wall-mounted transmit-
ter plus
 E WFS Wall-mounted transmitter plus (included in the
scope of delivery),
 C entral frame/plate (on-site or can be ordered as an
optional accessory),
 S witch program frame (on-site or can be ordered as an
optional accessory),
 Mounting frame (included in the scope of delivery).
Back operating elements
1 2
3 4 5
Fig. 3
Back of EWFS Wall-mounted transmitter plus
Pos.
Fig.
Function
Mode button
Learn button
Activates or closes the learn mode of the EWFS
Wall-mounted transmitter plus
Batteries
The EWFS Wall-mounted transmitter plus requires
a coin cell CR 2032 battery.
Store button
Used to save wind or brightness limit values, de-
pending on the receiver's range of functions.
Sliding switch
5
Switches the sun control off permanently ("ON" /
"OFF").
2
We reserve the right to make technical modifications
OFF
ON
Front operating elements
EWFS
EWFS
Fig. 4
EWFS Wall-mounted transmitter plus
Pos.
Fig.
Function EWFS Wall-mounted transmitter plus
"Control function" on/off button
Briefly press the buttons
+
ly (this corresponds to control button
+
EWFS Hand-held transmitters).
For all learned receivers (of the currently selected
channel), the comfort controls are temporarily
switched on or off.
After 12 hours the comfort controls
will be reactivated again automati-
cally!
Comfort button
This button can be used to store and call up
comfort positions.
UP/STOP/DOWN buttons
Send move or switch commands to the selected
receiver.
If the EWFS Wall-mounted transmitter plus is in
the info or learn mode, the buttons can be used to
change or store settings.
Transmission LED
The EWFS Wall-mounted transmitter plus is trans-
mitting.
LED Display channel 1 to 6
1
2
The selected channel (here 2, for example) lights
3
up red.
4
5
6
+
Change channel button
+
Using the
1 to 6.
+
and
simultaneous-
of other
lights up red:
+
button switches between channels
warema_2031265_alhb_en_v4•2022-03-01
