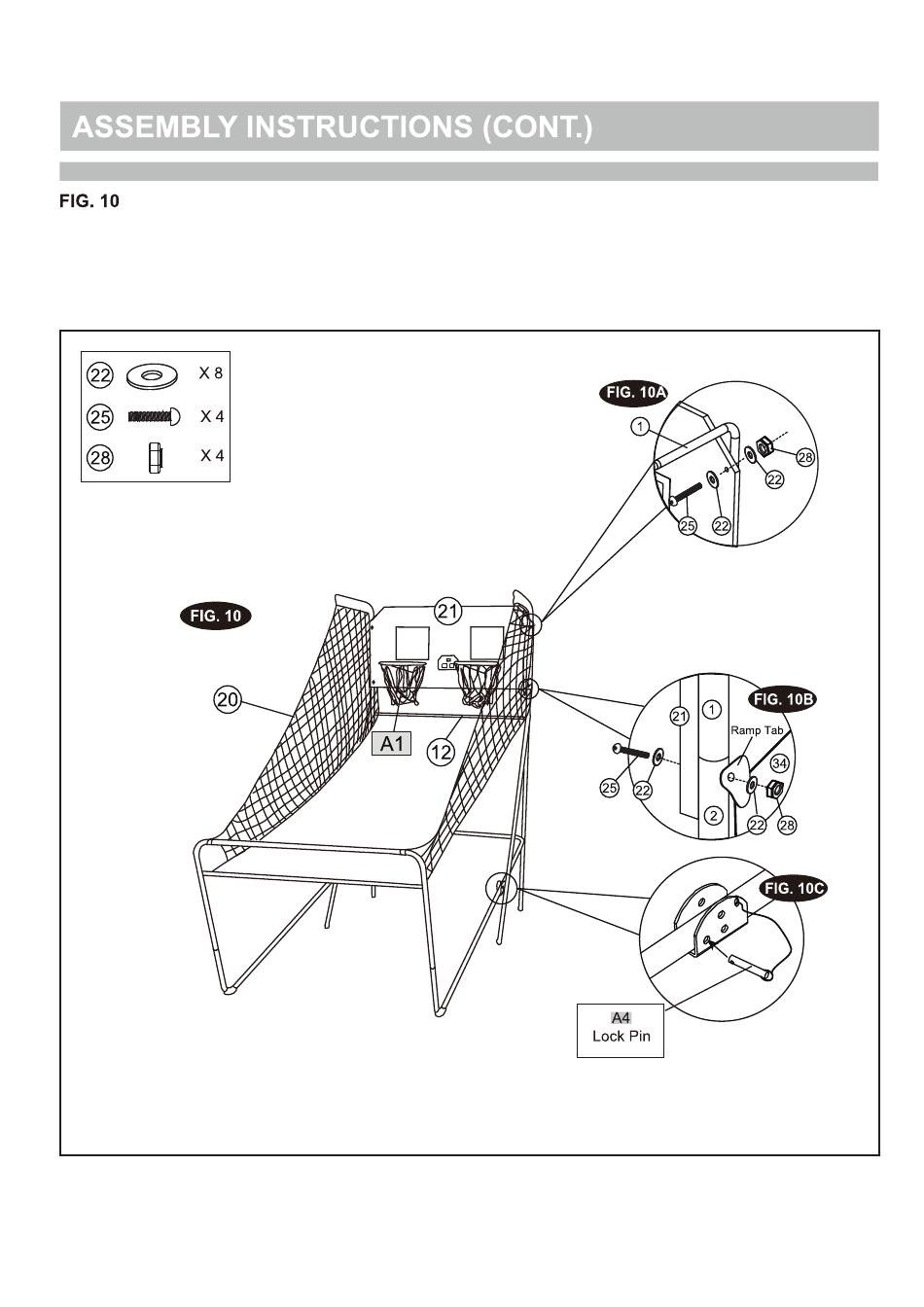

15. Attach the backboard (21) onto the top of tube 1 using the bolts (25), washers (22) and nuts (28)
as shown in FIG. 10A. Attach the ramp tabs of the ball return net (20) to the holes on the bottom of
the blackboard using bolts (25), washers (22) and nuts (28) as shown in FIG. 10B. NOTE: This task
requires Two persons.
16. Connect and insert the lock pins (A4) into tubes 5 and 6 as shown in FIG. 10C.
