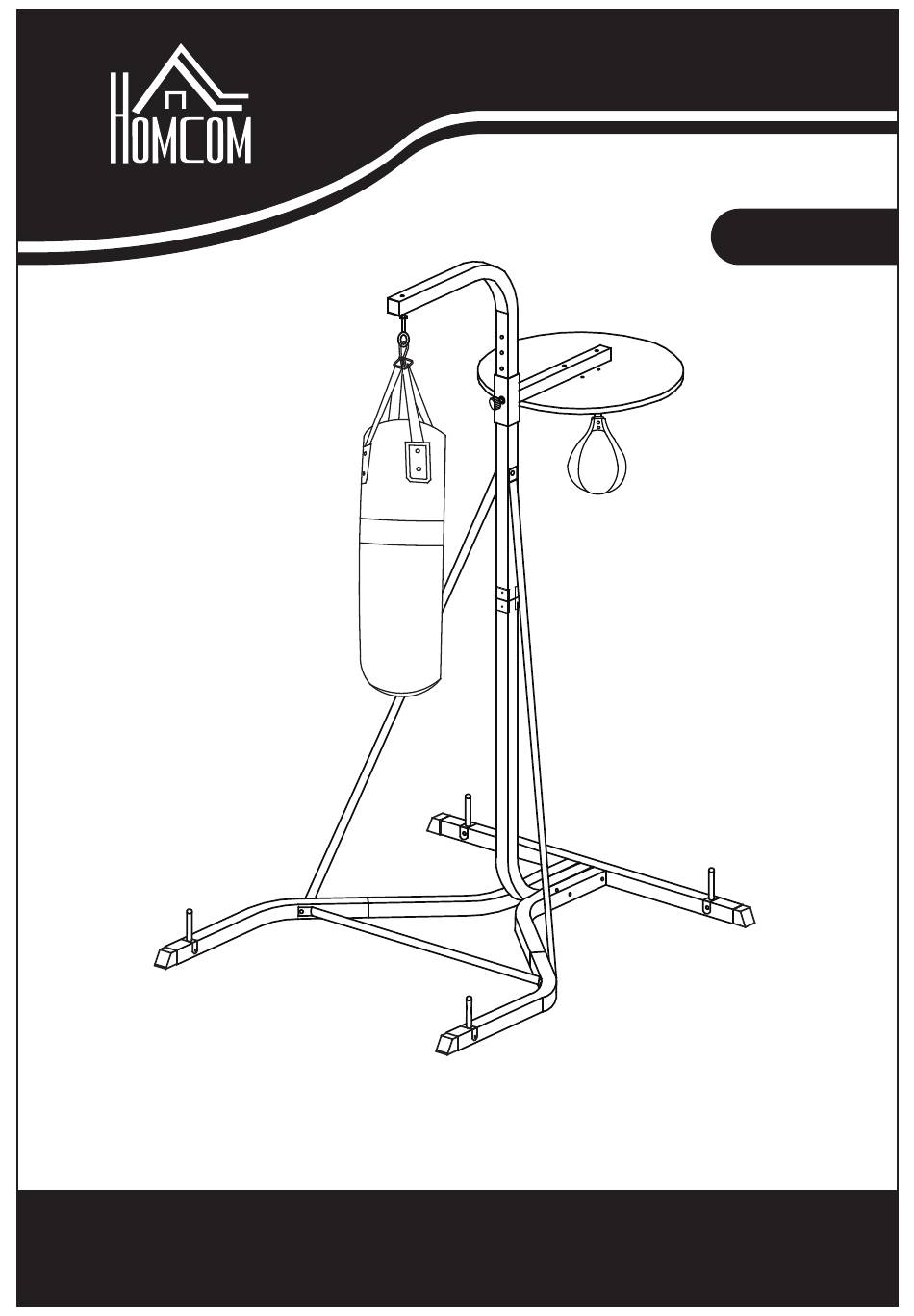

- Page 1 INadc007V02 UK A91-073 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTION...
-
Page 2: Important Safety Information
Important Safety Information Please keep this manual in a safe place for reference. 1. It is important to read this entire manual before assembling and using the equipment. Safe and efficient use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 3: Exploded-View Assembly Drawing
EXPLODED-VIEW ASSEMBLY DRAWING... - Page 4 DESCRIPTION Front Base Tube Back Base Tube Lower Stand Tube Base Pipe Weight Plate Tube Upper Stand Tube Adjustable Tube Support Tube(right) Hook Support Tube(left) Upper Brace Tube Left Upper Brace Tube Right Lower Brace Tube Connect Tube Foot Cap M10*150 Hex Bolt M10* 80 Hex Bolt M10*65 Hex Bolt...
- Page 5 DRAWING M10x150mm M10x80mm M10x65mm M10x60mm M6x40mm M10 thicker nylon nut M10 nut...
-
Page 6: Assembly Drawing
ASSEMBLY DRAWING Step 1 Assembly the base frame 1)Assemble the foot cap (13) to the front base tube(1) and back base tube (2). 2)Screw together the base pipe (4) and front base tube (1), secured with M10x60 hex bolt (17-2pc s ), M10 washer (20-4pcs) and M10 Nylon Nut (22- 2pcs). - Page 7 Step 2 Assembly of the stand tube 1)Attach the speedball hook (26) and platform (25) to the adjustable tube (7), secured with M 10x 80 bolt (15-2pcs), M6x 40 bolt (18-4pcs), M10 washer (20-4pcs), M6 washer M10 nylon nut (22-2pcs), (21-4pcs) and M6 nylon nut (24-4pcs).
-
Page 8: Exercise Instructions
3)Screw together the upper stand tube (6) to lower stand tube (3), secured with support plate(28-2pcs),hex bolt M10x65 hex bolt (16-2pcs),M10 washer (20-4pcs) and M10 nylon nut (22-2pcs). 4)Attach the upper brace tube left (9) and upper brace tube right (10) to lower brace tube (12).
