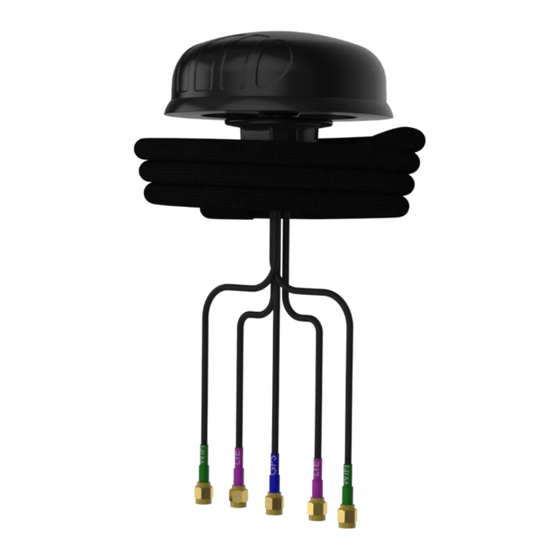

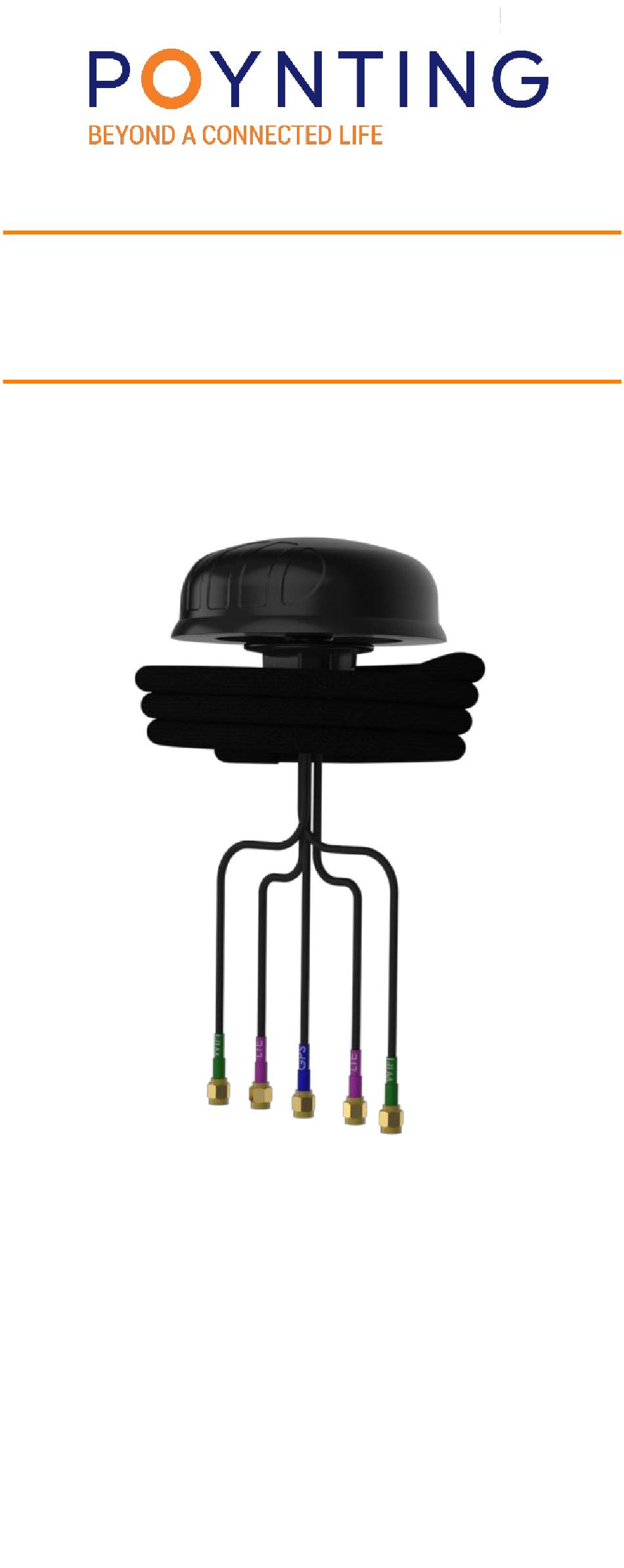

- Page 1 PUCK SERIES User Guide...
- Page 2 Stay Updated: Access the Latest Installation Resources The information in this manual is intended to provide general guidelines for installing your POYNTING antenna. For the most up-to-date and comprehensive mounting and installation instructions, as well as the latest product information,...
-
Page 3: Packing Checklist
Packing Check List Item Description Quantity *PUCK-V2 Antenna Only M4 x 10mm Flat Head Stainless Steel Screws Attached to the antenna 35mm Threaded Spigot Attached to the antenna 75mm Threaded Spigot Magnetic Base Pole/Wall Mount Bracket Plastic Nut Attached to the antenna Adhesive Foam Seal Grip Extenders... - Page 4 Appearance of components Antenna Unit M4 x 10mm Flat head Stainless Steel Screws 35mm Threaded spigot 75mm Threaded female spigot Magnetic Base...
- Page 5 Pole/ Wall Mount Bracket Plastic Nut Adhesive Foam Seal *SMA(F) to RP-SMA(M) Adapters and Grip Extenders Base Seal and Spigot Seal *Antenna with Wi-Fi only...
-
Page 6: Tools Required
Tools Required Drills (Pilot drill (3mm) and Hole saw (22mm) or step drill (4-22mm)) Impact Drilling Machine Hammer Safety Goggles 27mm Spanner/Wrench... - Page 7 Masking Tape Centre Punch Drilling Template (Available on www.poynting.tech/downloads)
- Page 8 Antenna Configuration 1 Threaded Spigot Mounting Use the Drill template below or download the 1:1 drill template from http://www.poynting.tech/downloads. Choose the mounting location carefully and a • position at least 50cm from heat sources, with a clear line of sight to the sky.
- Page 9 Note: Be careful not to overtighten the nut. Sealant inside surface Sealant outside surface Important Information Spigot Mount Antenna Installation To ensure optimal functionality and protect your vehicle from potential water damage, please follow these guidelines for spigot mount installations of your POYNTING antenna:...
- Page 10 Sealant is Key: Use a high-quality waterproof kitting substance like SIKA Dekalin specifically chosen for your application. Apply the sealant meticulously around the spigot where it enters your vehicle as while as on the inside and outside surfaces of the base seal for extra ingress protection in harsh environments.
- Page 11 Exploded View PUCK Antenna PUCK Base Seal Mounting Surface Spigot Seal Plastic...
- Page 12 Antenna Configuration 2 Adhesive Mounting Clean the entire surface on which you plan to • stick the antenna. Remove the nut and short spigot from the • antenna. Secure the magnetic base to the antenna with • flat head screws. Peel off the wax paper layer and stick the foam •...
- Page 13 Antenna Configuration 4 Pole Mounting Lay the antenna out at the installation site. • Attach the bracket onto on to the base of the • antenna using four Flat head screws. Secure the cable tie or hose clamp around the •...
- Page 14 Horizontal Pole Mounting Internal Pole Mount External Pole Mount Antenna Configuration 5 Wall Mounting Select a suitable place for mounting the • antenna. Using the wall mount bracket as a guide, mark • two points to drill on the wall. Use a masonry drill bit to drill a cable entry hole •...
-
Page 15: Cable Routing
Antenna Mounting Precautions • Place the antenna at the highest point of the vessel ensure that there obstructions surrounding the antenna. • to avoid communication interference, ensure that the antenna is placed at least 0.5m away from other antennas and metal objects. •... - Page 16 When handling the antenna cables, you must follow these basic rules: • Never pull on the cable connectors; pull only on the cable. • Never run cables in a manner that interferes with the driver's ability to safely operate the vehicle.
- Page 17 4. Make sure that any loose-fitting jewelry or clothing is secured and tie back long hair as they can get caught in moving parts during installation. 5. If the antenna assembly starts to fall, get away from it and let it fall to avoid harming yourself.
- Page 18 Unit 4, N1 Industrial Park 81677 München Suite 104, Mansfield, Landmarks Ave Germany TX 76063 Samrand, 0157 Tel: +49 89 2080 265 38 Tel: +1 817 533-8130 South Africa Mob.: +49 176 529 733 50 sales-us@poynting.tech Tel: +27 12 657 0050 sales-europe@poynting.tech info@poynting.tech...
