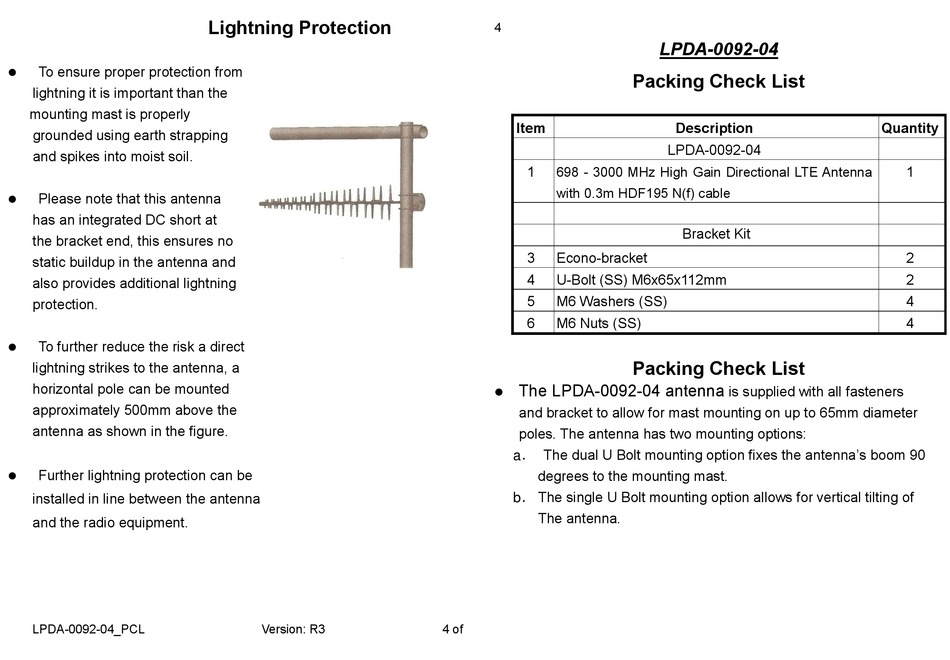

Poynting LPDA-0092-04 Quick Start Manual

To ensure proper protection from
⚫
lightning it is important than the
mounting mast is properly
grounded using earth strapping
and spikes into moist soil.
Please note that this antenna
⚫
has an integrated DC short at
the bracket end, this ensures no
static buildup in the antenna and
also provides additional lightning
protection.
To further reduce the risk a direct
⚫
lightning strikes to the antenna, a
horizontal pole can be mounted
approximately 500mm above the
antenna as shown in the figure.
Further lightning protection can be
⚫
installed in line between the antenna
and the radio equipment.
LPDA-0092-04_PCL
Lightning Protection
Version: R3
4
Item
1 698 - 3000 MHz High Gain Directional LTE Antenna
with 0.3m HDF195 N(f) cable
3 Econo-bracket
4 U-Bolt (SS) M6x65x112mm
5 M6 Washers (SS)
6 M6 Nuts (SS)

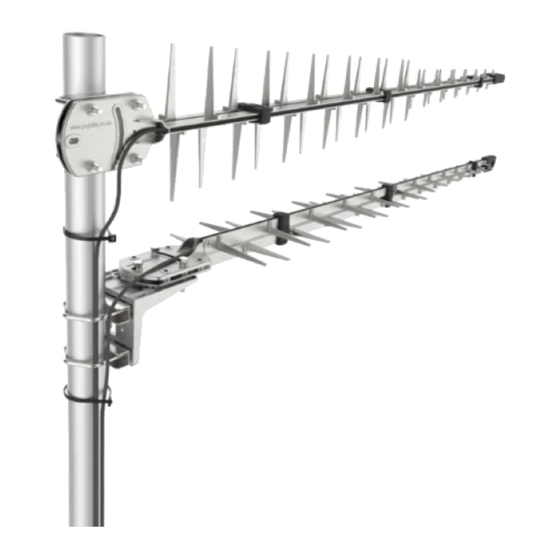

The LPDA-0092-04 antenna
⚫
and bracket to allow for mast mounting on up to 65mm diameter
poles. The antenna has two mounting options:
a． The dual U Bolt mounting option fixes the antenna's boom 90
degrees to the mounting mast.
b． The single U Bolt mounting option allows for vertical tilting of
The antenna.
4 of
LPDA-0092-04
Packing Check List
Description
LPDA-0092-04
Bracket Kit
Packing Check List
is supplied with all fasteners
Quantity
1
2
2
4
4
