Summary of Contents for Pulsar PulsarGuard 201 Series

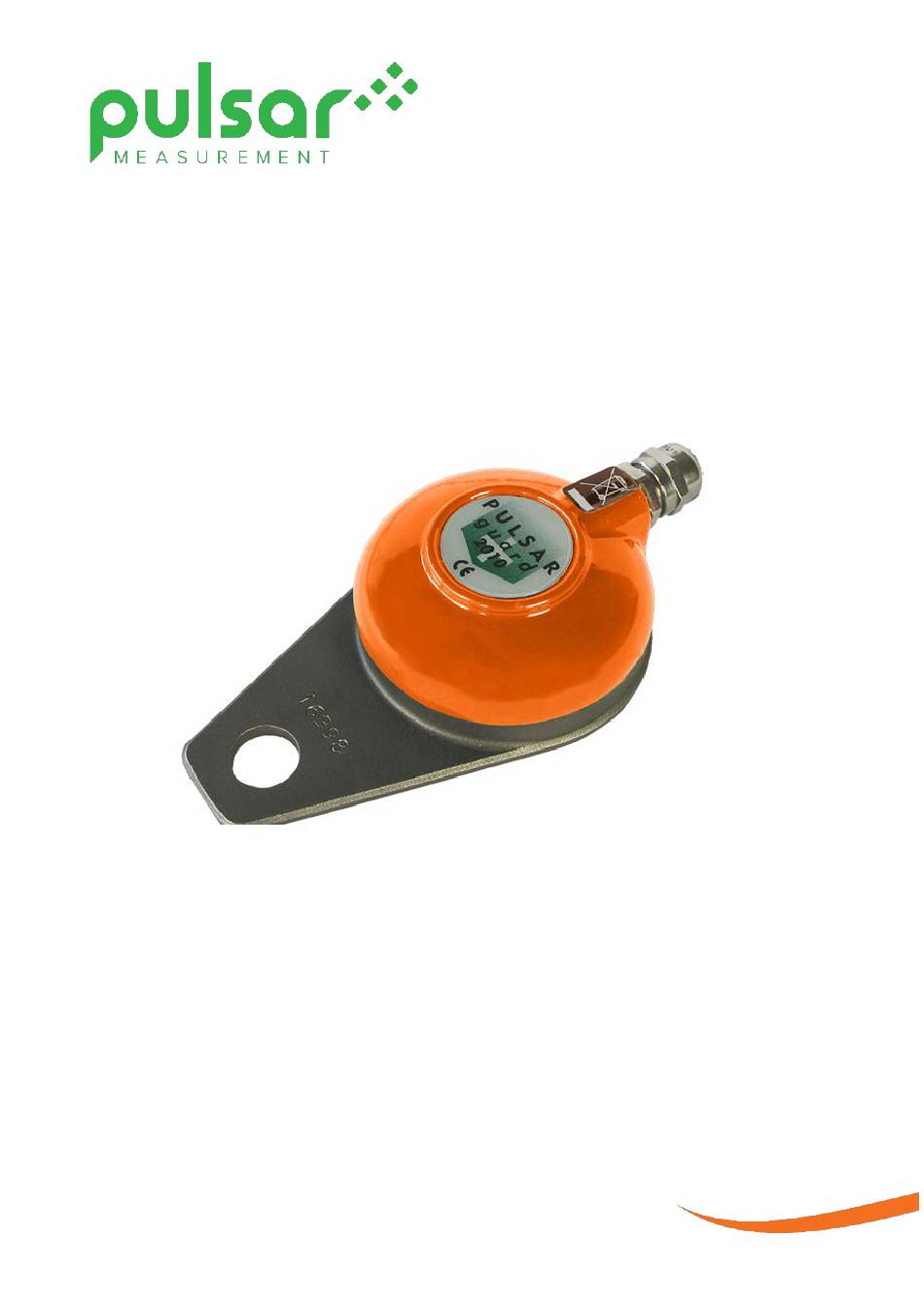

  • Page 1 PulsarGuard 201x Series Instruction Manual...
  • Page 2 Pulsar Measurement. WARRANTY AND LIABILITY Pulsar Measurement guarantees for a period of 2 years from the date of delivery that it will either exchange or repair any part of this product returned to Pulsar Measurement if it is found to be defective in material or workmanship, subject to the defect not being due to unfair wear and tear, misuse, modification or alteration, accident, misapplication, or negligence.
  • Page 3: Table Of Contents

    PULSAR MEASUREMENT CONTENTS Chapter 1: Start Here… ......................4 About this Manual ....................... 4 About the PulsarGuard 201x Series ................5 Functional Description ....................... 5 Benefits ............................. 6 There are many benefits to the PulsarGuard series of sensors: ......6 Product Specification ......................
  • Page 4: Chapter 1: Start Here

    There are various parts of the manual that offer additional help or information as shown. Tips TIP: Loo k for this icon throughout your Pulsar Measurement manual to find helpful information and answers to frequently asked questions . Additional Information...
  • Page 5: About The Pulsarguard 201X Series

    PULSAR MEASUREMENT About the PulsarGuard 201x Series Functional Description The 201x series sensor uses state of the art soundwave technology to detect changes in structure borne acoustic emissions from equipment and materials in motion. The sensor ‘listens’ to the high frequency sound generated by impacts, cavitation and friction within a system.
  • Page 6: Benefits

    PULSARGUARD 201X SERIES INSTRUCTION MANUAL Benefits There are many benefits to the PulsarGuard series of sensors: Non contacting. • Robust design. • Prevent Unplanned Downtime • Detects Blockages, Pump Cavitation, Bearing Failures and Valve • Leakage early. Reduction of Costly Production Stoppages. •...
  • Page 7: Product Specification

    2011Z or G (Hazardous area versions) 24 to 26V via suitable 28V DC galvanic or Zener barriers Current Consumption Typically, 15mA Pulsar Measurement operates a policy of constant development and improvement and reserve the right to amend technical details, as necessary.
  • Page 8: Product Construction

    PULSARGUARD 201X SERIES INSTRUCTION MANUAL Product Construction Rugged two-part housing in cast Type 316 stainless steel. • Cap casting is polyester powder coated orange. On older versions • of sensors, the standard PulsarGuard coating was green and 2011 was light blue. Neoprene O-ring (Viton in PulsarGuard 2010HT).
  • Page 9: Eu Certificate Of Conformity

    PULSAR MEASUREMENT EU Certificate of Conformity...
  • Page 10: Product Range

    PULSARGUARD 201X SERIES INSTRUCTION MANUAL Product Range There are different types of PulsarGuard 201x sensors, to suit a variety of applications: PRODUCT NAME DETAILS Standard sensor. Temp Range: -40 °C to +85 °C (-40 2010 °F to +185 °F). High Temperature environment sensor. Temp Range: 2015 -40 °C to +125 °C (-40 °F to +257 °F).
  • Page 11: Approvals

    PULSAR MEASUREMENT Approvals • CE approval on all versions PulsarGuard 201x series sensors (Certificate of Conformity available on request). • PulsarGuard 201x series sensor housing rated to IP68 / NEMA 4. • ATEX Intrinsically safe certificates held for PulsarGuard 2011 sensors EEx ia IIC T6 Tamb -20°C to 40°C or...
  • Page 12: Chapter 2 Installation

    If there is any shortage or obvious shipping damage to the equipment, report it immediately to Pulsar Process Measurement Limited. Sensor positioning It is important that the sensor is sited correctly for each application. The sensor must be installed near to where the acoustic energy is being generated.
  • Page 13: Power Supply Requirements

    PULSAR MEASUREMENT If you are looking for particles in a liquid or solids travelling in a pipe, then fit the transducer near a bend on the side of the pipe where the impact of material against the pipe will occur.
  • Page 14: Wiring Diagram

    PULSARGUARD 201X SERIES INSTRUCTION MANUAL Wiring Diagram Standard and IS Versions: Brown: Power in (24V DC nominal) Green: 0V (Ground) White: Voltage Output (0–10V DC) Yellow: Signal Ground Yellow/Green: Cable Screen Hi Temp Version: Power in (24V DC nominal) 0V (Ground) Voltage Output (0–10V DC) Signal Ground Yellow/Green:...
  • Page 15: Hazardous Area Installation Instructions

    PULSAR MEASUREMENT Hazardous Area Installation Instructions (Reference European ATEX Directive 2014/34/EU, Annex II, 1.0.6.) The following instructions apply to equipment covered by certificate number Sira 04ATEX2121X: 1. The equipment may be used with flammable gases and vapours with apparatus groups IIC, IIB, and IIA with temperature classes; T1, T2, T3, T4 maximum ambient temperature range -20°C to +92°C, T5...
  • Page 16 PULSARGUARD 201X SERIES INSTRUCTION MANUAL Because non-conductive plastic materials are used on the surface of the equipment (i.e. the label is >4cm² in area), under certain extreme circumstances, these non-metallic parts may generate an ignition capable level of electrostatic charge. Therefore, when it is used in applications that specifically require group II, category 1 equipment, the equipment shall not be installed in a location where the external conditions are conducive to the build-up of electrostatic charge on...
  • Page 17: Hazardous Area Installation

    PULSAR MEASUREMENT Hazardous Area Installation BARRIER PARAMETERS SENSOR LABELLING Power Supply Signal Supply ZONE 0: CERT No. Uo = 28V Uo = 18V EEX ia I/IIC T6 (Tamb = -20°C to +40°C) Io = 93.3mA Io = 15.3mA EEX ia I/IIC T5 (Tamb = -20°C to +75°C) Po = 0.635 W...
  • Page 18: Chapter 3 Disposal

    PULSARGUARD 201X SERIES INSTRUCTION MANUAL CHAPTER 3 DISPOSAL Incorrect disposal can cause adverse effects to the environment. Dispose of the device components and packaging material in accordance with regional environmental regulations including regulations for electrical \ electronic products. Transducers Remove power, disconnect the Transducer, cut off the electrical cable and dispose of cable and Transducer in accordance with regional environmental regulations for electrical \ electronic products.
  • Page 19: Notes

    PULSAR MEASUREMENT NOTES...
  • Page 20 S U P P O R T @ P U L S A R M E A S U R E M E N T . C O M Copyright © 2020 Pulsar Measurement Ltd. Registered Address: 1 Chamberlain Square CS, Birmingham B3 3AX Registered No.: 3345604 England &...
