Remote Control - Qtx Tri-PAR User Manual

Remote control:

The Tri-PAR is supplied with an I.R. remote control for quick access to most of the basic functions of the
unit. This has a maximum range of approximately 4-5m and must be aimed towards the front of the unit.

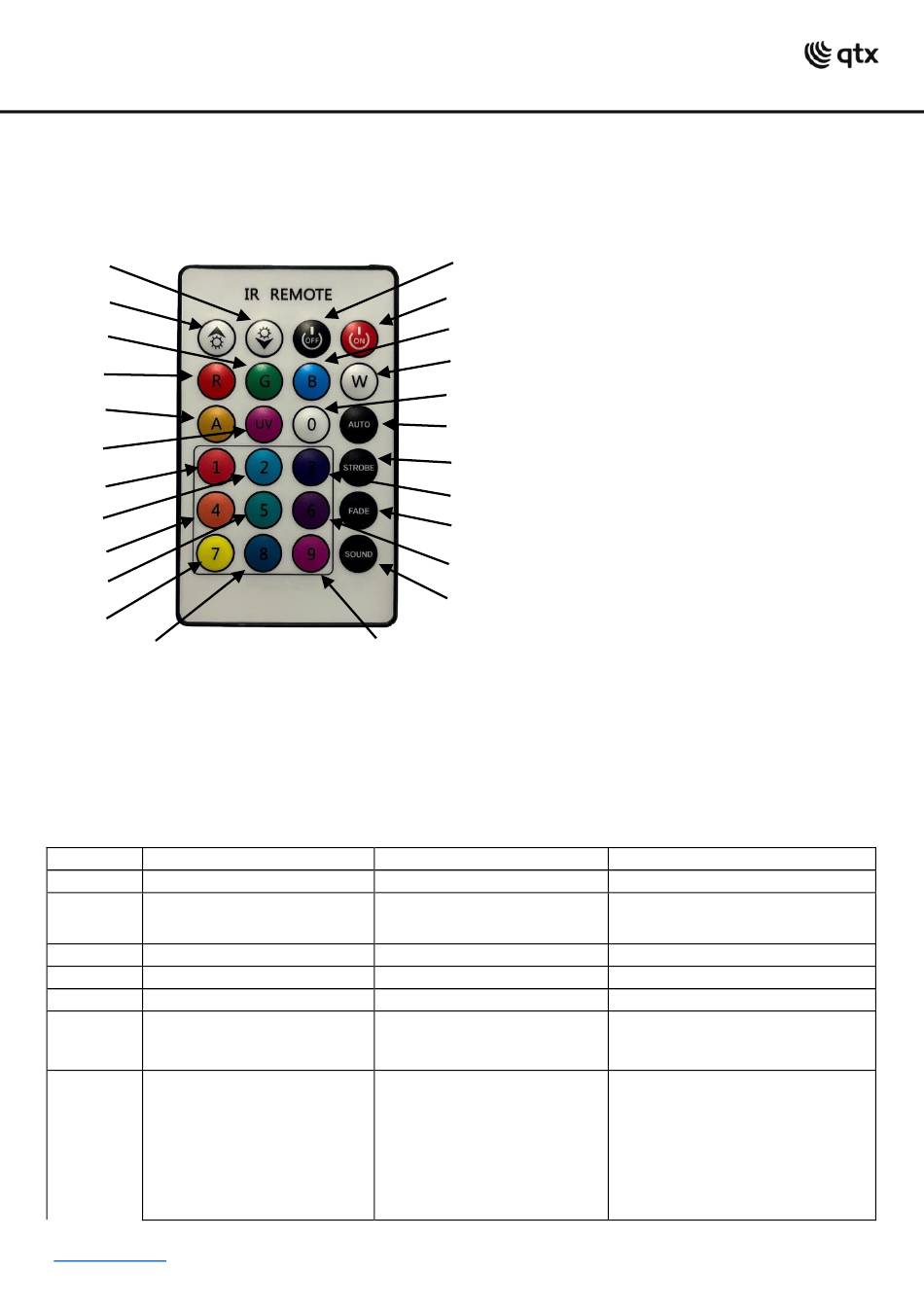

Controls and functions are listed on the diagram below:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
DMX mode:
The Tri-PAR can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on
the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping
through the DMX out on the unit. To enter DMX mode, select A001 from the menu and confirm the correct
start address by using the "UP" and "DOWN" buttons and "ENTER" to confirm.
This unit has 4, 6 or 8 DMX channels as indicated in the table below:
Channel 4 Channel Mode
CH1 1-255 red dimmer
CH2 1-255 green dimmer
CH3 1-255 blue dimmer
CH4 1-255 white dimmer
CH5
CH6
CH7
www.avsl.com
1.
13.
2.
3.
14.
4.
5.
15.
6.
16. 7.
8.
17.
9.
10.
18.
11.
12.
19.
13.
14.
20.
15.
16.
21.
17.
22.
18.
19.
23. 20.
21.
22.
24.
23.
24.
6 Channel Mode
1-255 total dimmer
1-10 off, 11-255 strobe
(slow to fast）
1-255 red dimmer
1-255 green dimmer
1-255 blue dimmer
1-255 white dimmer
Dimmer/speed increase
Dimmer/speed decrease
Green static colour
Red static colour
No function
No function
Static colour mix 1
Static colour mix 2
Static colour mix 4
Static colour mix 5
Static colour mix 7
Static colour mix 8
Power off
Power on
Blue static colour
White static colour
DMX mode
Auto mode 1 (colour jump)
Strobe mode
Static colour mix 3
Auto mode 2 (colour fade)
Static colour mix 6
Sound mode
Static colour mix 9
8 Channel Mode
1-255 total dimmer
1-255 red dimmer
1-255 green dimmer
1-255 blue dimmer
1-255 white dimmer
1-10 off ，11-255 strobe (slow
to fast）
1-10 off
11-50 color mix mode (use
Ch8 for variations)
51-100 color jump mode
101-150 gradual change mode
151-200 mutation pattern
201-220 Color jump sound
154.047UK User Manual
