FasTest 60 Series Operating Instructions

OPERATING INSTRUCTIONS / MAIN SEAL REPLACEMENT
60 & 70 Series Connectors

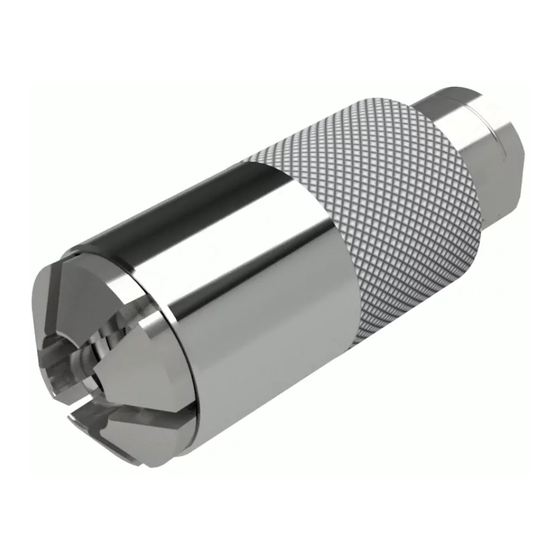

DESCRIPTION: Sleeve Activated Connectors for Sealing Male
Threads and Formed Tube Ends.
60 Series for
Male Threads
Please thoroughly read the instructions prior to operating the connector. This
connector is designed to provide a safe, reliable leak-tight seal and
connection when properly maintained and operated.
The connector is designed to mate with a specific application. Verify the
application prior to the introduction of pressurized media. Use only in a safe
environment.
Connectors are NOT designed for permanent connections and are for
temporary connections only.
•Installation
•Operation
•Main Seal Replacement
•Connector Maintenance
•Safety Warnings - Guidelines
DO NOT EXCEED pressure rating as marked on connector or corresponding literature.
Before using, verify that this pressure rating is within your working pressures.
70 Series for
Formed Tubes
INSTALLATION:
1. Connect media hose/fitting to the termination port on connector.
a. Pipe tape and or thread sealant is recommended.
OPERATION:
1. Slide/pull sleeve manually backwards, this will allow collets/jaws to open.

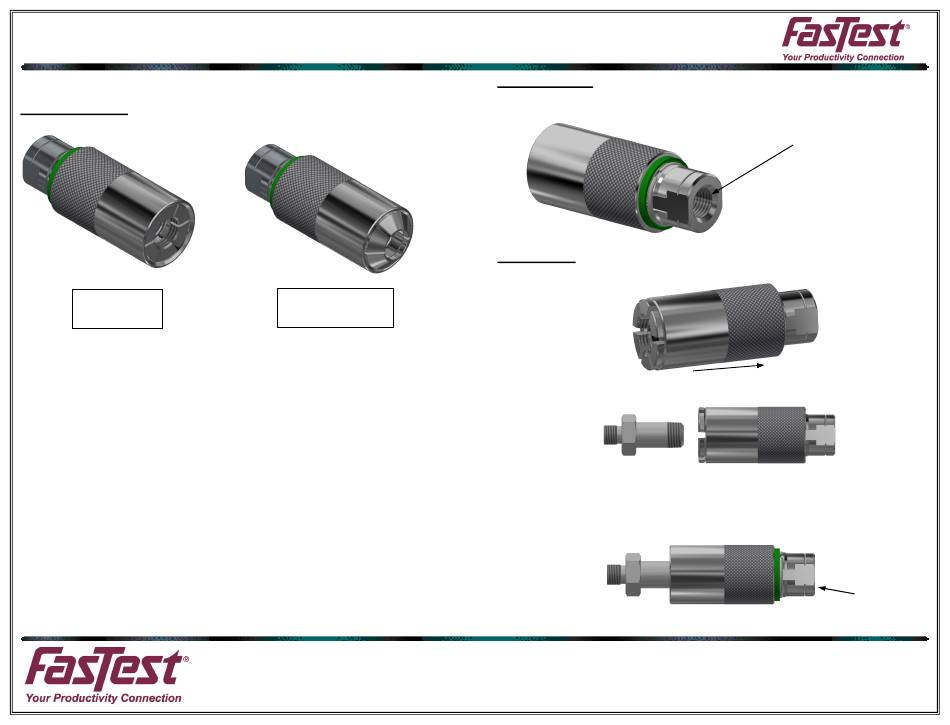

TEST PIECE
EXAMPLE
2. Insert male end of the component to be tested into collets/jaws and push connector onto
test piece.
a. NOTE: CONNECTOR OPERATES BEST IF YOUR HAND ISN'T ON
SLEEVE, HOLD THE BODY AND TERMINATION HOSE AS YOU
CONNECT.
TERMINATION
PORT
SLEEVE BACK
BODY
www.fastestinc.com
Roseville, MN
Toll Free at 1-800-444-2373
Fax 651-645-7390
WP033 Rev D 5/5/2021
