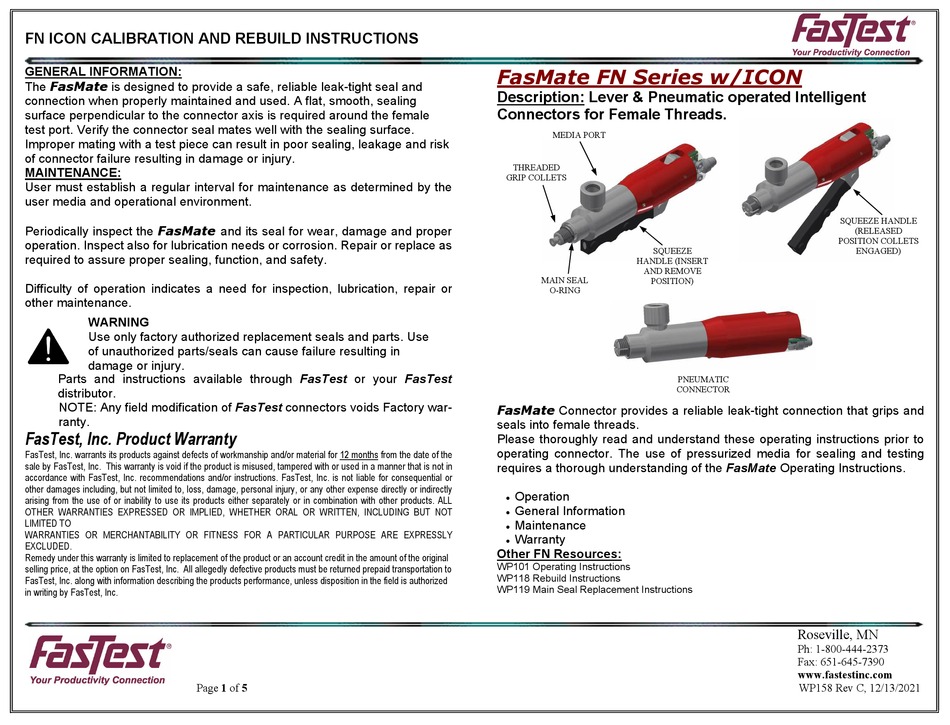

FasTest FN Series Instructions

FN ICON CALIBRATION AND REBUILD INSTRUCTIONS
GENERAL INFORMATION:
The FasMate is designed to provide a safe, reliable leak-tight seal and
connection when properly maintained and used. A flat, smooth, sealing
surface perpendicular to the connector axis is required around the female
test port. Verify the connector seal mates well with the sealing surface.
Improper mating with a test piece can result in poor sealing, leakage and risk
of connector failure resulting in damage or injury.
MAINTENANCE:
User must establish a regular interval for maintenance as determined by the
user media and operational environment.
Periodically inspect the FasMate and its seal for wear, damage and proper
operation. Inspect also for lubrication needs or corrosion. Repair or replace as
required to assure proper sealing, function, and safety.
Difficulty of operation indicates a need for inspection, lubrication, repair or
other maintenance.
WARNING
Use only factory authorized replacement seals and parts. Use
of unauthorized parts/seals can cause failure resulting in
damage or injury.
Parts and instructions available through FasTest or your FasTest
distributor.
NOTE: Any field modification of FasTest connectors voids Factory war-
ranty.
FasTest, Inc. Product Warranty
FasTest, Inc. warrants its products against defects of workmanship and/or material for 12 months from the date of the
sale by FasTest, Inc. This warranty is void if the product is misused, tampered with or used in a manner that is not in
accordance with FasTest, Inc. recommendations and/or instructions. FasTest, Inc. is not liable for consequential or
other damages including, but not limited to, loss, damage, personal injury, or any other expense directly or indirectly
arising from the use of or inability to use its products either separately or in combination with other products. ALL
OTHER WARRANTIES EXPRESSED OR IMPLIED, WHETHER ORAL OR WRITTEN, INCLUDING BUT NOT
LIMITED TO
WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY
EXCLUDED.
Remedy under this warranty is limited to replacement of the product or an account credit in the amount of the original
selling price, at the option on FasTest, Inc. All allegedly defective products must be returned prepaid transportation to
FasTest, Inc. along with information describing the products performance, unless disposition in the field is authorized
in writing by FasTest, Inc.
Page 1 of 5
FasMate FN Series w/ICON
Description: Lever & Pneumatic operated Intelligent
Connectors for Female Threads.
MEDIA PORT
THREADED
GRIP COLLETS
SQUEEZE
HANDLE (INSERT
AND REMOVE
MAIN SEAL
POSITION)
O-RING
FasMate Connector provides a reliable leak-tight connection that grips and
seals into female threads.
Please thoroughly read and understand these operating instructions prior to
operating connector. The use of pressurized media for sealing and testing
requires a thorough understanding of the FasMate Operating Instructions.
Operation

General Information

Maintenance

Warranty

Other FN Resources:
WP101 Operating Instructions
WP118 Rebuild Instructions
WP119 Main Seal Replacement Instructions
SQUEEZE HANDLE
(RELEASED
POSITION COLLETS
ENGAGED)
PNEUMATIC
CONNECTOR
Roseville, MN
Ph: 1-800-444-2373
Fax: 651-645-7390
www.fastestinc.com
WP158 Rev C, 12/13/2021
