FasTest TWISTMATE Series Operating Instructions

OPERATING INSTRUCTIONS/MAIN SEAL REPLACEMENT
Page 1 of 2

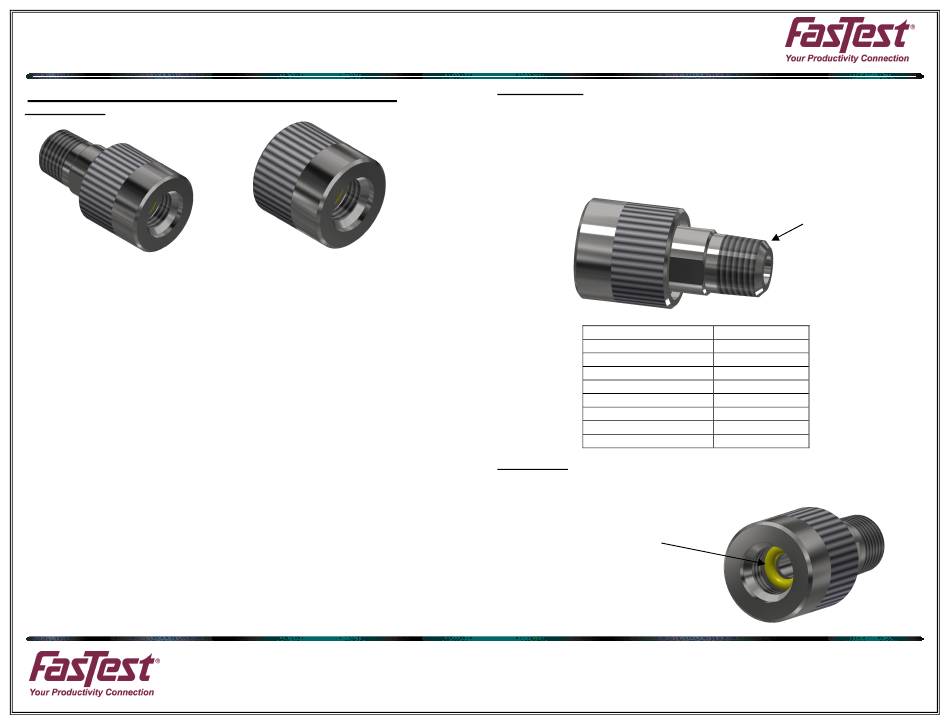

MET / METH TWISTMATE Series Connectors
DESCRIPTION: Manual Twist Connection Tool for Sealing External Threads.
MET FLOW VERSION
CONNECTOR
Please thoroughly read the instructions prior to operating the connector. The
Connectors are designed to provide a safe, reliable leak-tight seal and connection when properly
maintained and operated.
The connector is designed to mate with a specific application. Verify the application prior
•
to the introduction of pressure or processing. Use only in a safe environment. Safety chains
and guards are recommended for all applications.
Connectors are NOT designed for permanent connections and are for temporary
•
connections only. Inadvertent loosening and loss of media may result when used as a
permanent connection.
Connectors are not internally valved and will not prevent loss of media when disconnected.
•
DO NOT EXCEED pressure rating as marked on connector or corresponding literature.
•
Operating pressure rating based on tests using NPTF threads to (SAE J476a Dryseal
Specifications) of cold drawn steel. Material or thread deviations may reduce working
pressure and should be verified by test.
Installation
•
Operation
•
Main Seal Replacement
•
Connector Maintenance
•
Safety Warnings - Guidelines
•
MET CAP VERSION
CONNECTOR
INSTALLATION:
1. This applies to the flow through version only.
2. CAP STYLE CONNECTORS DO NOT REQUIRE ANY INSTALLATION,
THEY ARE SIMPLY A CAP.
3. Connect media hose/fitting to the termination end (most MET's are male
some are female) on connector.
a. Pipe tape and or thread sealant is recommended.
b. See chart below for termination torque ratings.
Termination Port Size
1/8 NPT
1/4 NPT
3/8 NPT
1/2 NPT
3/4 NPT
1 NPT
1-1/4 NPT
1-1/2 NPT
OPERATION:
1. Thread Twistmate connector finger-tight onto test piece until main seal
contacts test piece. This applies to both versions.
2. DO NOT WRENCH TIGHTEN!!!
MAIN SEAL INSIDE
CONNECTOR
TERMINATION
CONNECTION (M)
Torque lbs-ft
12
21
28
35
46
90
150
200
www.fastestinc.com
Roseville, MN
Ph 1-800-444-2373
Fax 651-645-7390
WP095 Rev C 5/5/2021
